CHUNLAN FRD23 - Page 25

Exploded view & dismantling sequence of parts
- 23 -
VIII. Exploded view and dismantling sequence of outdoor unit of FR(D)95, FR(D)125/S,
FR(D)100-B, FR95-C and FR125-C/S

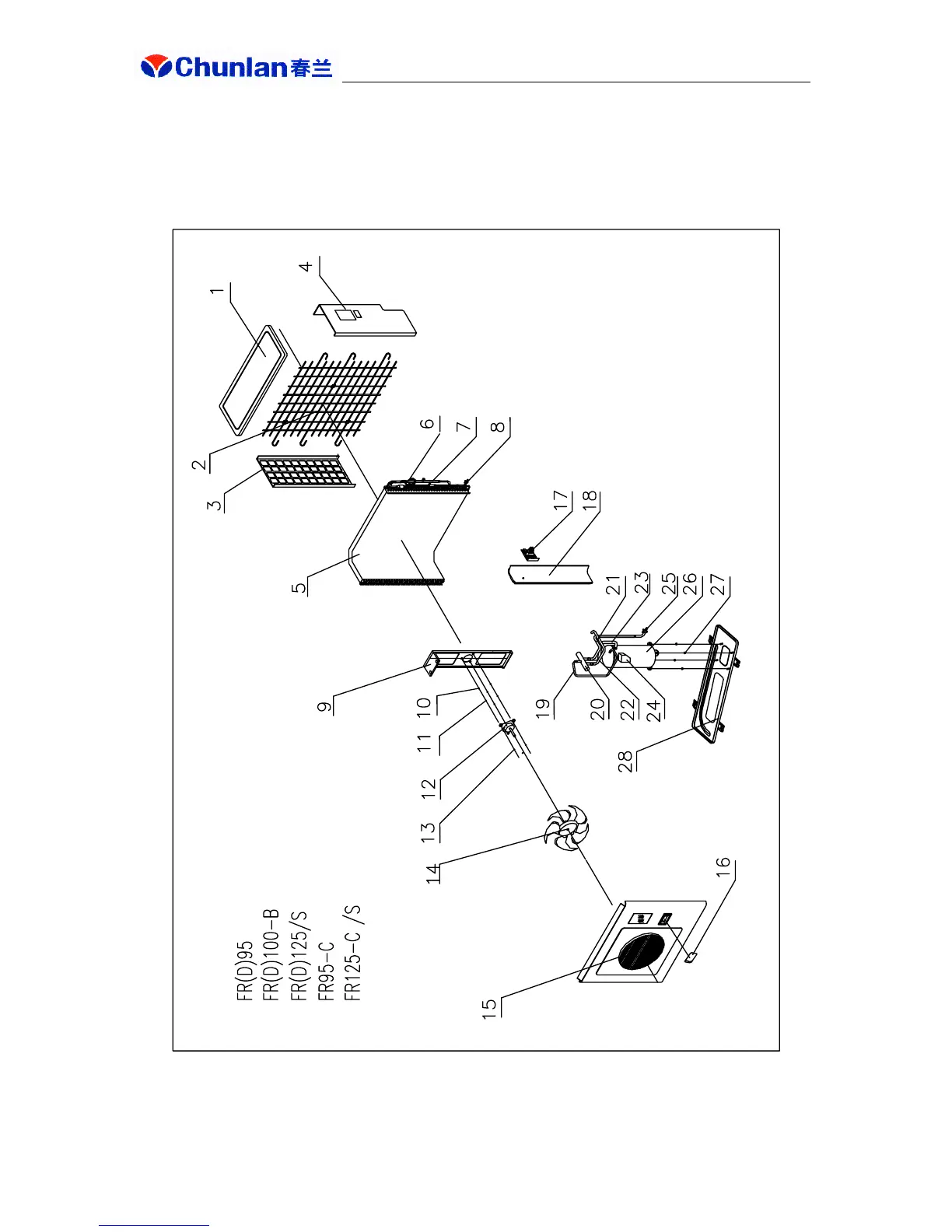

1. Exploded view of outdoor unit of FR(D)95, FR(D)125/S, FR(D)100-B, FR95-C &
FR125-C/S
Exploded view of outdoor unit of FR(D)95, FR(D)100-B, FR(D)125/S, FR95-C,
FR125-C/S (example of FR(D)95)
Outdoor unit
