Installation
- 70 -

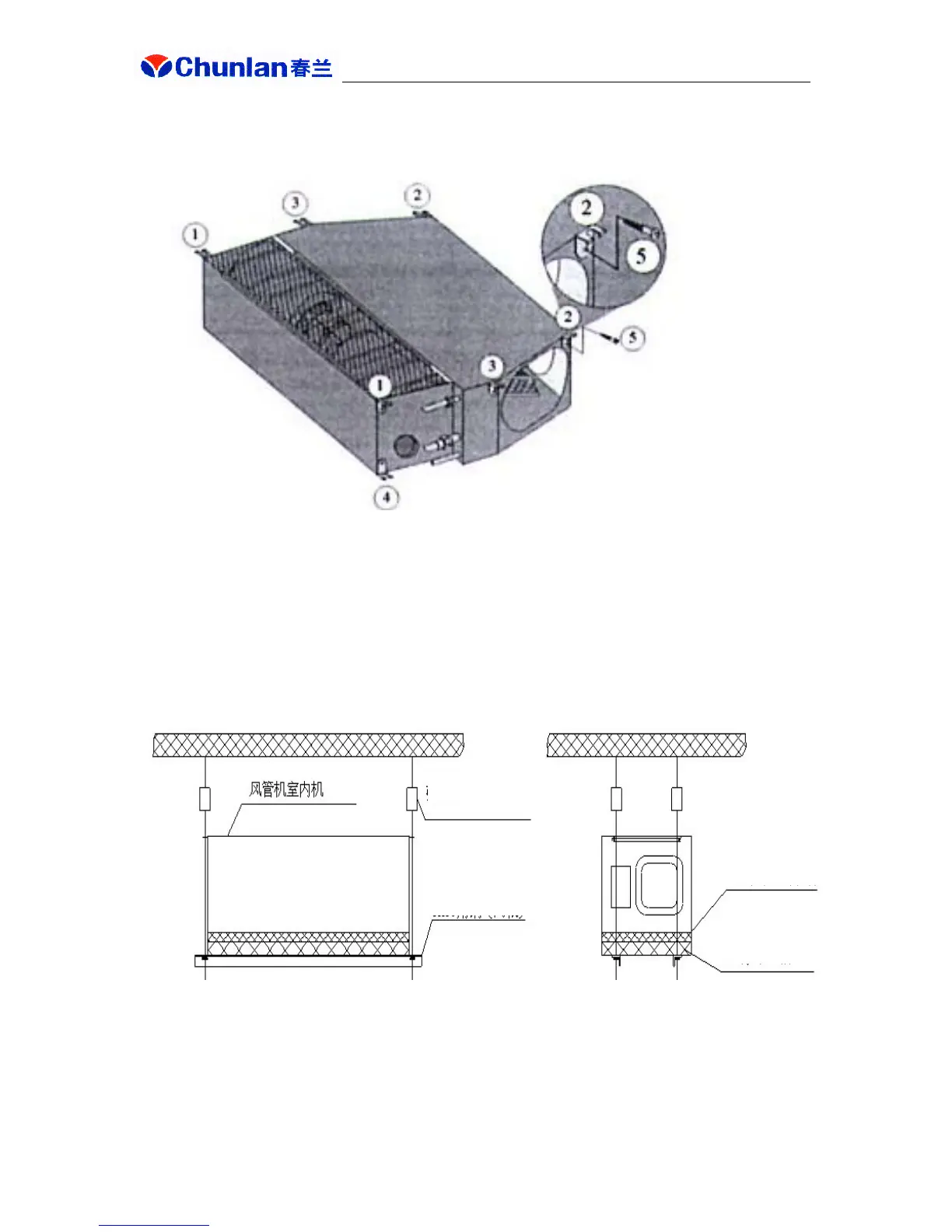

3. Installation mode for indoor unit
(1) Installation mode for FR95-C and FR125-C/S (based on upper return air)
● Determine positions of lifting hooks
As shown above, ①, ②, ③ and ④ are lifting hook installation positions for FR95-C and
FR125-C/S. Suitable positions can be selected to needs. Just select one out of ② and ③. ⑤
refers to the tapping screw to fix lifting hook on indoor unit.
● Use 4 M10 expansion bolts to fix lifting hook on bearing mounting face.
(2) Installation mode for other models (based on FR180/S and FR260/S)
The following is an ideal installation mode.
● According to size of machine, use 4 or 6 M10 bolts and associated nuts, flat washers and
spring washers to fix installation support on indoor unit mounting strip;
● According to size of machine, use 4 or 6 M10 expansion bolts to fix the installation
support on bearing mounting face;
Spring dampers (4)
5
