Before the installation is completed, do not abandon the accessories needed in installation.
Combinations
• The connection kit is special used for third party air handling units. Cannot connect to other indoor unit.
• Please according to the following table to select the connection kit model.
Table1: Total capacity of indoor unit:
Connection kit The capacity of the air handing unit (kW) The quantity of the air handing unit
AH1-280A ≤28kW 1
AH1-560A 28kW<Capacity≤56kW 1
(2) Inspection upon delivery
Inspection item Inspection column
If the electric box cover is installed
If the installation specication is transferred to the customer
Inspection item
Pay much attention to the following during installation. Check them again after completion.
(1) Inspection items after installation
Inspection item Defect Inspection column
If the installation of connection kit is secure ? Falling off, vibration and noise
If gas leakage inspection is completed ? No heating/cooling
If complete insulation is achieved
(refrigerant piping and tubing connections) ?
Water leakage
If the voltage of the power supply is
consistent with that on the nameplate ?
Out of service, burnt
If there is improper wiring or piping ? Out of service, burnt
If there is construction without grounding ? Danger in electric leakage
If the thickness of the wire is as specied ? Out of service, burnt

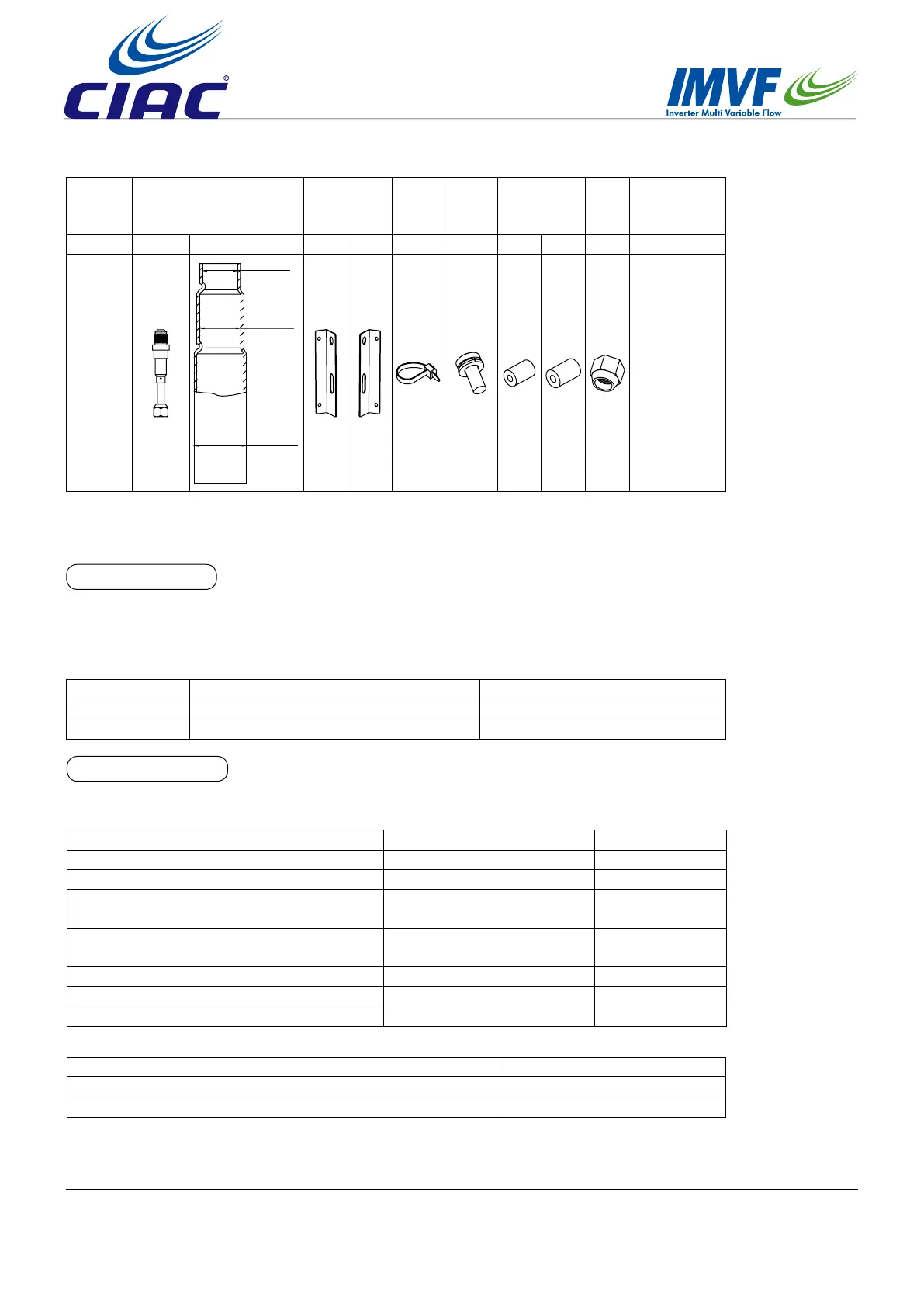

AH1-
560A
Variable diameter suspending clip screw
Thermal
insulation
pipe
Nut Specication
Quantity 2 2 2 2 8 8 2 2 2 1
Shape
Ø15.88
Ø12.7
inner
diameter
Ø22.4
inner
diameter
Ø25.6
outer
diameter
Ø28.58
