CIAC IMVF Series - General Information

1

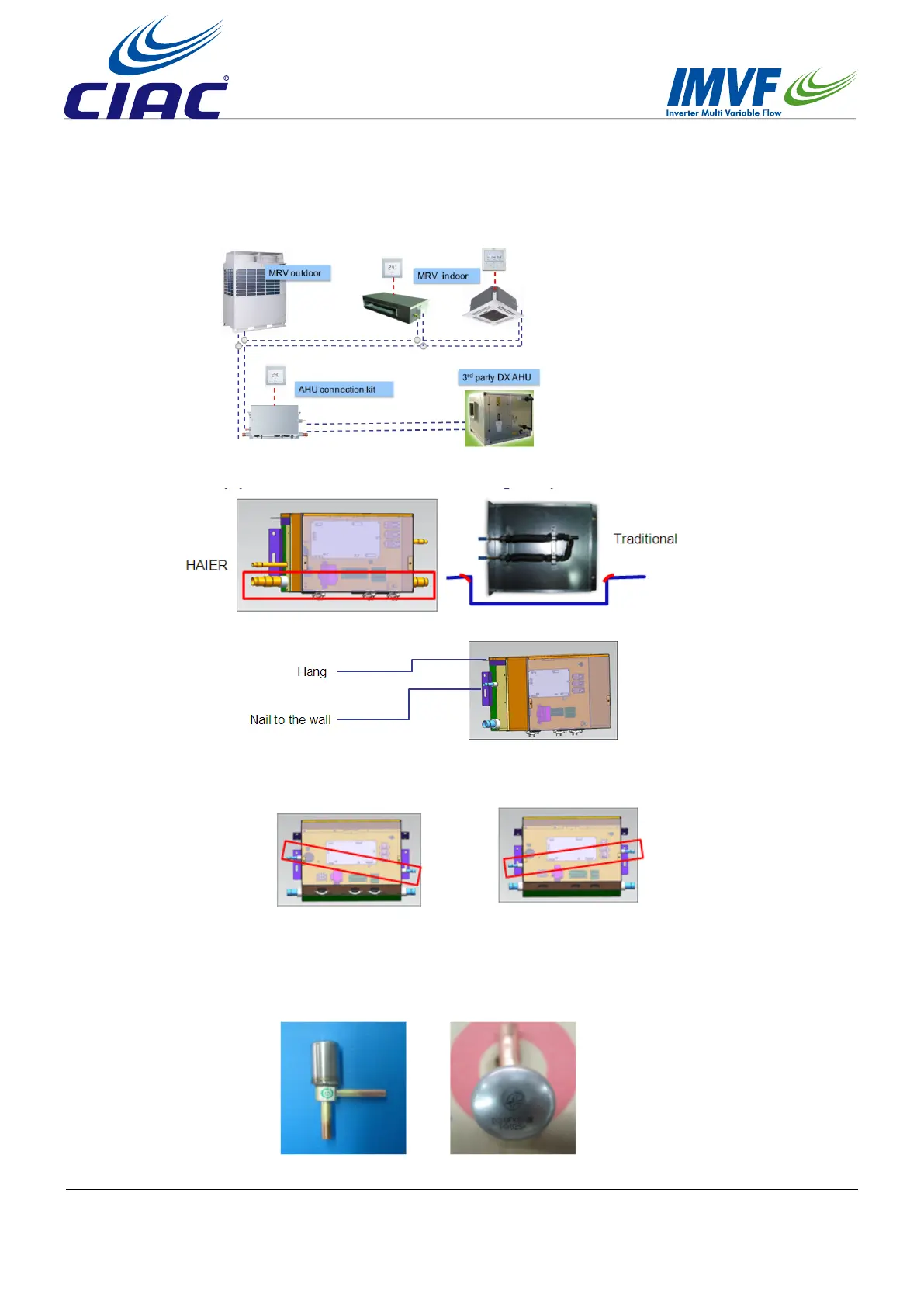

1. General information
1.1 Function:
Thought AHU valve box, can realize the CIAC IMVF outdoor unit connect with third party DX air handling units. As the folowing gure
1.2 Feature:
(1) EXV part and control part integration, easy for translation and installation. Gas pipe is integrated into
the valve box.
(2) Optional insttion location: can choose lting or nailed to the wall
(3) Control box location changeable :
Control box can be separately with EXV box.(2 meter)
Control box can be front or back of EXV box, easy installation.
(4) Broad capacity: 5-20HP
(5) High Compatible:
Same PCB board with IMVF indoor, easy operation and service.
Same wired controller can be used with IMVF indoor unit such as YR-E16,YR-E17 and YR-E14
(6) Reliable EEV : EEV is supplied by FUJIKOKI.
