<Notes>
• Please do not let any type of gas other than the specied refrigerant go into the refrigeration system;
• In case of refrigerant leakage during operation, please replace the gas. (Fill the refrigerant at the outdoor unit)
Paste the refrigerant oil here
Torque spanner
Spanner
Pipe joint
Cone nut

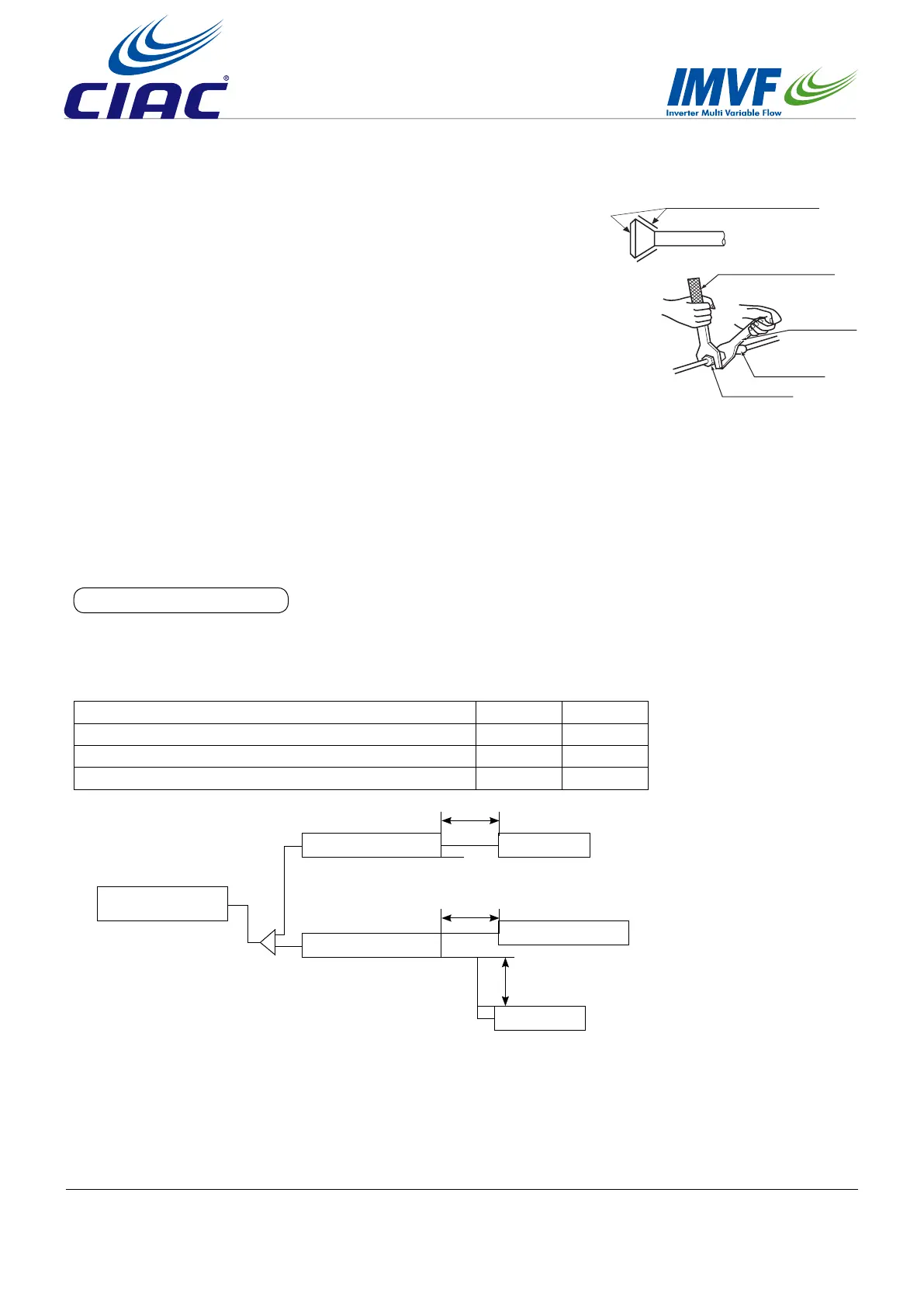

Fig.1
Select piping material
• Make sure both the internal surface and external surface of the pipes are intact and are free from harmful
contaminants such as sulphur, oxide, foreign matter, cutting powder, grease and water.
• Please use the following materials for refrigerant pipe.
connection kit AH1-280A AH1-560A
Connection kit-indoor max. single pipe length /m 5 5
Connection kit- indoor max. drop /m 5 5
Connection kit- electrical box max. distance 5 5
• The branching pipe for the pipe must have refrigerant branching suite. For selection of refrigerant branching
suite and max. height drop between indoor units, please refer to the installation instructions or technical data
attached to the outdoor unit.
Outdoor
Connection Kit
Connection Kit
Indoor
Electrical box
Max. length 5m
Max. length 5m
The high-pressure gas pipe, suction gas pipe, liquid pipe must be provided
with reliable thermal insulation. In the absence of thermal insulation, liquid
leakage may happen.
The outdoor unit is already lled with refrigerant.
To connect the pipes to connection kit or remove them from connection kit,
do use both spanner and torque wrench, as shown in the Fig.1.
Apply refrigerant oil to inside and outside of the are. Screw it for 3 to 4
rounds with hands and then tighten it.
Determine the tightening torque. (Excessive tightening may damage the nuts
and hence cause leakage)
Check the connecting pipes for gas leakage and then x the thermal
insulation, as shown in the in the Fig.2
Only use sealing gasket to wrap the part jointing between the gas pipe and
thermal insulation.
For pipe cutter and are tool, please use R410A special tools.
Indoor
Max. height drop 5m
