2. DIMENSIONAL SIZES AND TECHNICAL SPECIFICATIONS

2.1 USE DESTINATION

This refrigerating equipment is exclusively enabled for the display and sale of confectionery and delicatessen

products. It is also possible to display small sized packaged dairy products and sliced packaged cold cuts, positioned

in such a way not to exceed the load limits indicated in the manual.

The manufacturer does not answer for damages caused to things, persons or the same equipment due to product

preservation different to that speci ed above.

2.2 Equipment dimensions

2.2.1 Series 900

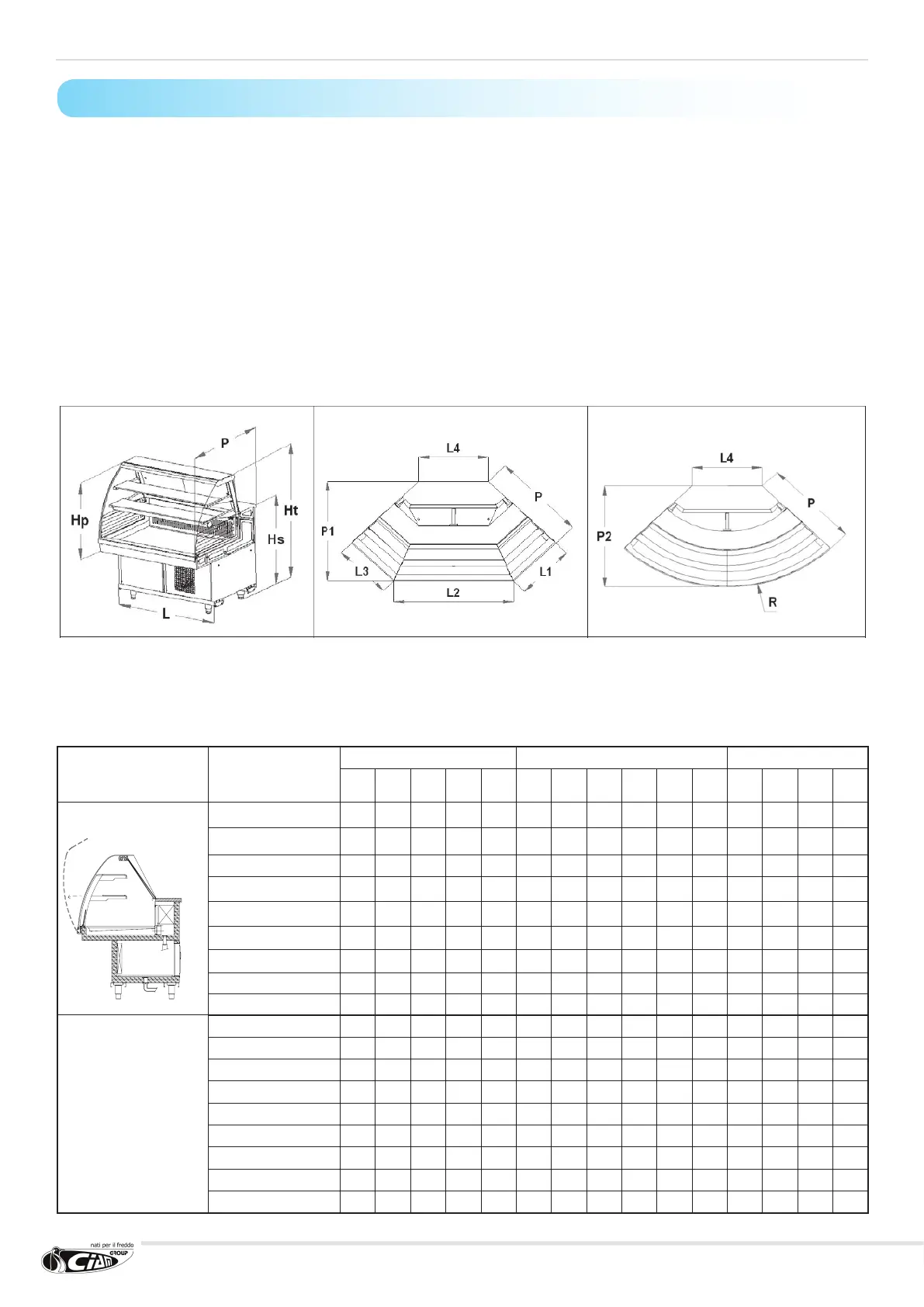

The sizes highlighted in the following two paragraphs represent, respectively: Hp=plate height – Hs=service counter height–

Ht=total height – P=depth display cabinet – L=length display cabinet – P1=depth shaped display cabinet – L4=length rear side

– L1=L3=length front oblique sides – L2=length front side – P2=depth spherical display cabinet – R=display cabinet radius.

MODEL

LINEAR SHAPED ANGLE SPHERICAL ANGLE

(mm)

V9C1.....100 966 1000 789 931 1343 - - - - - - - - - -

V9C1.....CE100 996 1000 789 931 1343 - - - - - - - - - -

V9C1.....150 966 1500 789 931 1343 - - - - - - - - - -

V9C1.....CE150 996 1500 789 931 1343 - - - - - - - - - -

V9C1.....200 966 2000 789 931 1343 - - - - - - - - - -

V9C1.....CE200 996 2000 789 931 1343 - - - - - - - - - -

V9C1.....250 966 2500 789 931 1343 - - - - - - - - - -

V9C1.....300 966 3000 789 931 1343 - - - - - - - - - -

V9C1.....Ap90 - - 789 931 1343 966 1108 601 1198 601 682 - - - -

V9F(V)(R) C1 10 924 1000 790 940 1343 - - - - - - - - - -

V9F(V)(R) C1 CE 10 954 1000 790 940 1343 - - - - - - - - - -

V9F(V)(R) C1 15 924 1500 790 940 1343 - - - - - - - - - -

V9F(V)(R) C1 CE 15 954 1500 790 940 1343 - - - - - - - - - -

V9F(V)(R) C1 20 924 2000 790 940 1343 - - - - - - - - - -

V9F(V)(R) C1 CE 20 954 2000 790 940 1343 - - - - - - - - - -

V9F(V)(R) C1 25 924 2500 790 940 1343 - - - - - - - - - -

V9F(V)(R) C1 30 924 3000 790 940 1343 - - - - - - - - - -

V9F(V)(R) C1 Ap90 - - - - - 924 1065 584 1162 584 682 - - - -

Unable to insert all codes present in the catalogue in the following table, the products have been grouped together

in families which completely represent, with regard to dimensional features, the entire range with that code. As an

example, considering the family with codes “V9C1.....150”, they have the same dimensional features as:

- V9C1FLRS150 - V9C1MNRS150 - V9C1PLRS150F1 - V9C1PLRS150F2 -

- V9C1FLRV150 - V9C1MNRV150 - V9C1PLRV150F1 - V9C1PLRV150F2
