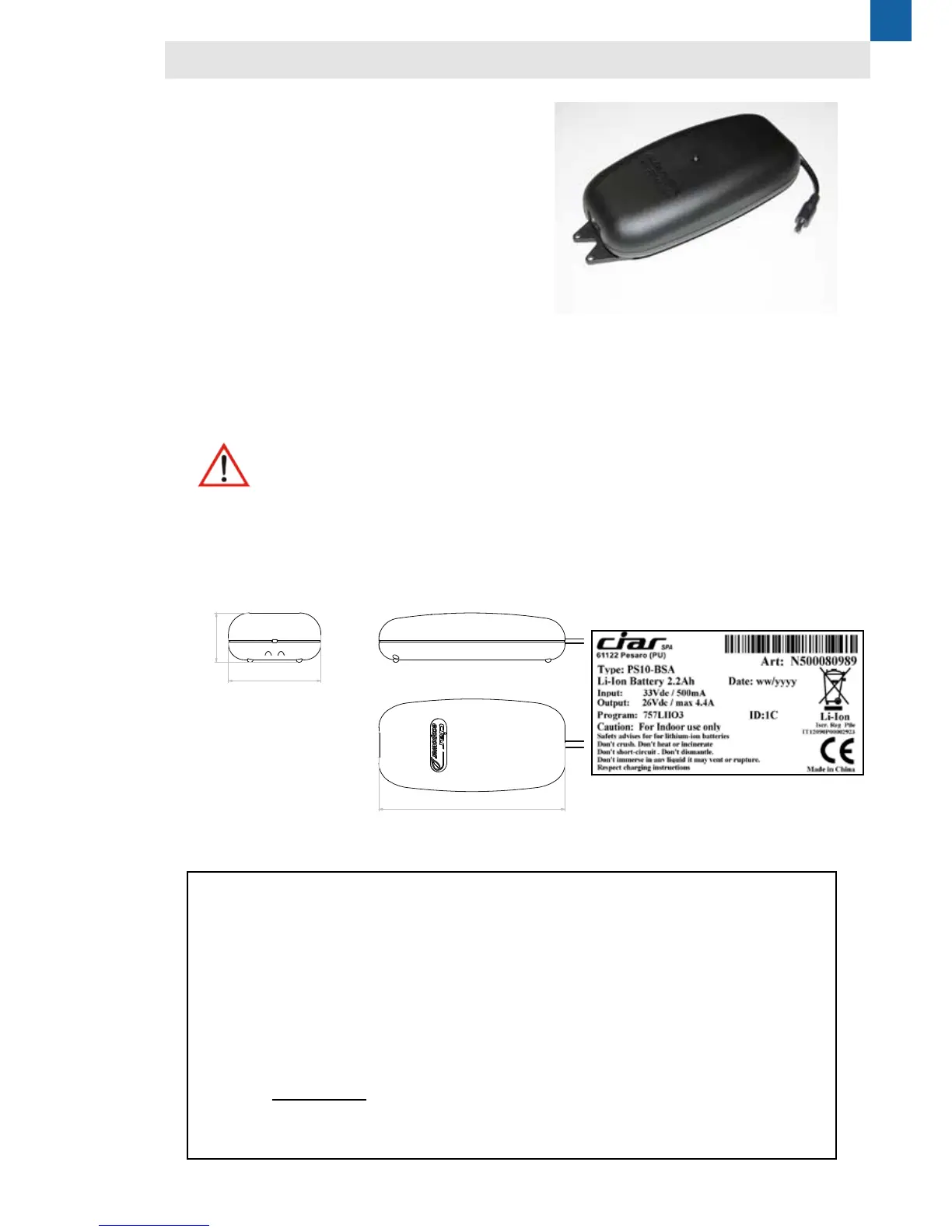

Ciar PS10BSA - Characteristics of PS10 BSA 2.2 Ah Li-Ion Battery

page 17
ENG
label for PS10BSA 2.2Ah
Technical characteristics:
Input voltage: 29 ÷ 33Vdc
Input current: 500mA
Output voltage 26Vdc
Battery capacity: 2.2Ah
Battery type: Li-Ion
Charge time: Approx. 6 hours
(using the PS05 or PS10 power supply unit provided)
Life cycles: 300 (minimum number of cycles)
Work cycle coupled to all Ciar actuators: 2 min. ON 5 min. OFF
Charge duration:
The number of complete work cycles depends highly on the intensity of use
and environmental conditions. Refer to Table 1 for an example of a cycle calculation.
Warning:
When using for the rst time, fully charge the batteries. A full charge is indicated by the green led near
to the charger connection (see “Chapter: Instruction for PS10BSA recharging” of this manual).
Characteristics of battery type: PS10BSA 2.2Ah - Li-Ion
46
87
175mm
Chair CF56LR03
Weight on chair: 120kg including padding
average current consumed from the Relax to the Lift position: 2A for a duration of 50 seconds
average current consumed from the Lift to the Relax position: 1.2A for a duration of 43 seconds
cycle calculation: 2.2Ah x 3600 sec. = 7920 A sec.
2A x 50 sec. = 100A sec.
1.2A x 43 sec. = 51A sec.
7920 A sec.
Table 1
(100+51)A sec.
= 52 cycles
Example of calculation of autonomy mechanism CIAR
