EN-11 POWERCIAT LX ST/HE/XE

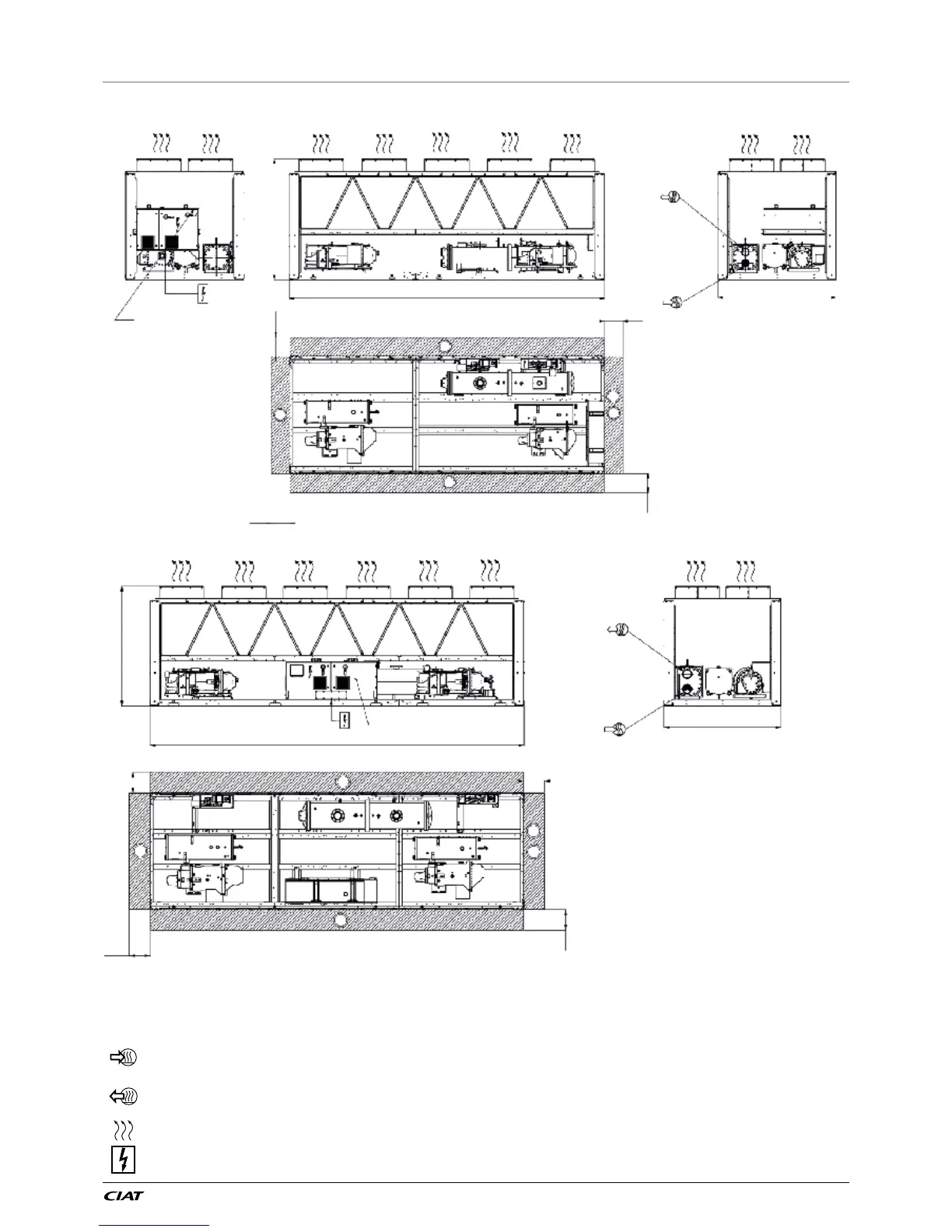

3 - DIMENSIONS, CLEARANCES
3.3 - LX 1528
2
1
1
1
1
Power And control
Electrical
box
1500
2200
1500
1500
2253 HT
5992 Ht
2297 HT
3.4 - LX1858 to 2308
Power electrical Box
1500
2200
1500
1500
2253 HT
7186 Ht
2297 HT
2
1
1
1
1
Key
NOTES:
Drawings are not contractually binding.
Before designing an installation, consult the certied
dimensional drawings, available on request.
For the positioning of the xing points, weight distribution
and centre of gravity coordinates please refer to the
dimensional drawings.
If the installation includes several units or if this (these)
is (are) close to walls, please refer to chapters 3.12
“Multiple chiller installation” and 3.13 “Distance to the
wall” of this document to determine the space required.
All dimensions are given in mm.
a
Required clearances for maintenance (see note)
b
Recommended space for evaporator tube removal
Water inlet for standard unit
For the Brine and evaporator options with one pass less or one pass
more, refer to the certied dimensional drawing.
Water outlet for standard unit
For the
Brine and evaporator options with one pass less or one pass
more
, refer to the certied dimensional drawing.
Air outlet – do not obstruct
Power supply and control connection
