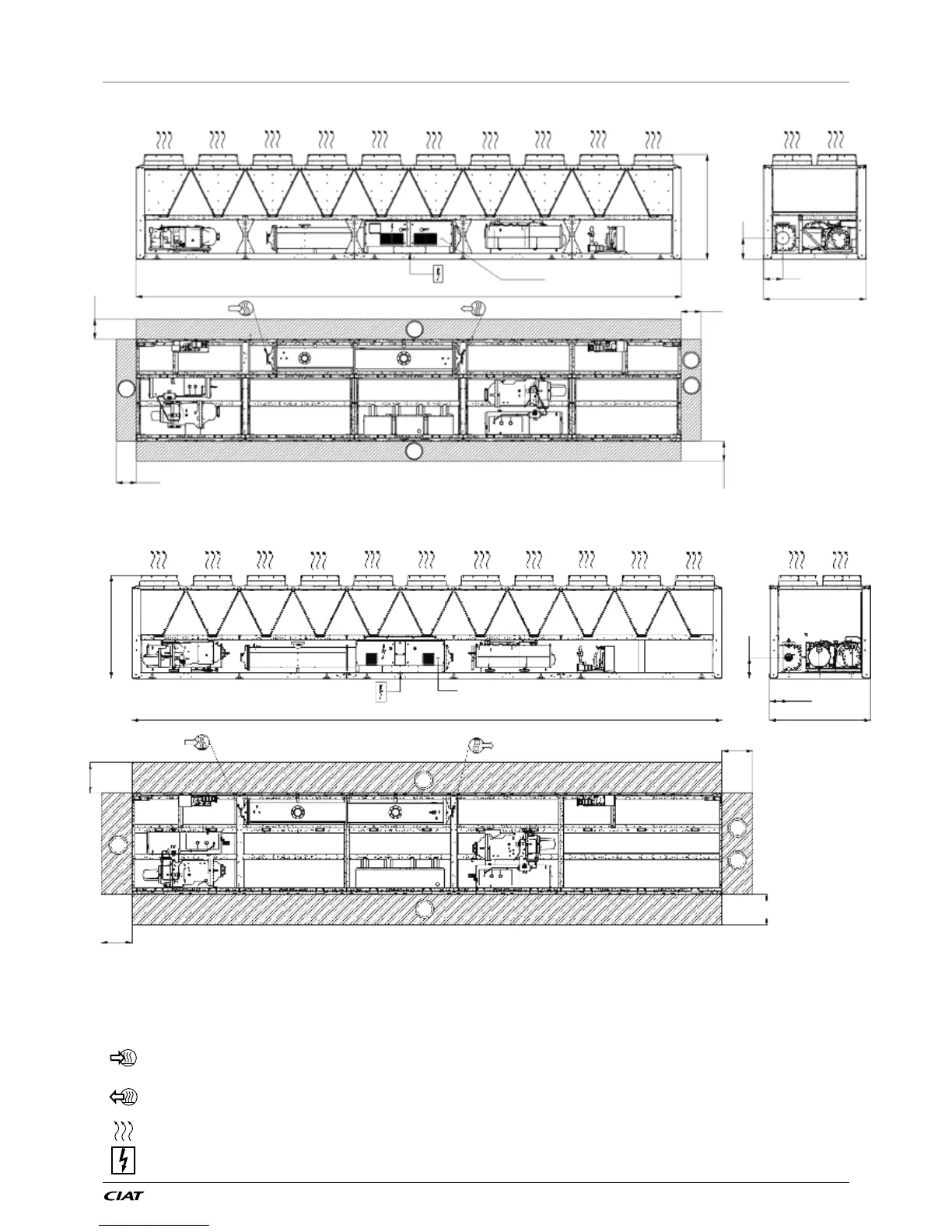

EN-13 POWERCIAT LX ST/HE/XE
3.7 - LX 3428 to 4408
2253 HT
419
467
2297 HT
11 962
1500
1500
1500
2200
Power and control
electrical box
2
1
1
1
1
3.8 - LX 4608
2253 HT
419
467
2297 HT
13156 HT
1500
1500
1500
2200
Power And control electrical box
1
2
1
1
1
Key
NOTES:
• Drawings are not contractually binding.
• Before designing an installation, consult the certied
dimensional drawings, available on request.
• For the positioning of the fixing points, weight
distribution and centre of gravity coordinates please
refer to the dimensional drawings.
• If the installation includes several units or if this (these)
is (are) close to walls, please refer to chapters 3.12
“Multiple chiller installation” and 3.13 “Distance to the
wall” of this document to determine the space required.
All dimensions are given in mm.
a
Required clearances for maintenance (see note)
b
Recommended space for evaporator tube removal
Water inlet for standard unit
For the Brine and evaporator options with one pass less or one pass
more, refer to the certied dimensional drawing.
Water outlet for standard unit
For the
Brine and evaporator options with one pass less or one pass
more
, refer to the certied dimensional drawing.
Air outlet – do not obstruct
Power supply and control connection
3 - DIMENSIONS, CLEARANCES
