POWERCIAT LX ST/HE/XE EN-12

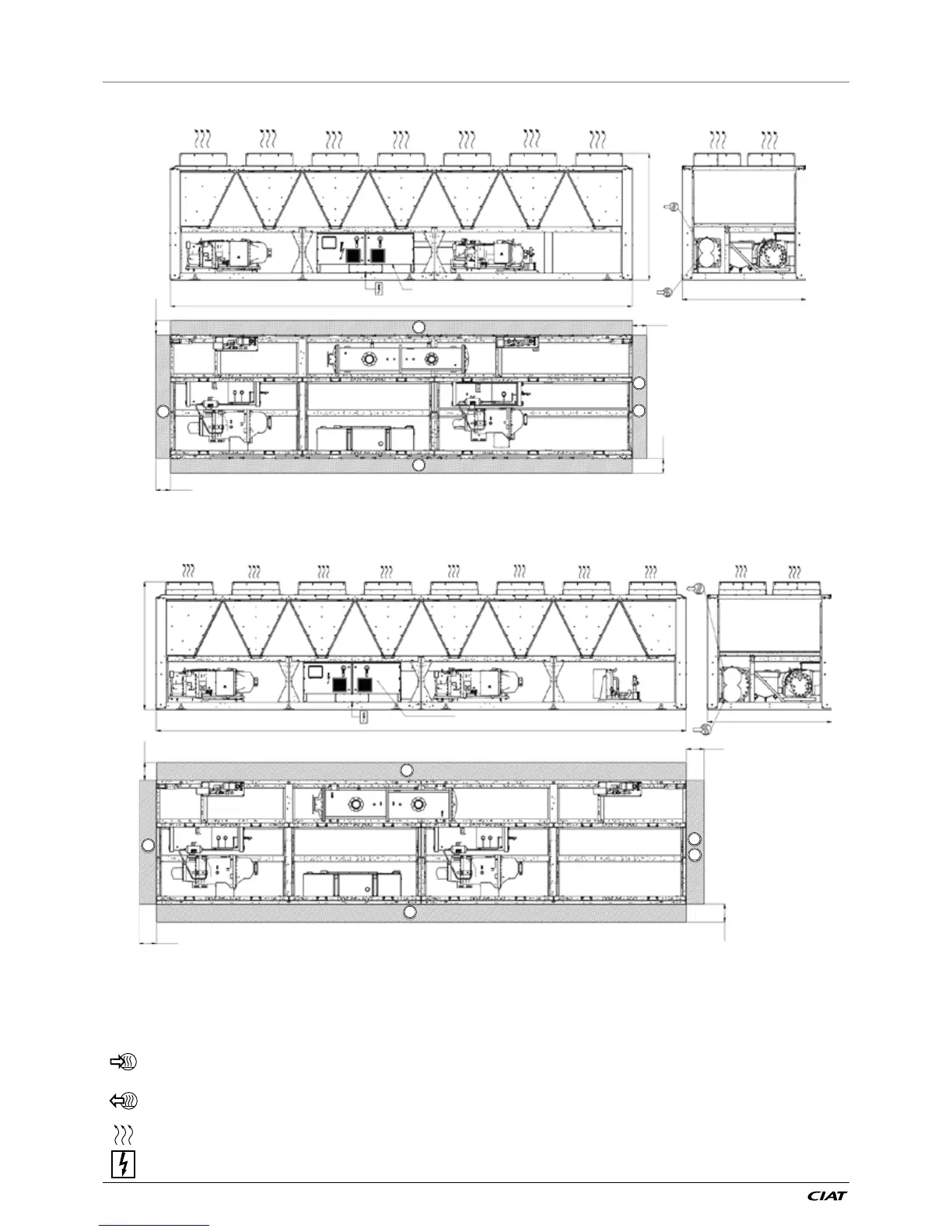

3.5 - LX2528 to 2628
Power And control electrical box
8380 HT
2253 HT
1500
1500
1500
2200
2297 HT
1
1
1
2
1
3.6 - LX 3028
Power And control electrical box
9574 HT
2253 HT
1500
1500
1500
2200
2297 HT
1
1
1
2
1
Key
NOTES:
• Drawings are not contractually binding.
• Before designing an installation, consult the certied
dimensional drawings, available on request.
• For the positioning of the xing points, weight distribution
and centre of gravity coordinates please refer to the
dimensional drawings.
• If the installation includes several units or if this (these)
is (are) close to walls, please refer to chapters 3.12
“Multiple chiller installation” and 3.13 “Distance to the
wall” of this document to determine the space required.
All dimensions are given in mm.
a
Required clearances for maintenance (see note)
b
Recommended space for evaporator tube removal
Water inlet for standard unit
For the Brine and evaporator options with one pass less or one pass
more, refer to the certied dimensional drawing.
Water outlet for standard unit
For the
Brine and evaporator options with one pass less or one pass
more
, refer to the certied dimensional drawing.
Air outlet – do not obstruct
Power supply and control connection
