Operation

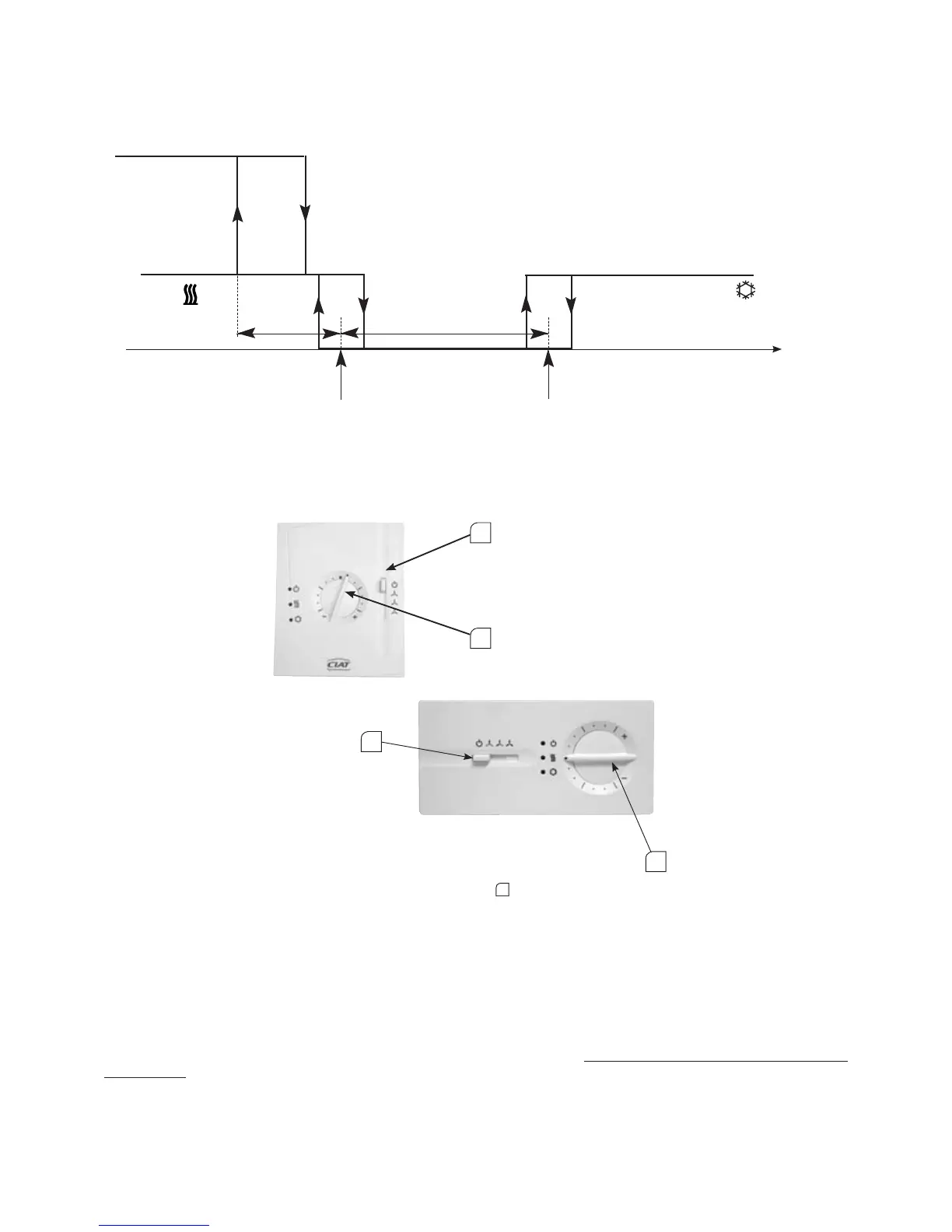

On/off control.
* See possible applications for electric heater management (Section entitled: Electric heater management)
-3°K
Electric heater*
Valve
Valve
Neutral zone 4/6°K
Room or return air
temperature
Hot setpoint
19°C
Cold setpoint
23 or 25°C
Operating instructions
Setting the setpoint temperature:
The setpoint temperature can be set by adjusting the ± on the dial
1
- On the comfort setting, at the centre point, the hot setpoint is 19°C and the cold setpoint is 23°C or 25°C.
The setpoint values can be set within a range of ± 6°C.
- The neutral zone is 4 or 6K depending on the setting selected.
- On the economy setting, both the hot and cold setpoints are automatically offset by 5°C in relation
to the comfort setpoint indicated by the position on the dial
- The frost protection setpoint is set to 8°C
Setting the fan:
- The user may choose between 3 manual fan speeds by using the button
Special information for controlling an electric
heater button:
- If the user selects the low fan speed, the electric heating cycle rate is limited to 50%.
- If the user selects the medium speed, the cycle rate is limited to 80%.
Limiting the cycle rate prevents the appliance from overheating.
Wall-mounted unit
with
dial
1
2
Built-in unit (connected to
the fan coil unit)
with dial
1
2
