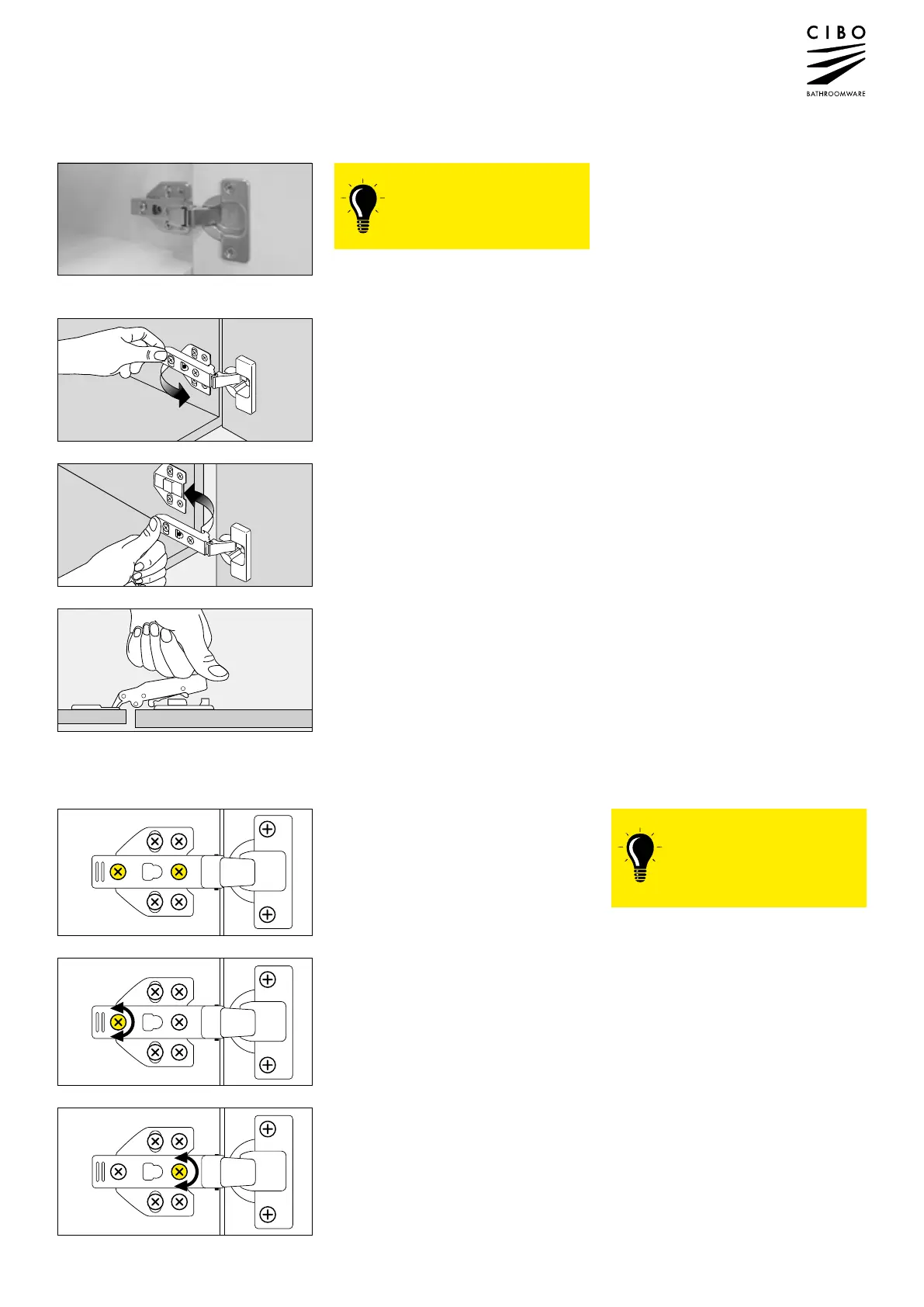

Cibo Vanity Cabinet - Vanity Unit Type B: Door Procedures; Door Removal and Replacement; Door Hinge Alignment Adjustment

8
To Remove Doors
Locate button at back of top hinge and press.
Hold base of door and pull forward to disengage top hinge.
Repeat with bottom hinge.
To Replace Doors
Line up hinges with corresponding hinge plates.
At base of hinge is a small metal rod that must be
lined up with cradle arms of hinge-plate.
Once hinge is in place, push back of hinge
down towards the hinge-plate.
Hinge will snap down and engage.
Vanity Unit Type B
Door Removal/Replacement (responsibility of the installer)
b This screw moves the hinge in or out.
Clockwise direction = moves the hinge towards the vanity
Anticlockwise direction = moves the hinge away from the vanity
b
1
A
B
a This screw moves the hinge left or right.
Clockwise direction = moves the hinge left
Anticlockwise direction = moves the hinge right.
(The opposite occurs when the hinge is tted the other way around)
a
1
A
B
‘Uncapped’ door hinge
During installation, it is
advisable to remove door(s)
from cabinet. To do this,
unclip all hinges on each door.
‘Uncapped’ Door/Hinge Adjustment (responsibility of the installer)
1 There are two primary
screws that can be adjusted
to align the door.
1
1
A
B
Locate the hinges of the
door to be adjusted. It may
be necessary to adjust all
hinges in order to achieve
correct alignment.
