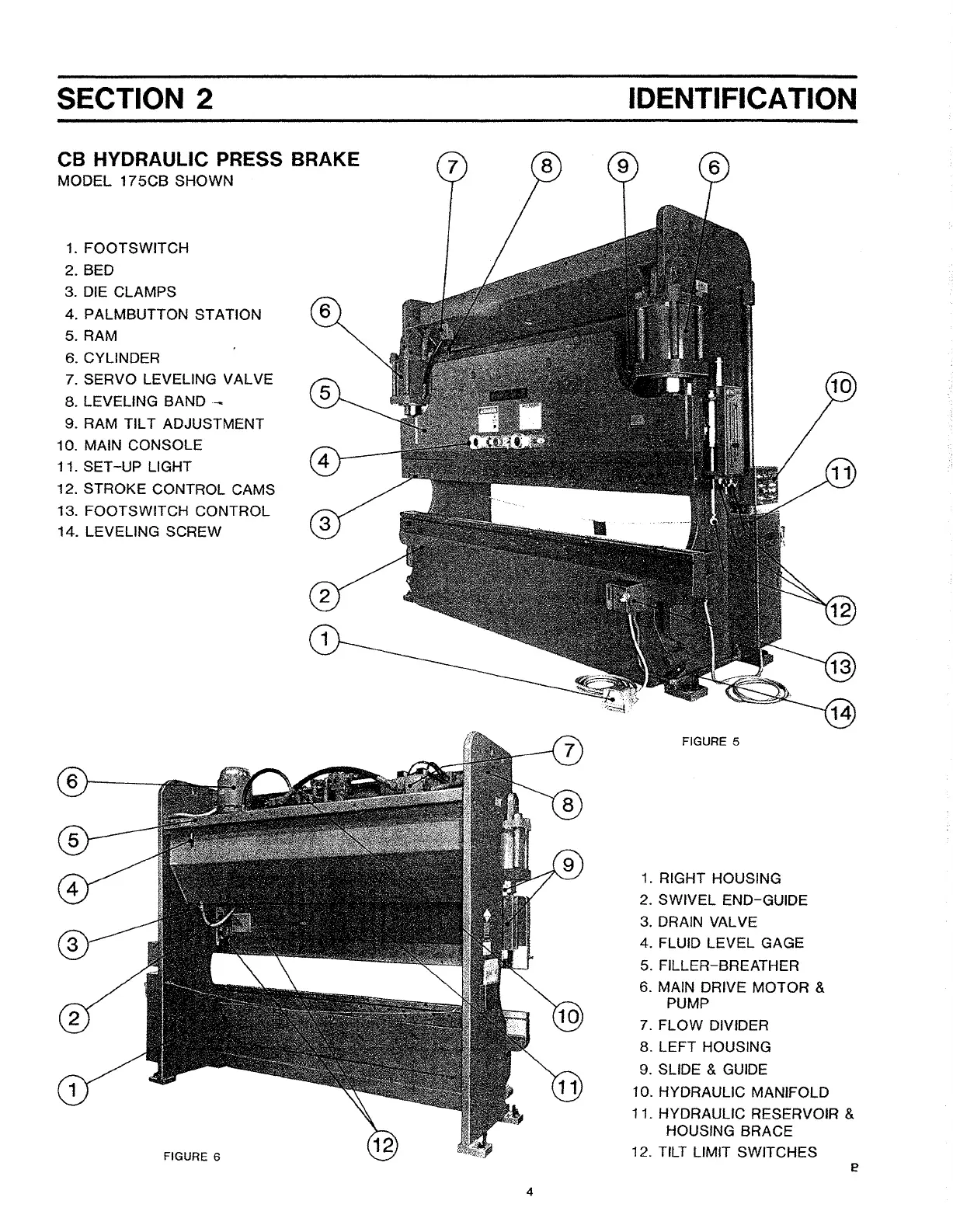

Cincinnati 175 CB - Section 2 Identification

CB HYDRAULIC PRESS BRAKE
MODEL 175CB SHOWN
SECTION 2
1. FOOTSWITCH
2. BED
3. DIE CLAMPS
4. PALMBUTTON STATION
5. RAM
6. CYLINDER
7. SERVO LEVELING VALVE
8. LEVELING BAND --
9. RAM TILT ADJUSTMENT
10. MAIN CONSOLE
11. SET-UP LIGHT
12.
STROKE CONTROL CAMS
13.
FOOTSWITCH CONTROL
14. LEVELING SCREW
6
4
IDENTIFICATION
10
FIGURE 5
1. RIGHT HOUSING
2. SWIVEL END-GUIDE
3. DRAIN VALVE
4. FLUID
LEVEL GAGE
5. FILLER-BREATHER
6. MAIN DRIVE MOTOR &
PUMP
7. FLOW DIVIDER
8. LEFT HOUSING
9. SLIDE & GUIDE
10. HYDRAULIC MANIFOLD
11. HYDRAULIC RESERVOIR
&
HOUSING BRACE
12. TILT LIMIT SWITCHES
