22
8000 Series Mobile Computer Reference Manual
1.7.2 4-SLOT BATTERY CHARGER
Below is the 4-Slot Battery Charger.
1) The Battery Charger can be mounted on table or wall. Drill two holes (centers spaced
160 millimeters apart), secure the two supplied screws, and mount the Battery
Charger by sliding over screws.
2) Slide the battery pack into the compartment at a proper angle (30°~45°) so that the
metal contacts on the battery are met with the charging contacts inside the
compartment.
3) Connect the power supply cord to the power receptacle on the charger. Connect the
other end of the power supply cord to a suitable power outlet.
4) Press the power switch on, and the Battery Charger’s LED will be red.
5) While charging, the LED of the battery compartment will be red. When fully charged,
the LED will be green.
Indicator
Status Description
Off Power off Power
Red, solid Power on
Off Battery not ready
Red, solid Charging
Green, solid Charging done
Battery Charging
Red/green, flashing Error occurs

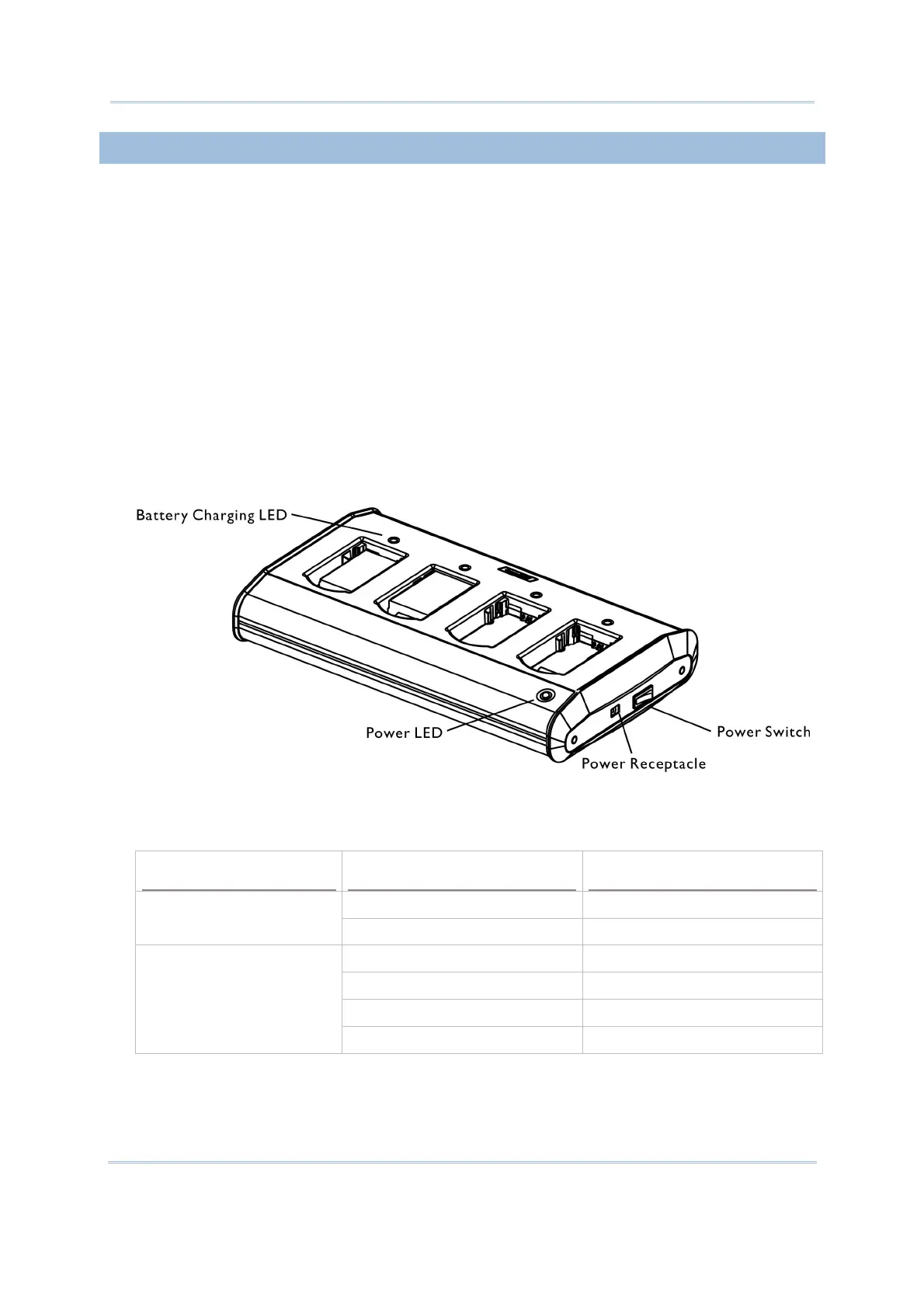

Figure 5: 4-Slot Battery Charger
