Page #15 background image
Einbau- und Betriebsanleitung
Installation and Operating Instructions
Instructions de montage et de service
REact 30 - 80150
10/2018

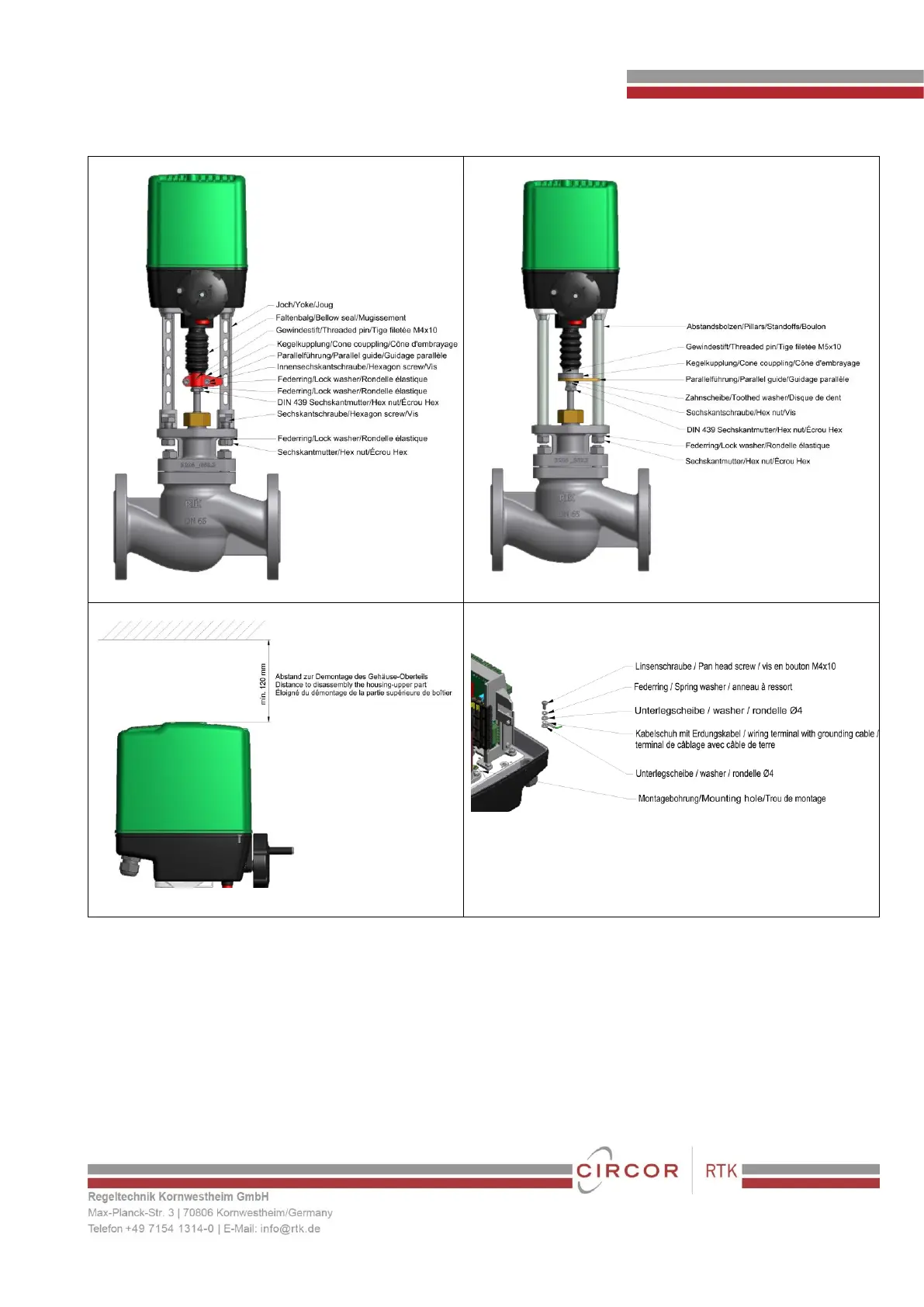

2 Technische Abbildungen
Aufbau auf Armatur - Joch/Mounting on a valve – yoke
Aufbau auf Armatur - Säulen/Mounting on a valve – pillars
Bild 2
Bild 3
Einbau des Antriebes / Installing the actuator / Installation de l'unité
Erdanschluss / Earth connection / raccordement à la terre
Bild 4
Bild 5
