Instruction Manual
RGU-10A, RGU-100A

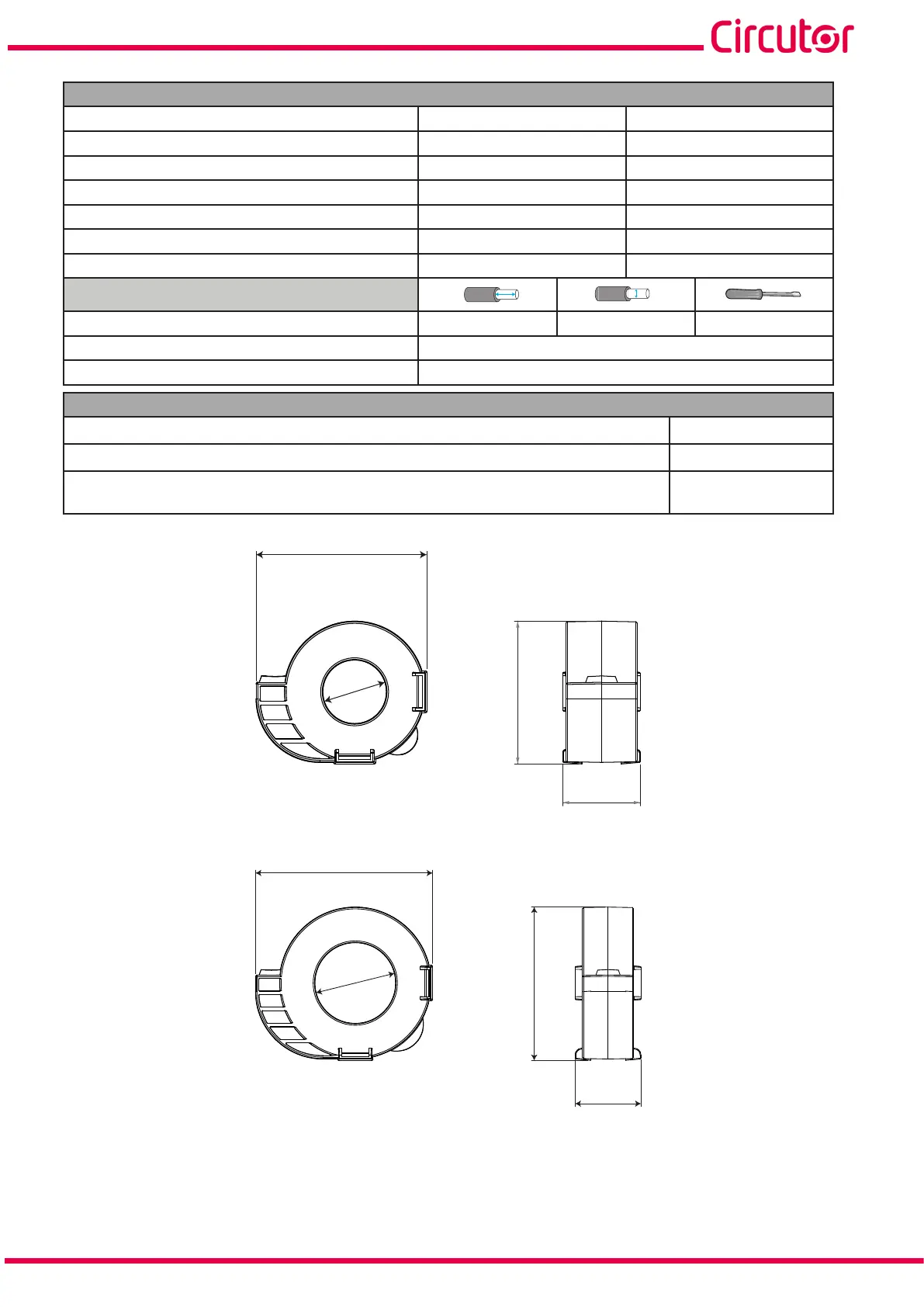

(Continued) Mechanical features
WGC 80 80 4 x 120 mm
2
WGC 110 110 4 x 240 mm
2
WGC 140 140 8 x 185 mm
2
WGC 180 180 8 x 240 mm
2
WGC 220x105 220 x 115 4 x 100 x 10 mm
2
WGC 350x150 350 x 150 8 x 100 x 10 mm
2
WGC 500x200 500 x 200 16 x 100 x 10 mm
2
Secondary connection
S1, S2 5 mm 1.5 mm
2
M5
DIN rail attachment With accessory PA-TC/WG
Enclosure Polycarbonate V0 self-extinguishing
Standards
Instrument transformers -- Part 1: General requirements IEC 61869-1
Instrument transformers - Part 2: Additional requirements for current transformers IEC 61869-2
Insulation coordination for equipment within low-voltage systems - Part 3: Use of coating,
potting or moulding for protection against pollution
IEC 60664-3
Ø
20
53.7
45
24.4±0.2
Figure 38: WGC 20 dimensions (in mm).
ø30
66
57
24.4±0.2
Figure 39: WGC 30 dimensions (in mm).
