Cisco 12000 Series Replacement Instructions

31
Cisco 12000 Series Router Memory Replacement Instructions
78-4338-16
Removing and Installing Line Card Memory

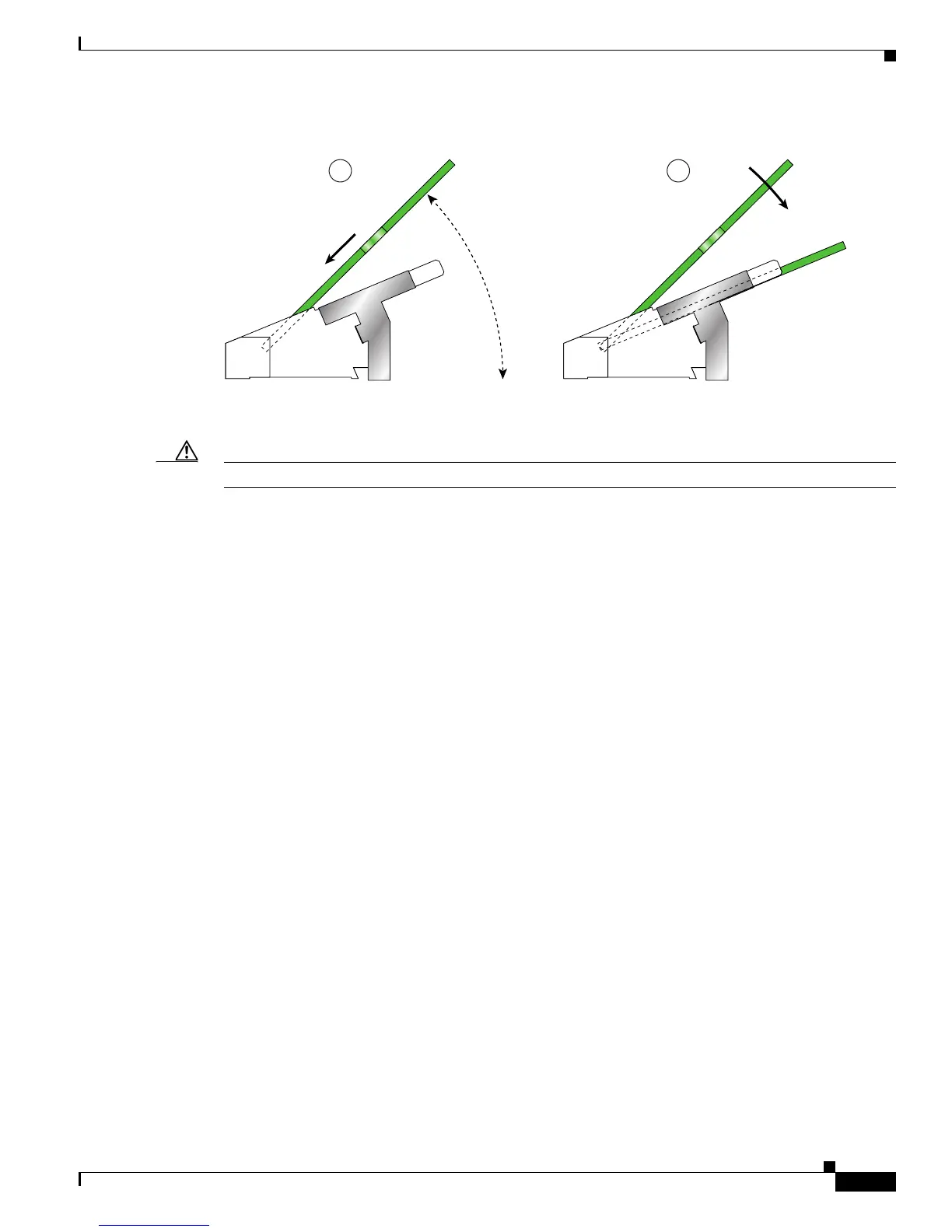

Figure 17 Installing a SODIMM
Step 9
Gently press the SODIMM down using your index fingers, distributing even pressure across the module
until it locks into the tabs. (See Figure 17b.)
Caution Excessive pressure can damage a SODIMM socket.
Step 10 Verify that the release levers are flush against the side of the socket. If they are not, the SODIMM might
not be seated properly.
Step 11 If the module appears misaligned, carefully remove it and reseat it, ensuring that the release lever is flush
against the side of the SODIMM socket.
Step 12 Insert the retainer clip by sliding the clip between the metal strain relief and the latch.
(See Figure 18.)
45
º
66100
a
b
