Installing or Replacing the DRAM SIMM in Cisco 1600 Series Routers 5

Installing or Replacing the DRAM SIMM

Take the following steps to install or replace the DRAM SIMM:

Step 1 If the router has a DRAM SIMM already installed, locate it on the system card. With the

rear panel of the router facing you, the DRAM SIMM is located in the upper left corner

of the system card, as shown in Figure 4. If there is no DRAM SIMM installed the router,

proceed to Step 3 to install a DRAM SIMM in the location shown in Figure 4.

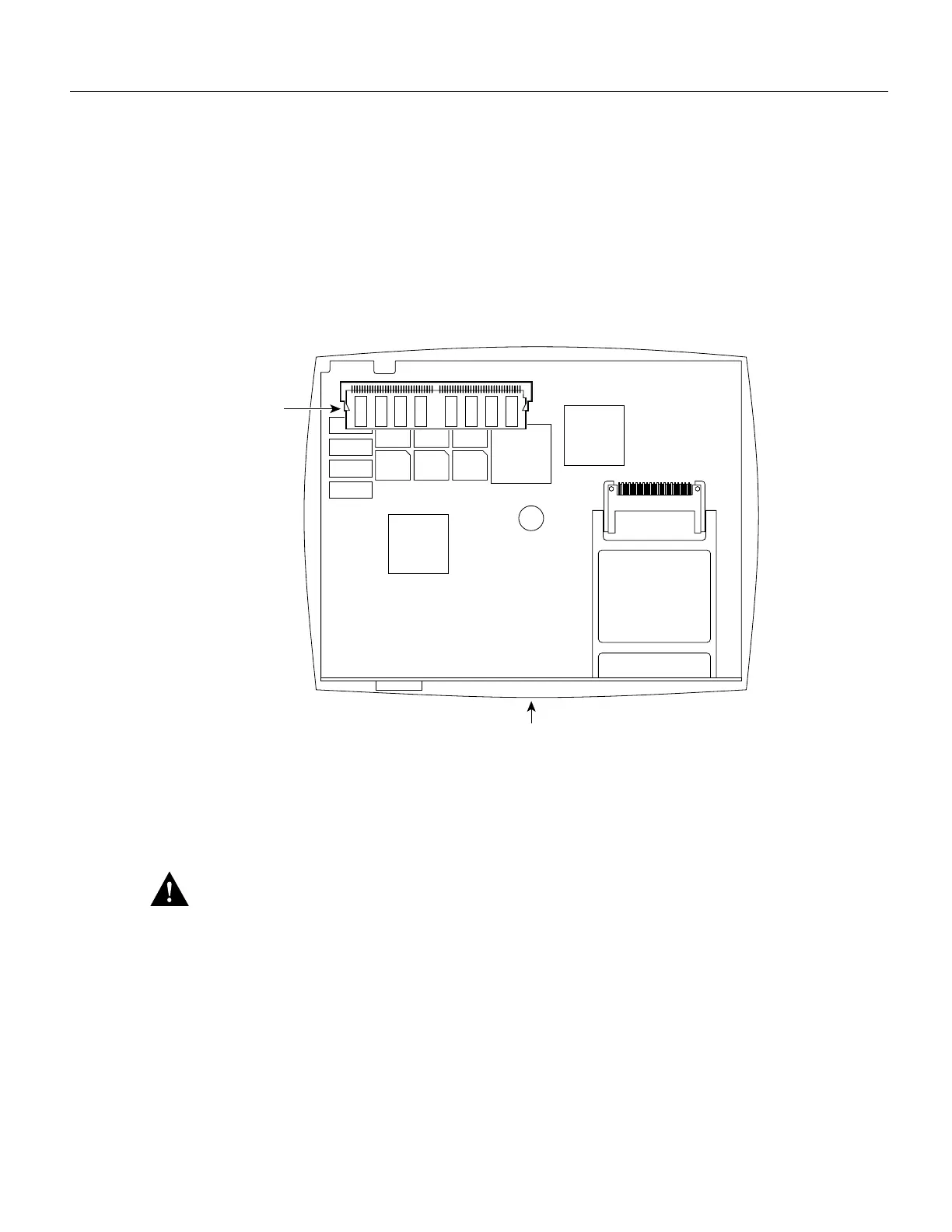

Figure 4 DRAM SIMM Location—Cisco 1600 Series Routers

Step 2

Remove any existing DRAM SIMM. While pulling outward on the tabs to unlatch them,

raise the SIMM to the vertical position and remove it from the SIMM socket.

(See Figure 5.)

Caution To prevent damage, do not push on the center of the DRAM SIMM. Handle the DRAM

SIMM carefully.

H8611

DRAM SIMM

Rear panel of router
