Network Modules for Cisco 2600XM, 3600, and 3700 Series
51
LAN Network Modules

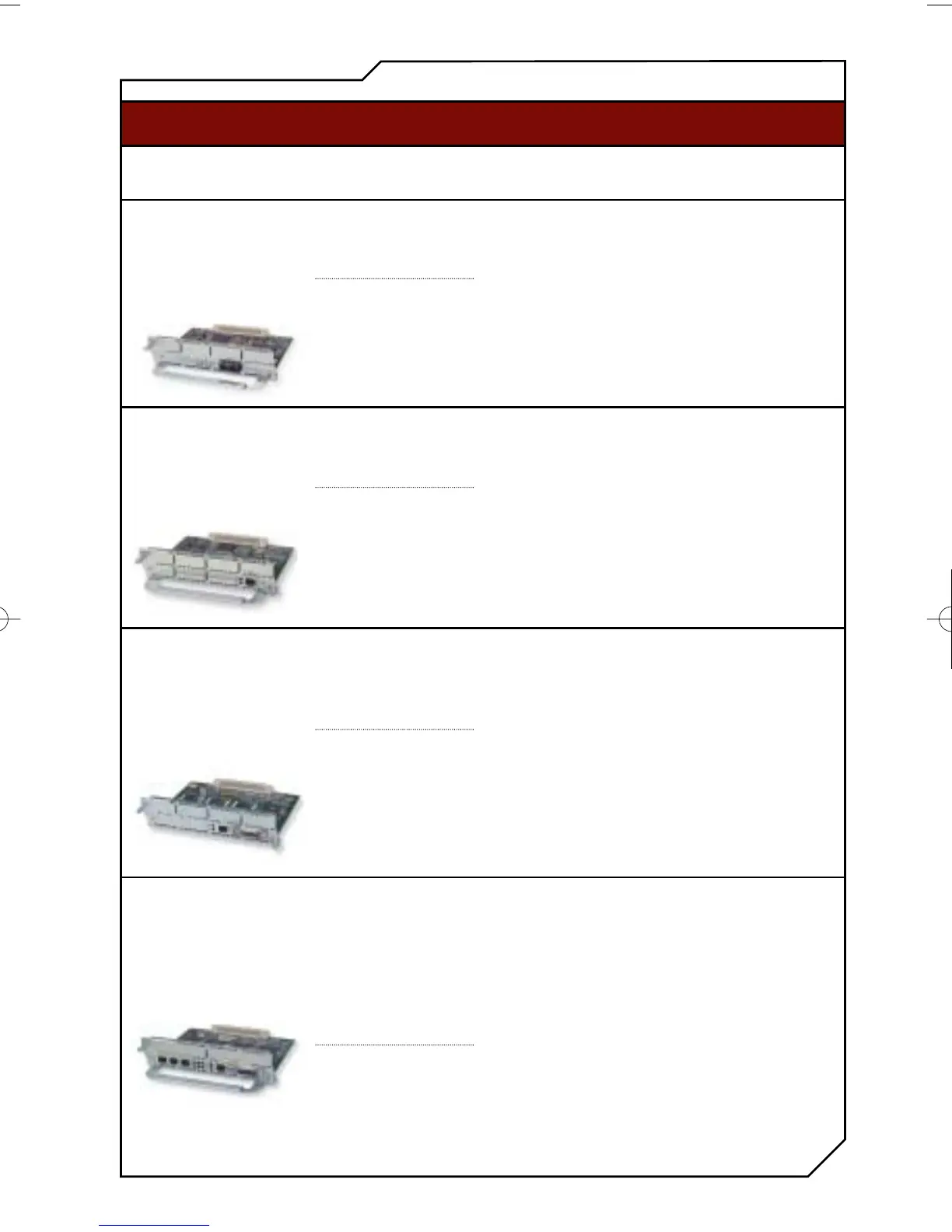

NM-1FE-FX
1-port Fast Ethernet,
FX only network module
Provides a single auto-
sensing 10/100BASE-FX
connection via a fiber
connector.
Modular Router Solutions
Inter-VLAN Routing
LAN-to-LAN Routing
VPN and Firewall
3700 Series – Future
3660 Series – 12.0(5)T
3640 – 11.3(1)T
3620 – 11.3(1)T
2691 – 12.2(8)T
2600XM Series – Future
2650 Series – Not Available
2620 Series – Not Available
2610 Series – Not Available
No reliance on other
network modules, WICs,
voice interface cards, or
advanced integration
modules.
VLAN support requires
a Cisco IOS”Plus”
feature set.
NM-1FE-TX
1-port Fast Ethernet,
TX only network module
Provides a single auto-
sensing 10/100TX
connection via an RJ-45
connector.
Modular Router Solutions
Inter-VLAN Routing
LAN-to-LAN Routing
VPN and Firewall
3700 Series – Not Available
3660 Series – 12.0(5)T
3640 – 11.2(6)P
3620 – 11.2(6)P
2691 – Not Available
2600XM Series –
Not Available
2650 Series – Not Available
2620 Series – Not Available
2610 Series – Not Available
No reliance on other
network modules, WICs,
voice interface cards, or
advanced integration
modules.
VLAN support requires
a Cisco IOS”Plus”
feature set.
Product Description
Supported Platforms
and Minimum Cisco
IOS Versions Comments
NM-1E
1-port Ethernet network
module
Provides a single Ethernet
LAN connection via an
Ethernet AUI DB-15
connector or 10BASE-T
RJ-45 connector.
Modular Router Solutions
LAN-to-LAN Routing
VPN and Firewall
3700 Series – Not Available
3660 Series – 12.0(5)T
3640 – 11.2(4)XA
3620 – 11.2(4)XA
2691 – Future
2600XM Series – Not
Available
2650 Series – 12.1(3)T
2620 Series – 11.3(4)T
2610 Series – 11.3(4)T
No reliance on other
network modules, WICs,
voice interface cards, or
advanced integration
modules.
NM-4E
4-port Ethernet network
module
Provides connections to
four Ethernet LANs. One
connection is via an
Ethernet AUI DB-15
connector or 10BASE-T
RJ-45 connector. The other
3 connections are via
10BASE-T RJ-45
connectors.
Modular Router Solutions
LAN-to-LAN Routing
VPN and Firewall
3700 Series – Not Available
3660 Series – 12.0(5)T
3640 – 11.2(6)P
3620 – 11.2(6)P
2691 – Not Available
2600XM Series – 12.1(14)
mainline, 12.2(12) mainline
(future), 12.2(8)T1
2650 Series – 12.1(3)T
2620 Series – 11.3(4)T
2610 Series – 11.3(4)T
No reliance on other
network modules, WICs,
voice interface cards, or
advanced integration
modules.
AccessRouter_10.21.02 10/24/02 3:31 PM Page 51

Cisco 1700 series Specifications

General

Model	1700 Series
Connectivity Technology	Wired
Remote Management Protocol	SNMP, Telnet, HTTP
Encryption Algorithm	DES, 3DES, AES
Processor	Motorola MPC860
QoS Support	Yes
Operating System	Cisco IOS
Routing Protocols	OSPF, EIGRP, BGP
Security Features	Firewall, VPN
Memory	16 MB
Expansion Slots	1 x WIC
Data Link Protocol	Ethernet, Fast Ethernet
Network / Transport Protocol	TCP/IP
Features	DHCP, NAT, VLAN
LAN Ports	4 x 10/100Base-TX
