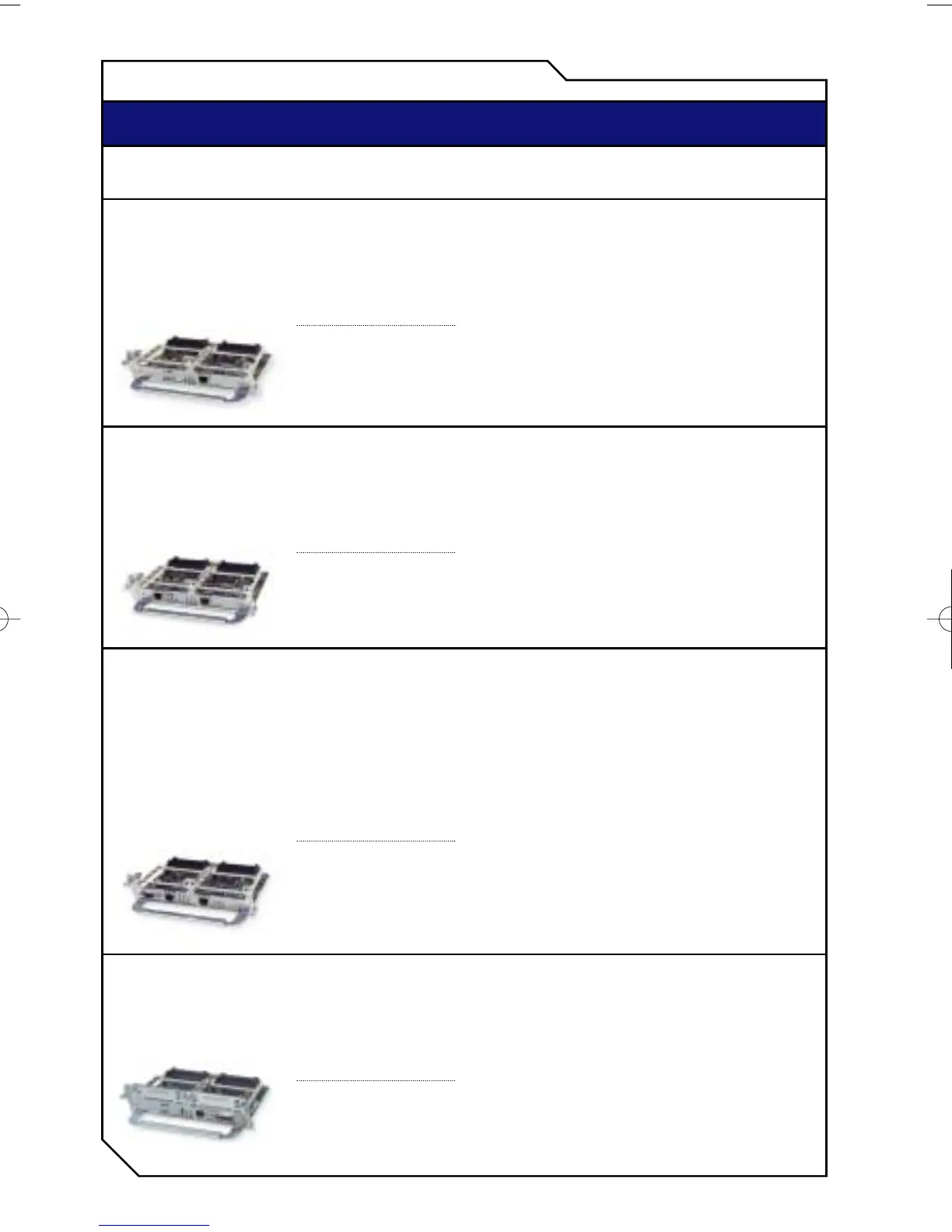

Network Modules for Cisco 2600XM, 3600, and 3700 Series
52
LAN and WIC Combo Network Modules
Product Description
Supported Platforms
and Minimum Cisco
IOS Versions Comments
NM-1FE2W
1-port 10/100 Ethernet,
two WIC slot network
module
Provides one full/half
duplex, auto-sensing
10/100 Ethernet port and
two WIC expansion slots.
The
10/100 Ethernet
connections
are via RJ-45
connectors.
Modular Router Solutions
Inter-VLAN Routing
LAN-to-LAN Routing
VPN and Firewall
Voice and Fax Integration
3700 Series – 12.2(8)T
3660 Series – 12.0(7)XK
3640 – 12.0(7)XK
3620 – 12.0(7)XK
2691 – 12.2(8)T
2600XM Series – Not
Available
2650 Series – Not Available
2620 Series – Not Available
2610 Series – Not Available
No reliance on other
network modules, WICs,
voice interface cards, or
advanced integration
modules.
Supports all current WICs
and VWICs.
NM-2FE2W
2-port 10/100 Ethernet, two
WIC slot network module
Provides two full/half
duplex, auto-sensing 10/100
Ethernet ports and two
WIC expansion slots. The
10/100 Ethernet
connections are via RJ-45
connectors.
Modular Router Solutions
Inter-VLAN Routing
LAN-to-LAN Routing
VPN and Firewall
Voice and Fax Integration
3700 Series - 12.2(8)T
3660 Series – 12.0(7)XK
3640 – 12.0(7)XK
3620 – 12.0(7)XK
2691 – 12.2(8)T
2600XM Series – Not
Available
2650 Series – Not Available
2620 Series – Not Available
2610 Series – Not Available
No reliance on other
network modules, WICs,
voice interface cards, or
advanced integration
modules.
Supports all current WICs
and VWICs.
NM-1FE1R2W
1-port 10/100 Ethernet,
1-port 4/16 Token Ring,
two WIC slot network
module
Provides one full/half
duplex, autosensing
10/100 Ethernet port, one
full/half duplex 4/16 Token
Ring port, and 2 WIC
expansion slots. The
10/100 Ethernet connection
is via an RJ-45 connector.
The Token Ring
connection is via an STP
or UTP connector.
Modular Router Solutions
Inter-VLAN Routing
LAN-to-LAN Routing
VPN and Firewall
Voice and Fax Integration
3700 Series – 12.2(8)T
3660 Series – 12.0(7)XK
3640 – 12.0(7)XK
3620 – 12.0(7)XK
2691 – 12.2(8)T
2600XM Series – Not
Available
2650 Series – Not Available
2620 Series – Not Available
2610 Series – Not Available
No reliance on other
network modules, WICs,
voice interface cards, or
advanced integration
modules.
Supports all current WICs
and VWICs.
NM-1E2W
One Ethernet, two WIC slot
network module
Provides one Ethernet port
and two WIC expansion
slots. The Ethernet
connection is via an
Ethernet AUI DB-15
connector or 10BASE-T
RJ-45 connector.
Modular Router Solutions
LAN-to-LAN Routing
VPN and Firewall
3700 Series – Not Available
3660 Series – 12.0(5)T
3640 – 11.1(7)AA
3620 – 11.1(7)AA
2691 – Not Available
2600XM Series – Not
Available
2650 Series – Not Available
2620 Series – Not Available
2610 Series – Not Available
No reliance on other
network modules, WICs,
voice interface cards, or
advanced integration
modules.
Supported WICs include
WIC-1T, WIC-1B-S/T, WIC-
1B-U, WIC-1DSU-56K4,
and WIC-1DSU-T1.
AccessRouter_10.21.02 10/24/02 3:31 PM Page 52

Cisco 1700 series Specifications

General

Model	1700 Series
Connectivity Technology	Wired
Remote Management Protocol	SNMP, Telnet, HTTP
Encryption Algorithm	DES, 3DES, AES
Processor	Motorola MPC860
QoS Support	Yes
Operating System	Cisco IOS
Routing Protocols	OSPF, EIGRP, BGP
Security Features	Firewall, VPN
Memory	16 MB
Expansion Slots	1 x WIC
Data Link Protocol	Ethernet, Fast Ethernet
Network / Transport Protocol	TCP/IP
Features	DHCP, NAT, VLAN
LAN Ports	4 x 10/100Base-TX
