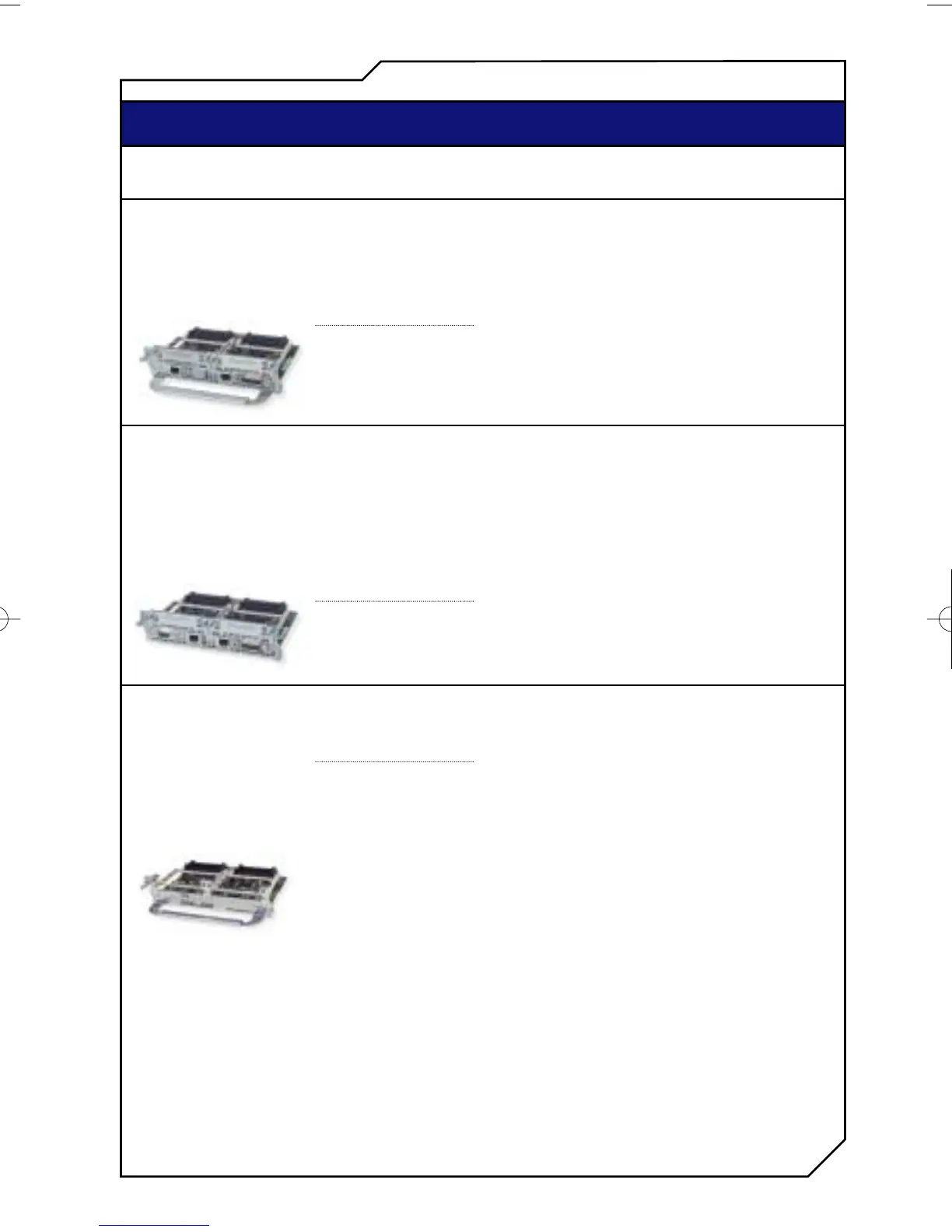

Network Modules for Cisco 2600XM, 3600, and 3700 Series
53
LAN and WIC Combo Network Modules
Product Description
Supported Platforms
and Minimum Cisco
IOS Versions Comments
NM-2E2W
Two Ethernet, two WIC slot
network module
Provides two Ethernet
ports and two WIC
expansion slots. The
Ethernet connection is via
an Ethernet AUI DB-15
connector or 10BASE-T
RJ-45 connector.
Modular Router Solutions
LAN-to-LAN Routing
VPN and Firewall
3700 Series – Not Available
3660 Series – 12.0(5)T
3640 – 11.1(7)AA
3620 – 11.1(7)AA
2691 – Not Available
2600XM Series – Not
Available
2650 Series – Not Available
2620 Series – Not Available
2610 Series – Not Available
No reliance on other
network modules, WICs,
voice interface cards, or
advanced integration
modules.
Supported WICs include
WIC-1T, WIC-1B-S/T, WIC-
1B-U, WIC-1DSU-56K4,
and WIC-1DSU-T1.
NM-1E1R2W
One Ethernet, one Token
Ring, two WIC slot network
module
Provides one Ethernet
port, one Token Ring and
two WIC expansion slots.
The Ethernet connection is
via an Ethernet AUI DB-15
connector or 10BASE-T
RJ-45 connector. The
Tok en Ring connection is
via an STP or UTP
connector.
Modular Router Solutions
LAN-to-LAN Routing
VPN and Firewall
3700 Series – Not Available
3660 Series – 12.0(5)T
3640 – 11.1(8)AA
3620 – 11.1(8)AA
2691 – Not Available
2600XM Series – Not
Available
2650 Series – Not Available
2620 Series – Not Available
2610 Series – Not Available
No reliance on other
network modules, WICs,
voice interface cards, or
advanced integration
modules.
Supported WICs include
WIC-1T, WIC-1B-S/T, WIC-
1B-U, WIC-1DSU-56K4,
and WIC-1DSU-T1.
NM-2W
Two WIC slot network
module
Provides two WIC
expansion slots
supporting all current
WICs and VWICs.
Modular Router Solutions
Serial and Legacy
Concentration
Voice and Fax Integration
3700 Series – 12.2(8)T
3660 Series – 12.0(7)XK
3640 – 12.0(7)XK
3620 – 12.0(7)XK
2691 – 12.2(8)T
2600XM Series – 12.1(14)
mainline, 12.2(12) mainline
(future), 12.2(8)T1
2650 Series – 12.1(3)T
2620 Series – 12.0(7)XK
2610 Series – 12.0(7)XK
Requires at least one WIC
or VWIC.
Supports all current WICs
and VWICs.
