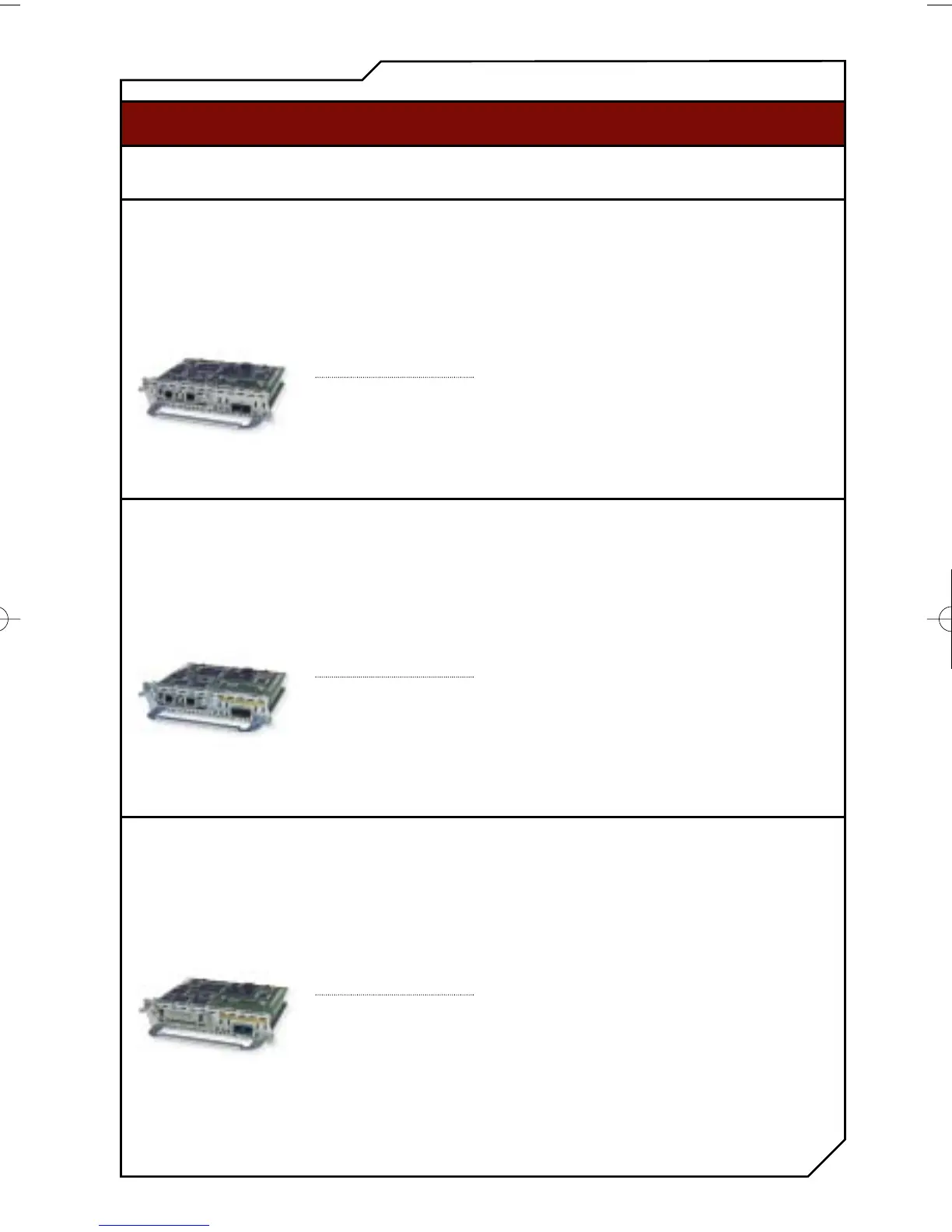

ATM OC3 with T1/E1 CES Network Modules
Product Description
Supported Platforms
and Minimum Cisco
IOS Versions Comments
NM-1A-OC3MM-1V
1-port OC-3/STM-1 CES
multimode ATM network
module
Provides an OC-3 interface
with UNI mode AAL1 and
AAL5 for CBR, UBR,
VBR-rt, VBR-nrt, UBR+ and
ABR classes of service and
one WIC expansion slot for
circuit emulation services.
This module will drive a
signal to a maximum
distance of two kilometers.
Modular Router Solutions
ATM Edge Connectivity
Voice and Fax Integration
3700 Series – Not Available
3660 Series – 12.1(2)T
3640 – 12.1(2)T
3620 – 12.1(2)T
2691 – Not Available
2600XM Series – Not
Available
2650 Series – Not Available
2620 Series – Not Available
2610 Series – Not Available
Requires a Cisco IOS
”Plus” feature set.
Maximum of one per
Cisco 3620 or Cisco 3640.
Requires an E1 or T1 VWIC
for PBX connectivity.
NM-1A-OC3SMI-1V
1-port OC-3/STM-1 CES
single-mode intermediate
reach ATM network
module
Provides an OC-3 interface
with UNI mode AAL1 and
AAL5 for CBR, UBR,
VBR-rt, VBR-nrt, UBR+ and
ABR classes of service and
one WIC expansion slot for
circuit emulation services.
This module will drive a
signal to a maximum
distance of 15 kilometers.
Modular Router Solutions
ATM Edge Connectivity
Voice and Fax Integration
3700 Series – Not Available
3660 Series – 12.1(2)T
3640 – 12.1(2)T
3620 – 12.1(2)T
2691 – Not Available
2600XM Series – Not
Available
2650 Series – Not Available
2620 Series – Not Available
2610 Series – Not Available
Requires a Cisco IOS
”Plus” feature set.
Maximum of one per
Cisco 3620 or Cisco 3640.
Requires an E1 or T1 VWIC
for PBX connectivity.
NM-1A-OC3SML-1V
1-port OC-3/STM-1 CES
single-mode long reach
ATM network module
Provides an OC-3 interface
with UNI mode AAL1 and
AAL5 for CBR, UBR,
VBR-rt, VBR-nrt, UBR+ and
ABR classes of service and
one WIC expansion slot for
circuit emulation services.
This module will drive a
signal to a maximum
distance of 45 kilometers.
Modular Router Solutions
ATM Edge Connectivity
Voice and Fax Integration
3700 Series – Not Available
3660 Series – 12.1(2)T
3640 – 12.1(2)T
3620 – 12.1(2)T
2691 – Not Available
2600XM Series – Not
Available
2650 Series – Not Available
2620 Series – Not Available
2610 Series – Not Available
Requires a Cisco IOS
”Plus” feature set.
Maximum of one per
Cisco 3620 or Cisco 3640.
Requires an E1 or T1 VWIC
for PBX connectivity.
AccessRouter_10.21.02 10/24/02 3:31 PM Page 63

Cisco 1700 series Specifications

General

Model	1700 Series
Connectivity Technology	Wired
Remote Management Protocol	SNMP, Telnet, HTTP
Encryption Algorithm	DES, 3DES, AES
Processor	Motorola MPC860
QoS Support	Yes
Operating System	Cisco IOS
Routing Protocols	OSPF, EIGRP, BGP
Security Features	Firewall, VPN
Memory	16 MB
Expansion Slots	1 x WIC
Data Link Protocol	Ethernet, Fast Ethernet
Network / Transport Protocol	TCP/IP
Features	DHCP, NAT, VLAN
LAN Ports	4 x 10/100Base-TX
