Network Modules for Cisco 2600XM, 3600, and 3700 Series
64

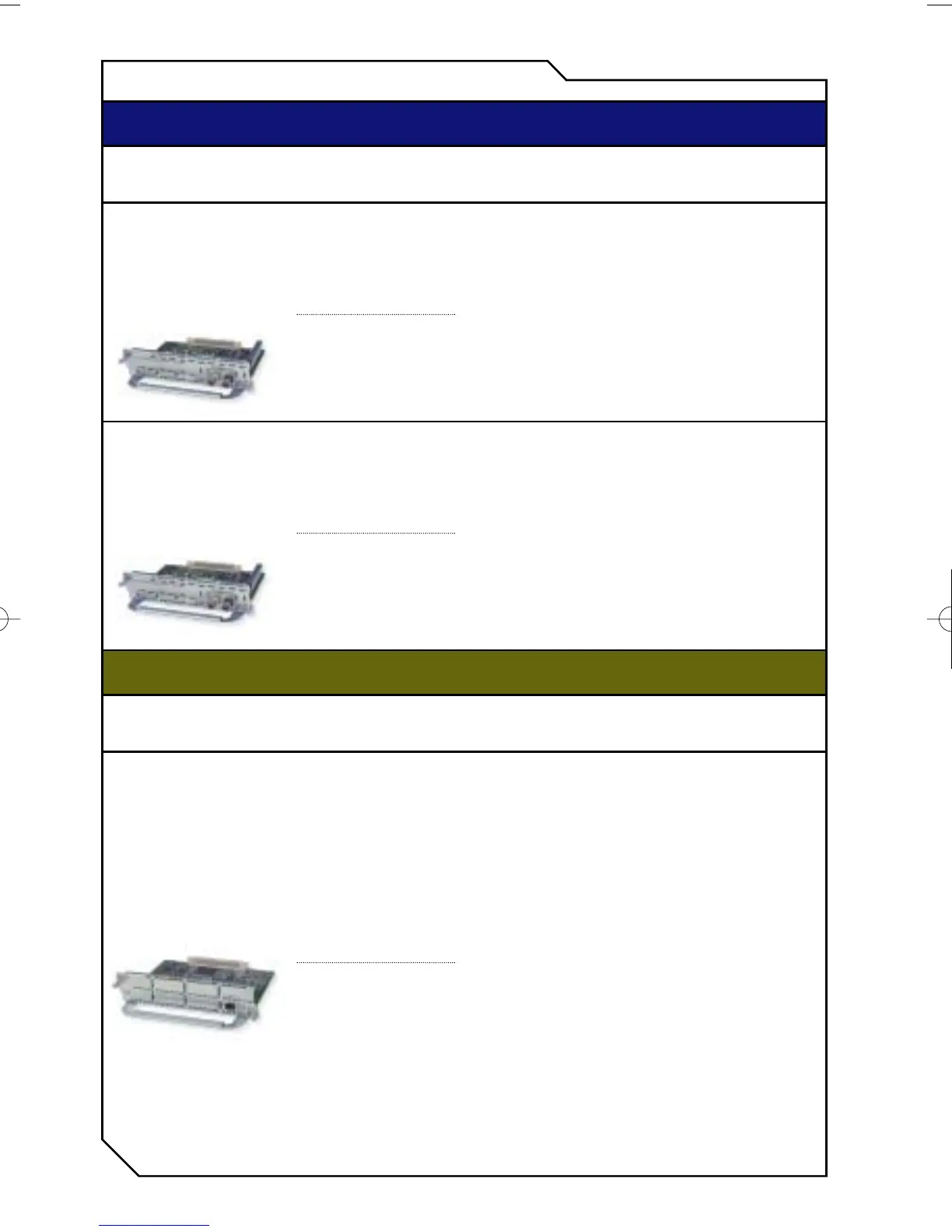

ATM T3/E3 Network Modules
Product Description
Supported Platforms
and Minimum Cisco
IOS Versions Comments
NM-1A-T3
1-port DS3 ATM network
module
Provides a single ATM
connection of 45 Mbps for
DS3 using 75 ohm BNC
Connectors. The network
module supports ATM
Forum-compliant AAL5.
Modular Router Solutions
ATM Edge Connectivity
3700 Series – 12.2(8)T
3660 Series – 12.1(2)T
3640 – 12.1(2)T
3620 – 12.1(2)T
2691 – 12.2(8)T
2600XM Series – 12.2(12)
mainline (future), 12.2(8)T1
2650 Series – 12.1(3)T
2620 Series – 12.1(2)T
2610 Series – 12.1(2)T
Requires a Cisco IOS
”Plus” feature set.
No reliance on other
network modules, WICs,
voice interface cards, or
advanced integration
modules.
ATM 25 Mbps Network Modules
Product Description
Supported Platforms
and Minimum Cisco
IOS Versions Comments
NM-1ATM-25
1-port ATM 25 network
module
Provides 25 Mbps ATM
connections to external
ADSL modems. The ATM
network module is
compatible with the ATM
Forum 25.6-Mbps physical
sublayer (PHY)
specification for
unshielded twisted-pair
(UTP), Category 3 (UTP-3),
or shielded twisted-pair
(STP) cable plants.
Modular Router Solutions
ATM Edge Connectivity
DSL Access
LAN-to-LAN Routing
3700 Series – Not Available
3660 Series – 12.0(7)XK
3640 – 11.3(3a)T
3620 – 11.3(3a)T
2691 – Not Available
2600XM Series – 12.1(14)
mainline, 12.2(12) mainline
(future), 12.2(8)T1
2650 Series – 12.1(3)T
2620 Series – 11.3(3a)T
2610 Series – 11.3(3a)T
Requires a Cisco IOS
”Plus” feature set.
No reliance on other
network modules, WICs,
voice interface cards, or
advanced integration
modules.
NM-1A-E3
1-port E3 ATM network
module
Provides a single ATM
connection of 34 Mbps for
E3 using 75 ohm BNC
Connectors. The network
module supports ATM
Forum-compliant AAL5.
Modular Router Solutions
ATM Edge Connectivity
3700 Series – 12.2(8)T
3660 Series – 12.1(2)T
3640 – 12.1(2)T
3620 – 12.1(2)T
2691 – 12.2(8)T
2600XM Series – 12.2(12)
mainline (future), 12.2(8)T1
2650 Series – 12.1(3)T
2620 Series – 12.1(2)T
2610 Series – 12.1(2)T
Requires a Cisco IOS
”Plus” feature set.
No reliance on other
network modules, WICs,
voice interface cards, or
advanced integration
modules.
AccessRouter_10.21.02 10/24/02 3:31 PM Page 64

Cisco 1700 series Specifications

General

Model	1700 Series
Connectivity Technology	Wired
Remote Management Protocol	SNMP, Telnet, HTTP
Encryption Algorithm	DES, 3DES, AES
Processor	Motorola MPC860
QoS Support	Yes
Operating System	Cisco IOS
Routing Protocols	OSPF, EIGRP, BGP
Security Features	Firewall, VPN
Memory	16 MB
Expansion Slots	1 x WIC
Data Link Protocol	Ethernet, Fast Ethernet
Network / Transport Protocol	TCP/IP
Features	DHCP, NAT, VLAN
LAN Ports	4 x 10/100Base-TX
