Cisco 1900 Series Hardware Installation
OL-19084-02
Chapter 4 Installing and Connecting the Router
Setting Up the Chassis
Setting Up the Chassis
The Cisco 1900 series router can be installed on a desktop, and can also be mounted on a wall. Select
the setup that best meets the needs of your network. These setups are described in the following sections:
• Setting the Chassis on a Desktop, page 4-4
• Wall-Mounting the Chassis, page 4-4
• Rack-Mounting the Chassis
Caution The front panel bezel must not be removed from the Cisco 1900 series router. It is part of the product's
enclosure, and must be left in place to prevent damage from foreign parts entering the router, to provide
a shield from internal electromagnetic interference (EMI), and to direct the flow of cooling air properly
through the chassis.

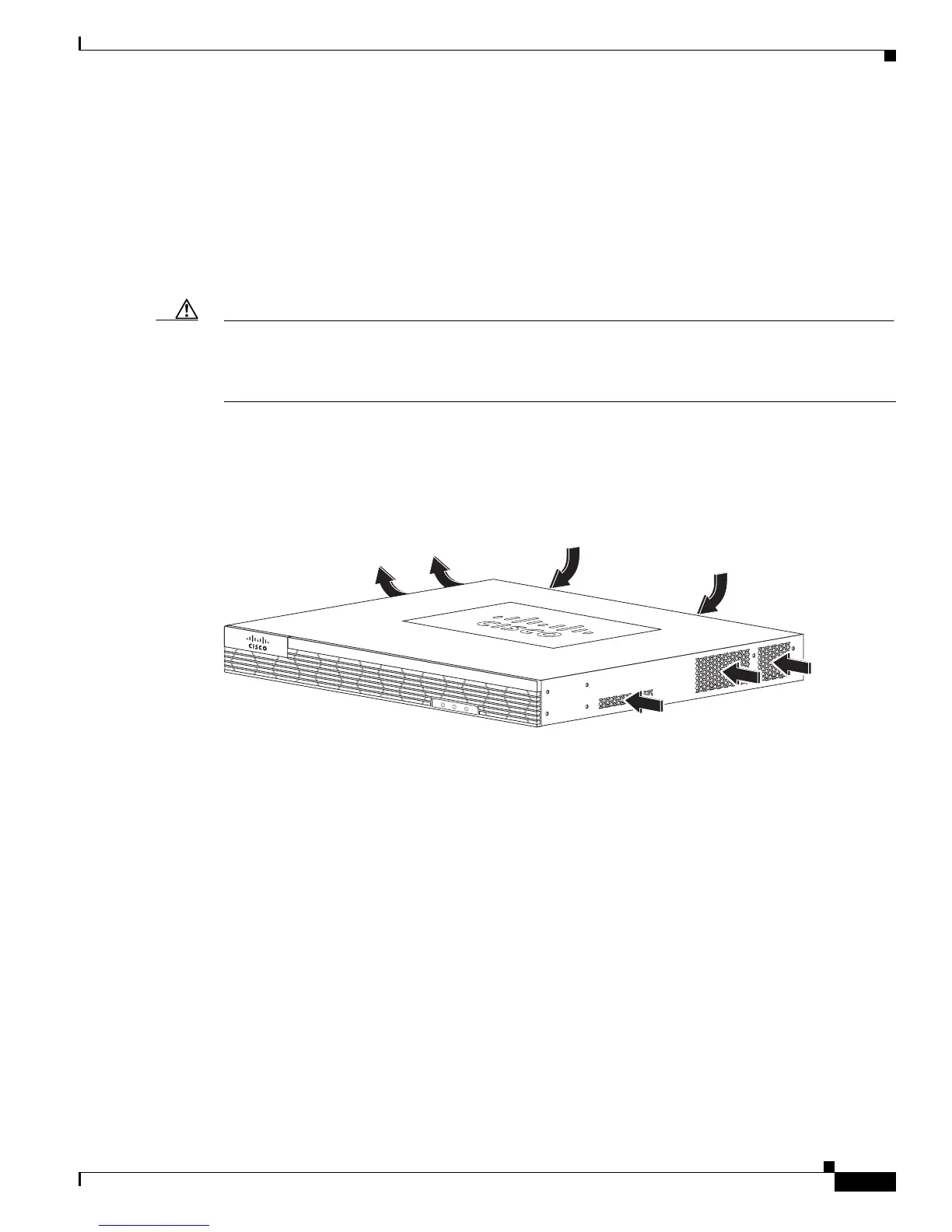

Chassis Airflow Diagram
Figure 4-2 shows the airflow through and around the Cisco 1905 and Cisco 1921 chassis.
Figure 4-1 Cisco 1905 and Cisco 1921 Chassis Airflow
Figure 4-2 shows the airflow through and around the Cisco 1940 series chassis.
Cisco 1900 Series
SYS ACT
POE
253716
