Cisco 2800 Series Quick Start Guide

13
Rack-Mounting the Router
Cisco 2811, Cisco 2821, and Cisco 2851 routers can be installed in 19- and 23-inch (48.26-cm and 58.42-cm) racks. Cisco 2801
routers can be installed only in 19-inch racks, and cannot be center mounted. Use the standard brackets for mounting the chassis
in a 19-inch rack; use the optional larger brackets for mounting the chassis in a 23-inch rack.
You can mount the router in the following ways:
• Center mounting—Brackets attached in the center of the chassis with only the front panel facing forward
• Front mounting—Brackets attached at the front of the chassis with the front panel facing forward
• Rear mounting—Brackets attached at the rear of the chassis with the rear panel facing forward

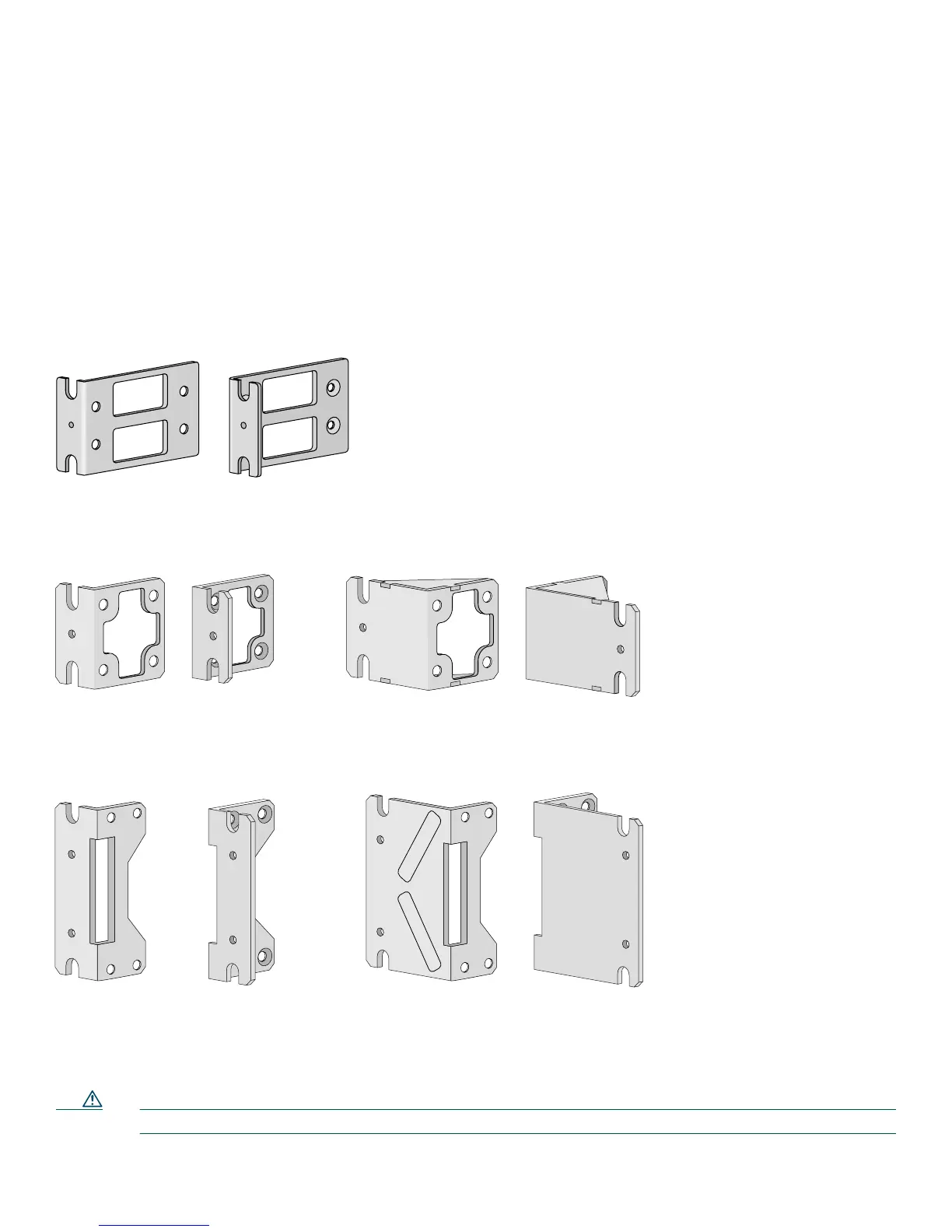

The brackets are shown in Figure 4, Figure 5, and Figure 6.
Figure 4 Brackets for Rack-Mounting of Cisco 2801 Routers
Figure 5 Brackets for Rack-Mounting of Cisco 2811 Routers
Figure 6 Brackets for Rack-Mounting of Cisco 2821 and Cisco 2851 Routers
Attaching Brackets to the Router for Rack-Mounting
Attach the mounting brackets to the router chassis as shown in Figure 7 through Figure 9, using the screws provided.
Caution Do not overtorque the screws. The recommended torque is 15–18 in-lb (1.7–2.0 N-m).
95769
95785
Bracket pair for 19-inch rack Bracket pair for 23-inch rack
95744
Bracket pair for 19-inch rack Bracket pair for 23-inch rack

Cisco 2800 Series Specifications

General

Power Supply	Internal power supply
Product Type	Router
Form Factor	Rack-mountable
Connectivity Technology	Wired
Power Device	Internal power supply
Operating System	Cisco IOS
Integrated Services	Security, voice
WAN Interfaces	T1/E1, Serial
LAN Interfaces	Fast Ethernet, Gigabit Ethernet
Expansion Slots	4
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Network/Transport Protocol	IP, TCP
Remote Management Protocol	SNMP, Telnet
Features	VPN support, Quality of Service (QoS), VLAN support
Voltage Required	AC 100-240 V
Security Features	Firewall, VPN, Access Control Lists (ACLs)
