Chapter 3 Replacing Cards in the Cisco ISR 3270 Rugged Enclosure
Card Replacement Process
Figure 3-12 1-WMIC Configuration

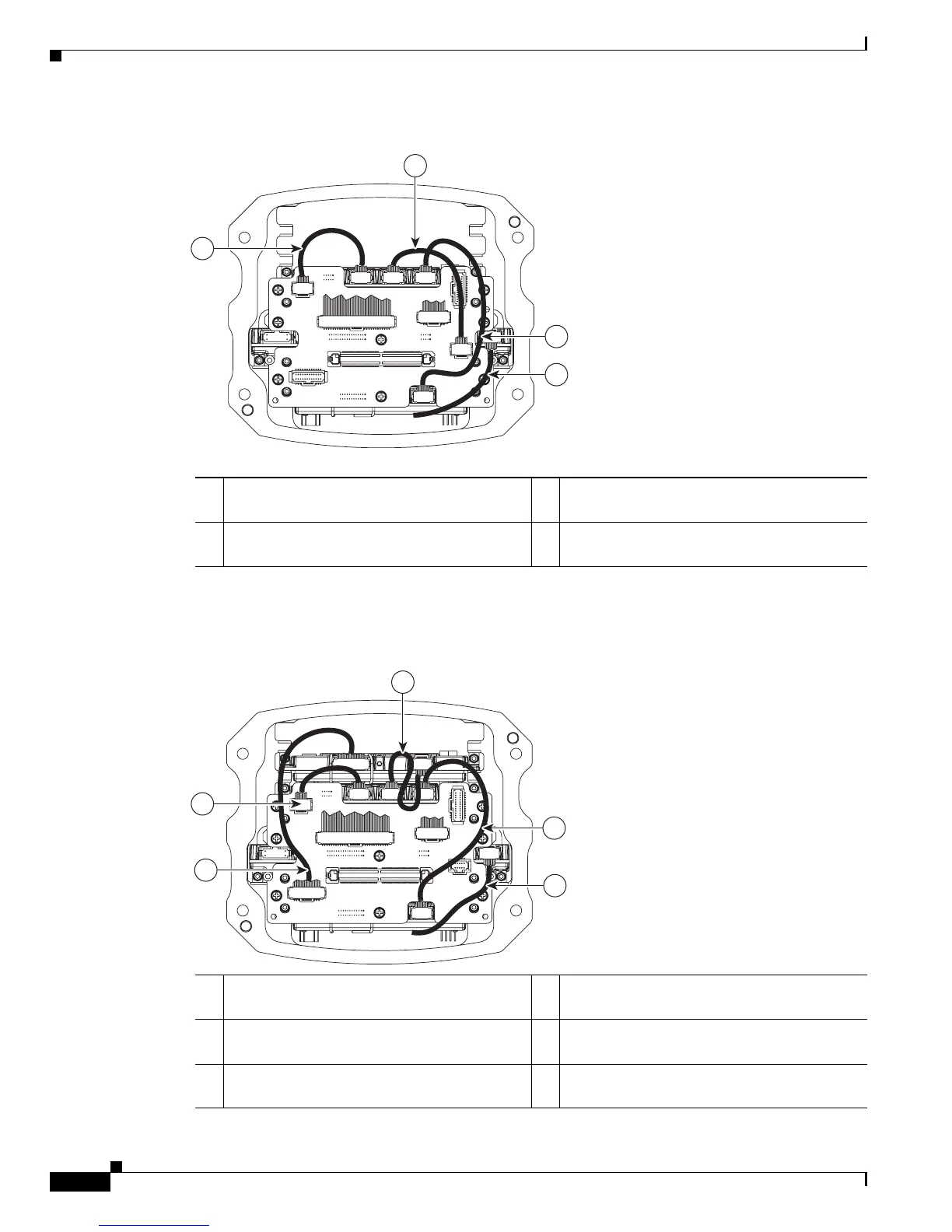

For a 2-WMIC configuration, connect the cables to the wiring card as shown in Figure 3-13.
Figure 3-13 2-WMIC Configuration
270476
1
4
3
2
1 Connect the FESMIC 10-pin FE1X cable to
port J14 on the wiring card.
2 Connect the FESMIC 10-pin FE2X cable to
port J4 on the wiring card.
3 Connect the FESMIC 10-pin FE3X cable to
WMIC 1.
4 Thread the FE extender cable under the card
stack to the antenna end cap side.
270477
1
4
5
3
2
1 Connect the FESMIC 10-pin FE1X cable to
port J14 on the wiring card.
2 Connect the FESMIC 10-pin FE2X cable to
WMIC 2.
3 Connect the FESMIC 10-pin FE3X cable to
WMIC 1.
4 Thread the FE extender cable under the card
stack to the antenna end cap side.
5 Connect the WMIC 2 console port to port J2
on the wiring card, using a 20-pin cable.
