Cisco 3200 Series - Adjusting the WMIC Jumper Settings

3-14
Cisco 3200 Series Router Hardware Upgrade Guide
OL-15983-01
Chapter 3 Replacing Cards in the Cisco ISR 3270 Rugged Enclosure
Card Replacement Process
Adjusting the WMIC Jumper Settings
If you add or remove WMIC cards, you must adjust the WMIC jumper settings on the I/O end cap as
shown in
Figure 3-15.

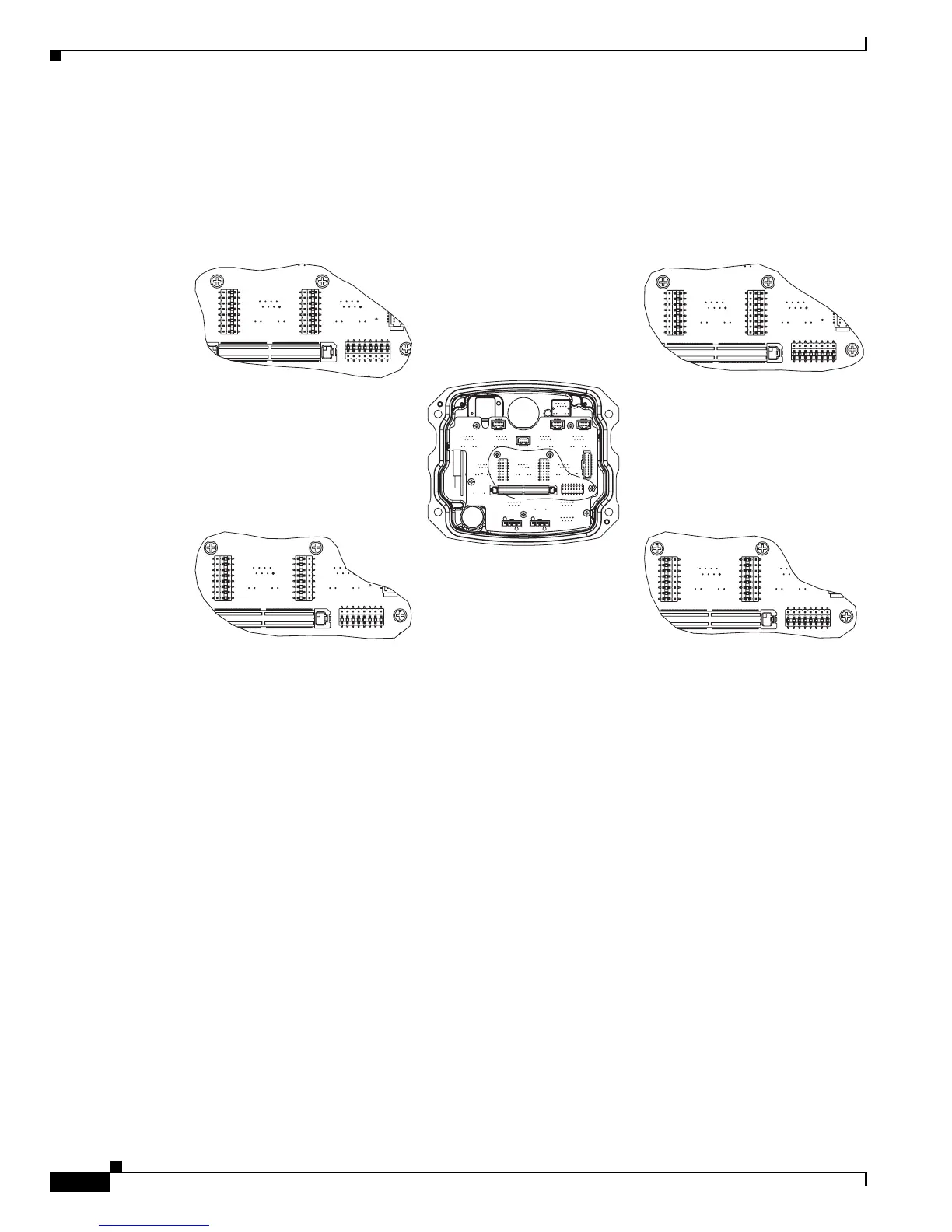

Figure 3-15 WMIC Jumper Settings
0 WMIC Settings
2 WMIC Settings
3 WMIC Settings
1 WMIC Settings
270194
