3-6
Cisco 3200 Series Router Hardware Upgrade Guide
OL-15983-01
Chapter 3 Replacing Cards in the Cisco ISR 3270 Rugged Enclosure
Card Replacement Process
Step 4 Slide the card stack out from the antenna end cap side, as shown in Figure 3-5.

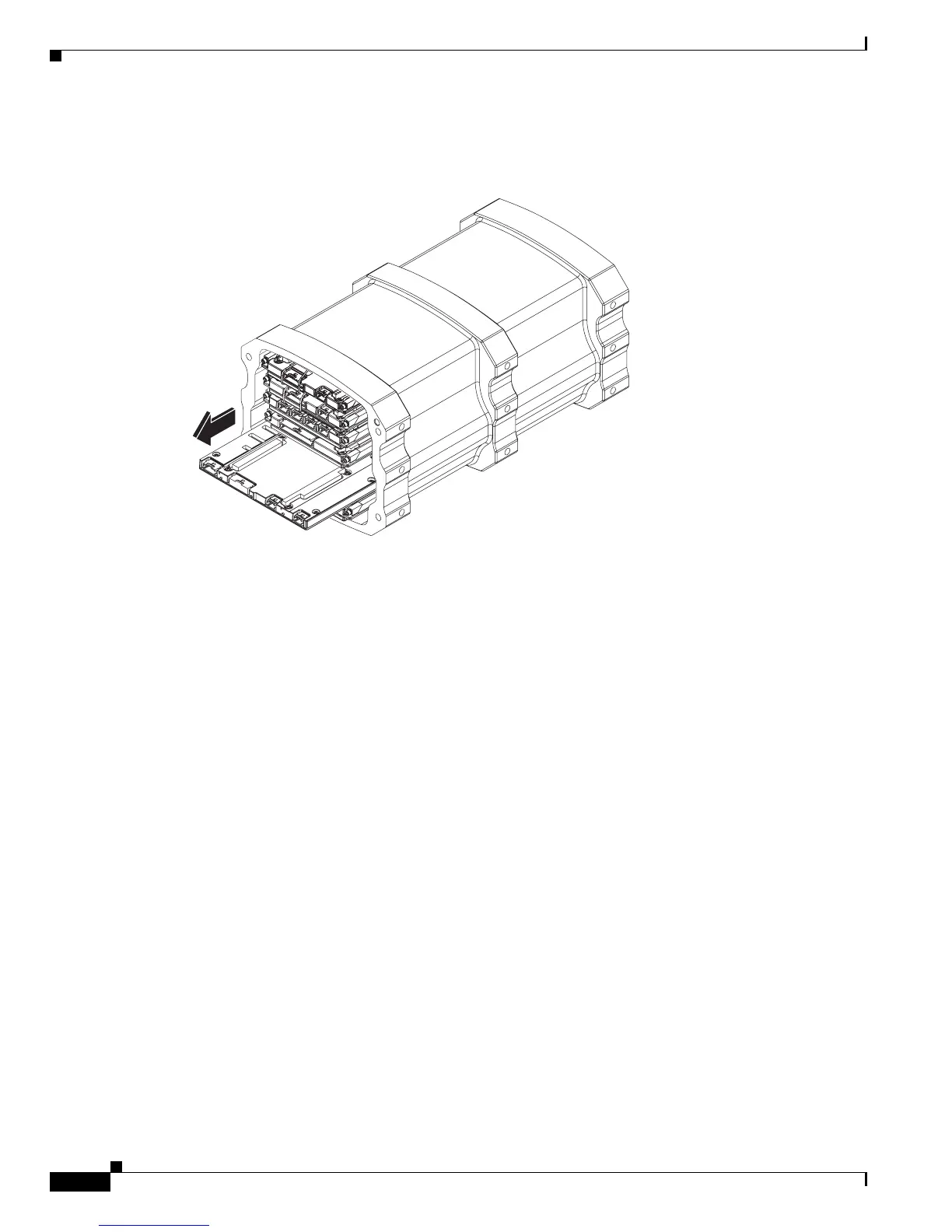

Figure 3-5 Sliding Out the Card Stack
Step 5 Carefully place the card stack on its side on a flat surface.
270469
