Cisco 3410DVB - Connecting to a TV

9
Connecting to a TV
WARNING:
Electric shock hazard! Unplug all electronic devices before connecting or
disconnecting any device cables to the set-top.
Cable InTV Out
Video Out S/PDIF
Audio Out
RL
IR In
Input:
90~270VAC~
47~63Hz.0.5A
T14948

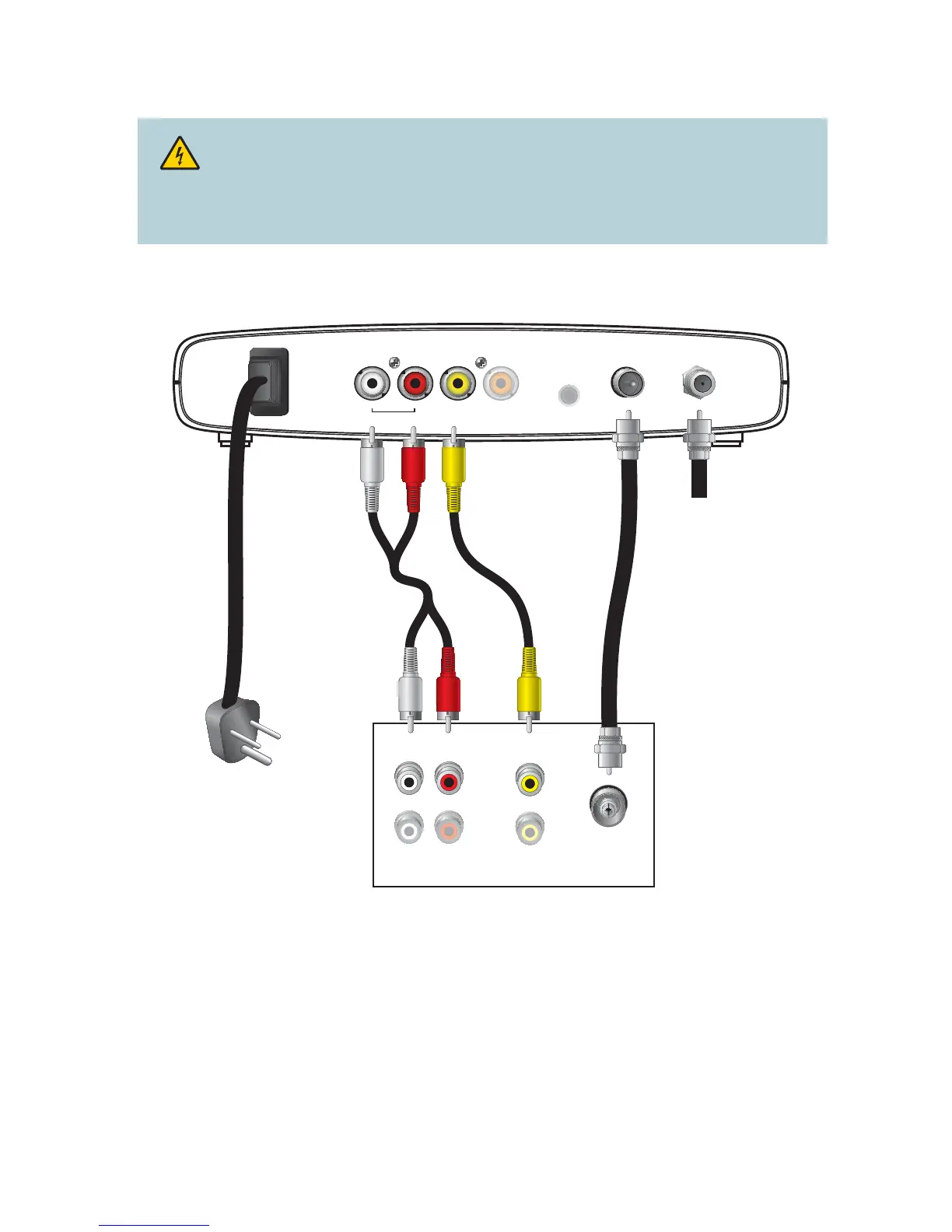

Back of Set-Top
To Power
Receptacle
Back
of TV
Cable
Input
RL
AUDIO
OUT
VIDEO
OUT
AUDIO
IN
VIDEO
IN
CABLE IN
AUDIO
OUT
VIDEO
OUT
