Chapter 5 Installing Memory in the Router
Closing the Router
Replacing the Cisco 3660 Mainboard Tray
This section describes how to replace the mainboard tray. You need a number 2 Phillips screwdriver to
perform this procedure:
Step 1 Place the chassis so the rear panel faces you.
Step 2 Hold the tray so that the tabs at the tray’s lower corners are aligned with the ledge in the chassis opening.
(See part 1 of Figure 5-27.)

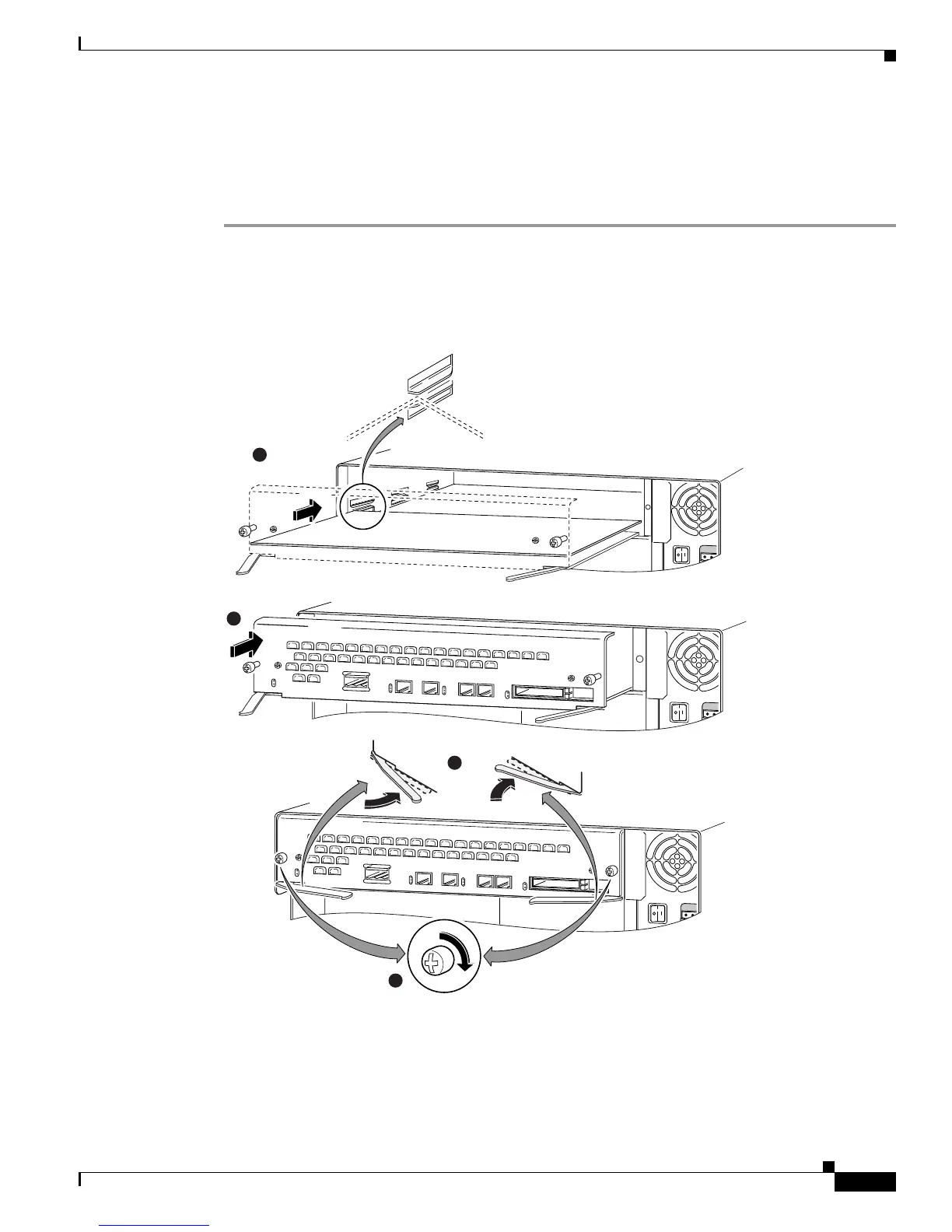

Figure 5-27 Replacing the Cisco 3660 Mainboard Tray
Step 3 Slide the mainboard tray into the chassis until firm contact is made with the backplane. (See part 2 in
Figure 5-27.)
Step 4 Push the levers at the lower corners of the mainboard inward. (See part 3 in Figure 5-27.)
17336
1
2
3
4
