Connecting Voice Network Modules to a Network 9-3
Voice Network Module LEDs
Voice Network Module LEDs
All network modules have an enable (EN) LED. This LED indicates that the module has
passed its self-tests and is available to the router. (See Figure 9-3.)

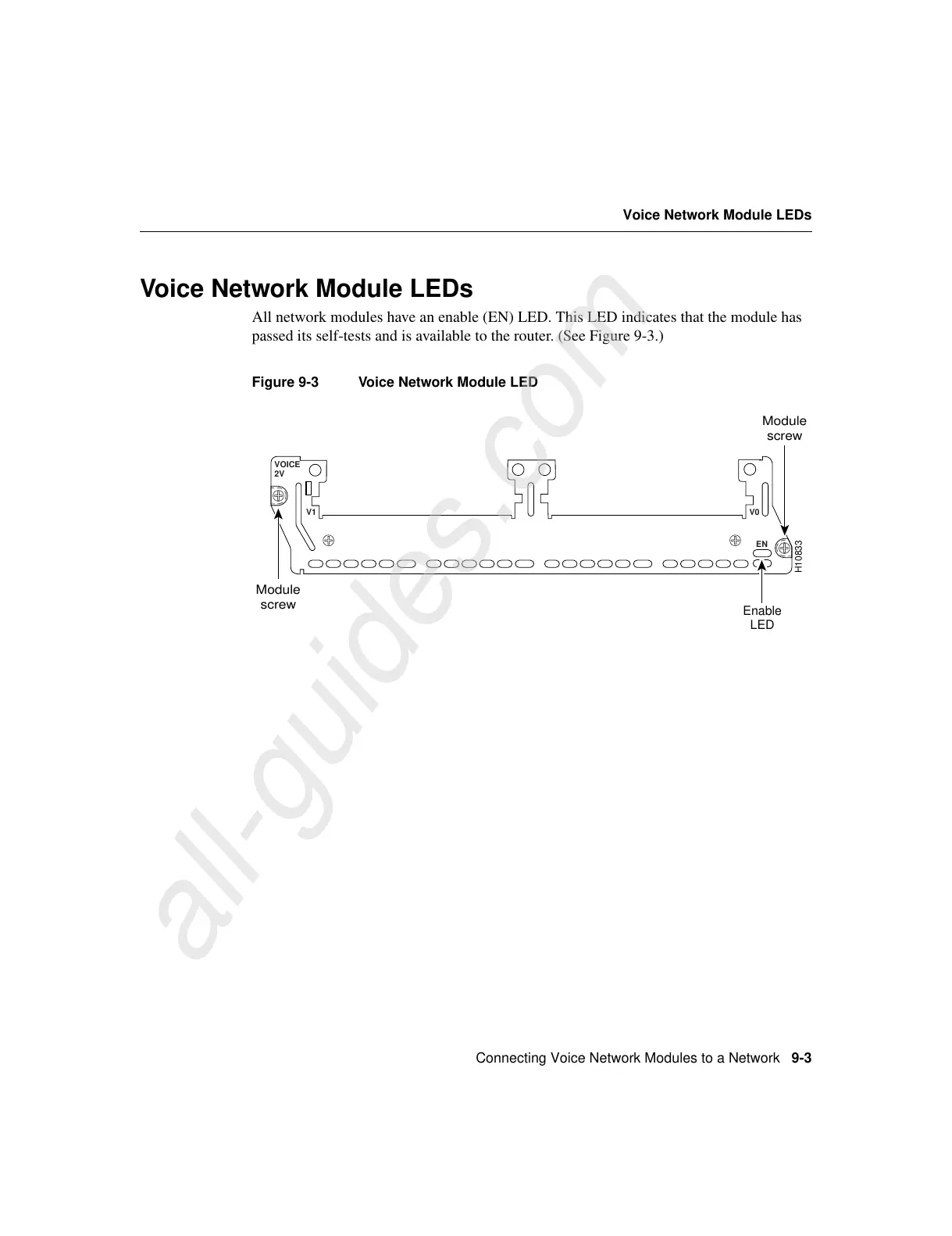

Figure 9-3 Voice Network Module LED
VOICE
2V
V0V1
EN
Enable
LED
H10833
Module
screw
Module
screw
