Installing a WAN Interface Card in a Network Module Slot
Cisco Network Modules Hardware Installation Guide
3-6
Step 5 Secure the captivemounting screws into the holes of the module faceplate, using
a Phillips or flat-blade screwdriver.
Step 6 If the router was previously running, reinstall the network interface cables and
power ON the router.
WAN Interface Card Filler Panels
If the base module is configured with only one WAN interfacecard, secure a slot filler panel
into the open base module slot to ensure proper airflow. (See Figure 3-4.)

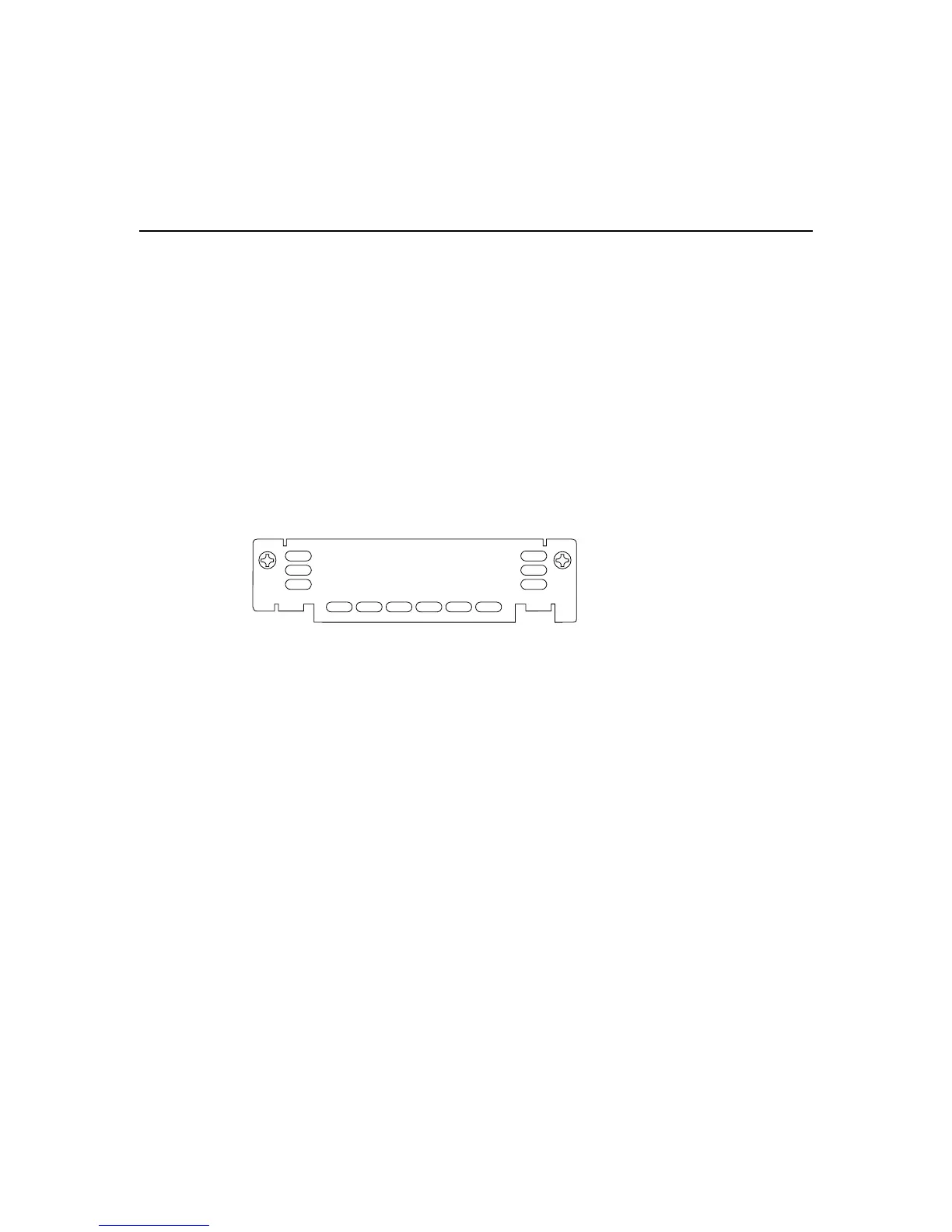

Figure 3-4 WAN Interface Card Slot Filler Panel
After installing any WAN interface cards you may have, if you need assistance in installing
a network module in your router, see the “Installing a Network Module in a Modular Router
Chassis Slot” section on page 3-1.
The next chapters in this guide contain connection and LED information for Cisco network
modules. Proceed to the chapter that corresponds to your type of network module:
• Chapter 4, “Connecting Ethernet Network Modules to a Network”
• Chapter 5, “Connecting Fast Ethernet PRI Network Modules to a Network”
• Chapter 6, “Connecting Serial Network Modules to a Network”
• Chapter 7, “Connecting ISDN BRI Network Modules to a Network”
• Chapter 8, “Connecting ISDN PRI Network Modules to a Network”
• Chapter 9, “Connecting Voice Network Modules to a Network”
• Chapter 10, “Connecting Digital Modem Network Modules to a Network”
• Chapter 11,“Connecting Analog Modem Network Modules to a Network”
DO NOT INSTALL WAN INTERFACE
CARDS WITH POWER APPLIED
