Cisco 3600 Series User Manual

CHAPTER
Connecting Ethernet Network Modules to a Network 4-1
4
Connecting Ethernet Network
Modules to a Network
This chapter describes how to connect and configure Ethernet network modules in Cisco
modular routers, and describes the following modules:
• 1-Port and 4-Port Ethernet Modules on page 4-1
• 1-Port Fast Ethernet Module on page 4-5
1-Port and 4-Port Ethernet Modules
This section provides information about the following network modules for Cisco modular
routers:
• 1-port Ethernet network module—(Cisco product number NM-1E). (See Figure 4-1.)
• 4-port Ethernet network module—(Cisco product number NM-4E). (See Figure 4-2.)

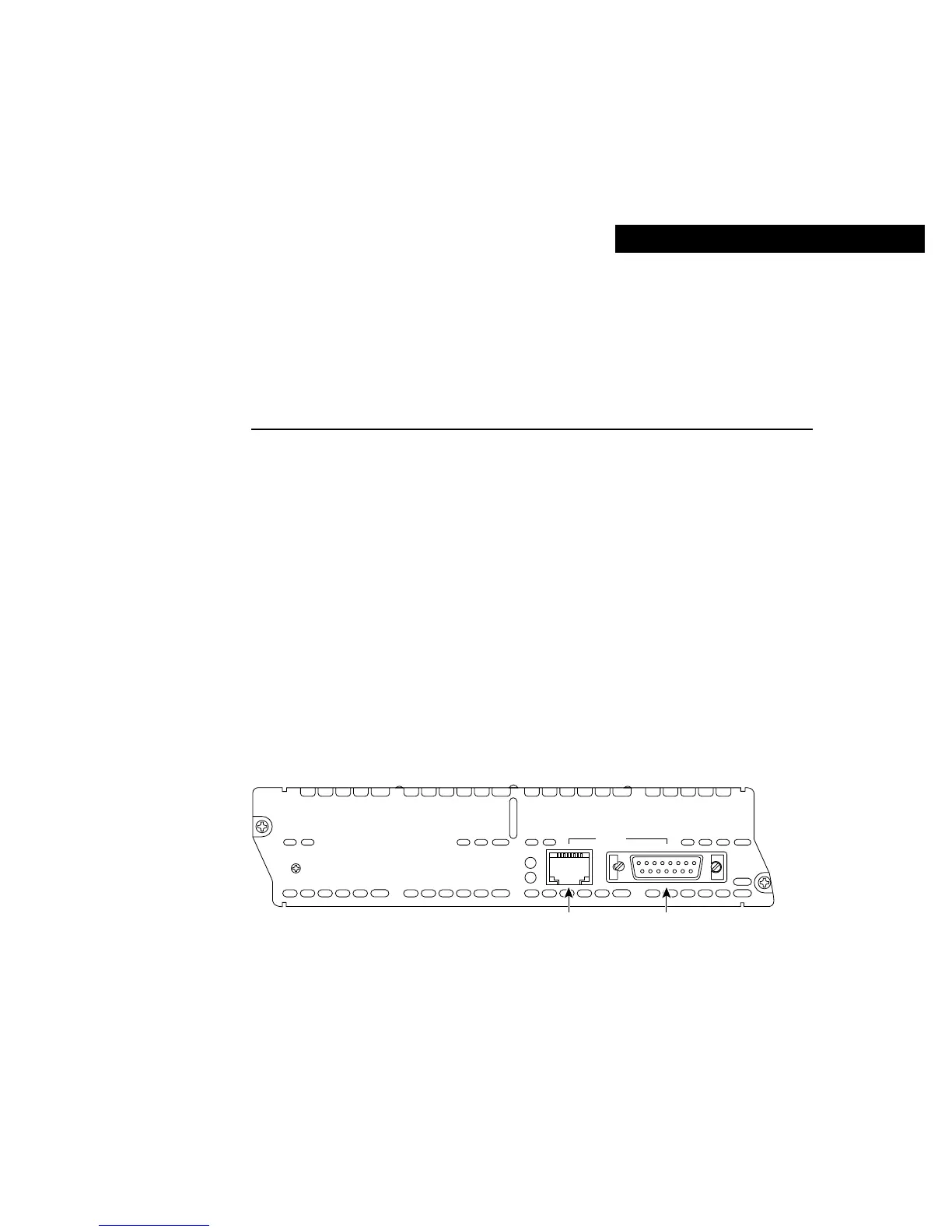

Figure 4-1 1-Port Ethernet Network Module
EN
ETH 0
ETHERNET
1E
ACT
LINK
H9251
10BaseT
port
AUI
port

Cisco 3600 Series Specifications

General

Operating System	Cisco IOS
Series	3600
Type	Modular Router
Interfaces	Ethernet, Fast Ethernet, Serial, ISDN
Routing Protocols	RIP, OSPF, EIGRP, BGP, IS-IS
Redundancy	Optional redundant power supply
Management	CLI, SNMP, Telnet
Weight	Varies depending on the specific model
Power Supply	AC or DC, optional redundant power supply
