Connecting Ethernet Network Modules to a Network 4-5
1-Port Fast Ethernet Module

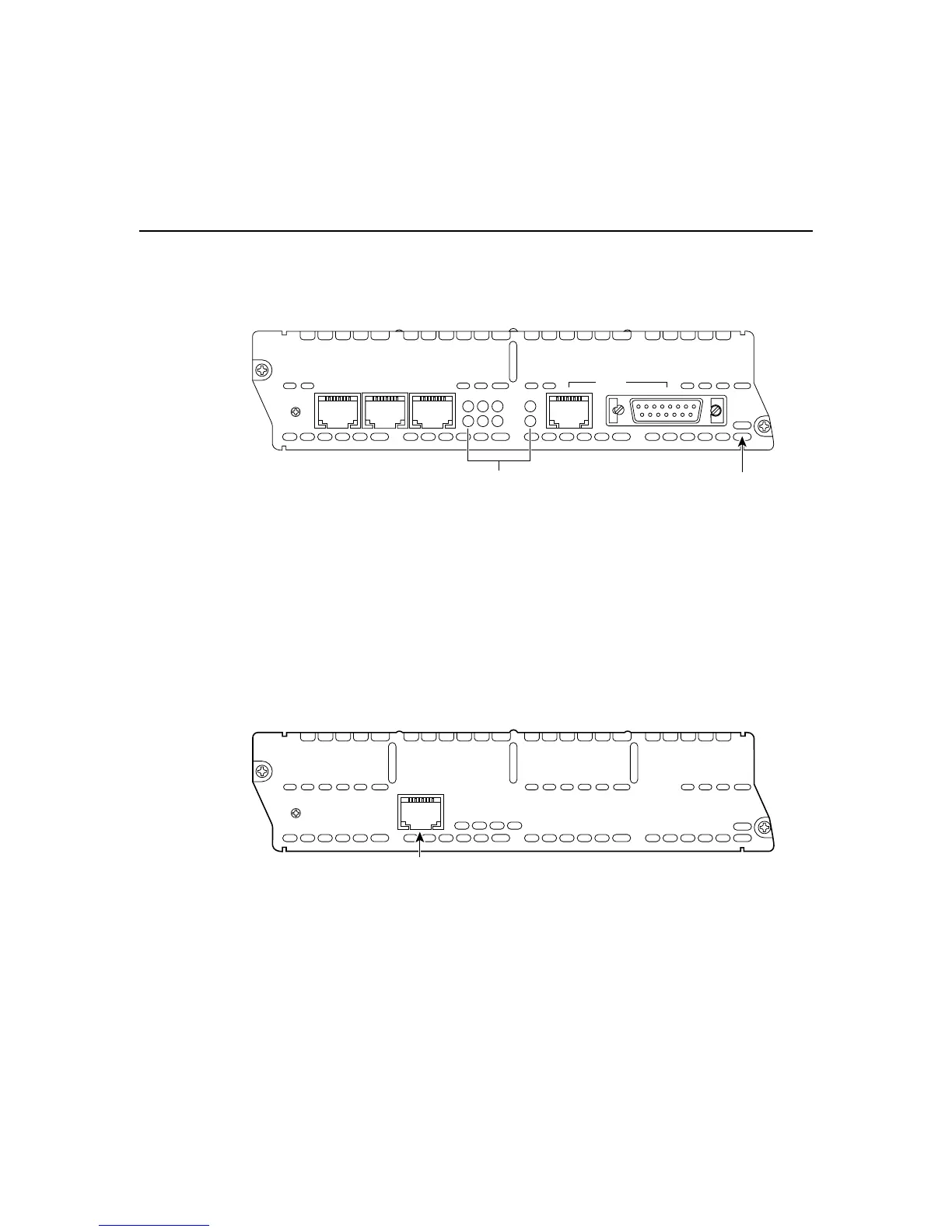

Figure 4-5 Ethernet Network Module LEDs (Typical)
1-Port Fast Ethernet Module
This section provides information about the 1-port Fast Ethernet network module (Cisco
product number NM-1FE-TX) for Cisco modular routers. (See Figure 4-6.) This module
enables the router to connect to 100-Mbps Ethernet networks and create high-speed
communication links between network devices.
Figure 4-6 1-Port Fast Ethernet Network Module
H9254
EN
ETH 0ETH 3
ETHERNET
4E
ETH 2 ETH 1
123
ACT
LINK
0
LEDs Enable
LED
EN
10/100 bTX
FAST ETHERNET
1FE
C0L LINK 100 MBPS FULL DPLX
H9981
RJ-45 port

Cisco 3600 Series Specifications

General

Operating System	Cisco IOS
Series	3600
Type	Modular Router
Interfaces	Ethernet, Fast Ethernet, Serial, ISDN
Routing Protocols	RIP, OSPF, EIGRP, BGP, IS-IS
Redundancy	Optional redundant power supply
Management	CLI, SNMP, Telnet
Weight	Varies depending on the specific model
Power Supply	AC or DC, optional redundant power supply
