Cisco 2900 Series and 3900 Series
Hardware Installation Guide
OL-18712-03
Chapter
5 Installing and
Up
grading Internal Modules and FRUs
Locating Internal Modules
Figur
e

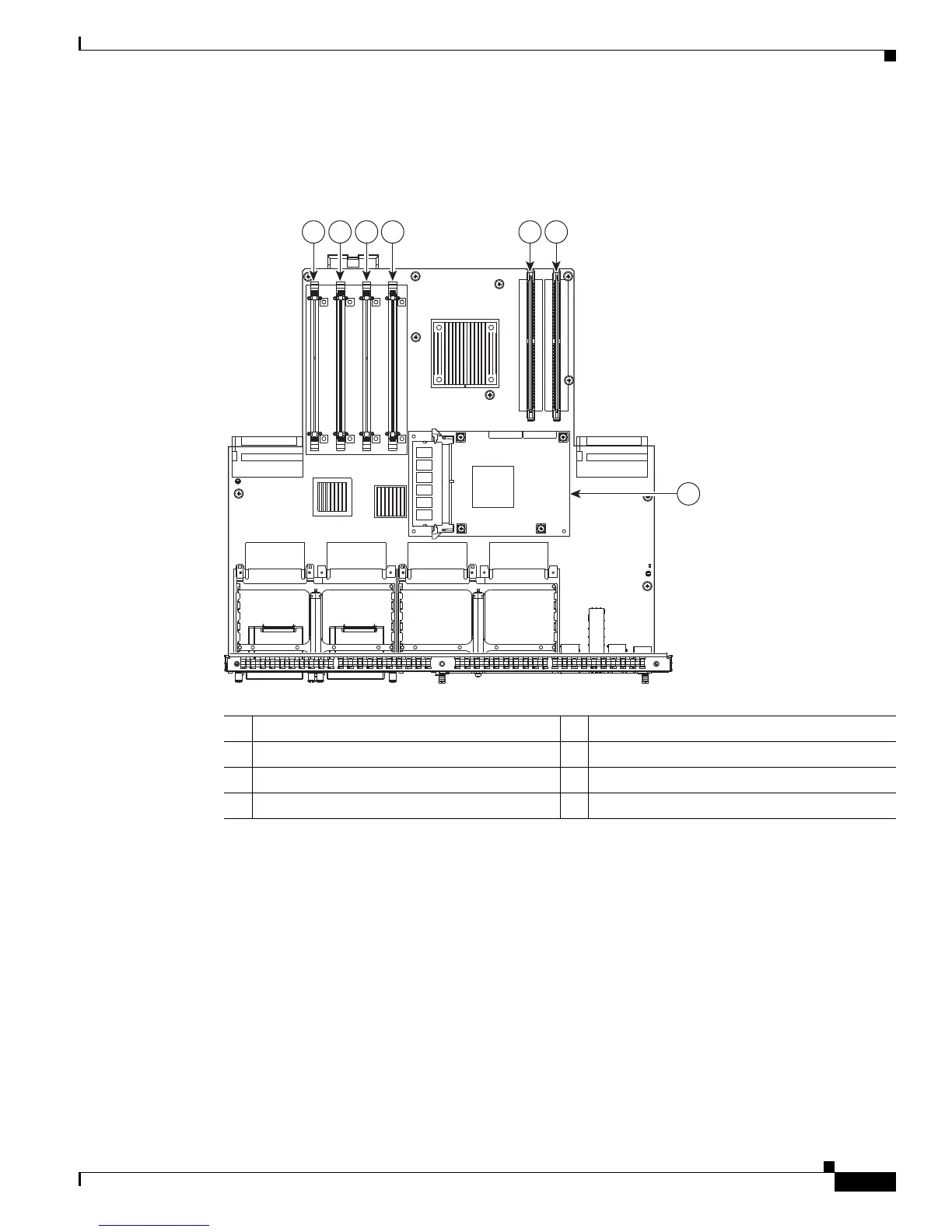

5-6
Module Locations in
Cisco 3925 and Cisco 3945
Router
1
PVDM3 0
2
PVDM3 1
3
PVDM3 2
4
PVDM3 3
5
DIMM 0 socket
6
DIMM 1 socket
7
ISM
250955
1
7
2
3
6
5
4
162
164
