Hardware Installation Guide for Cisco 4000 Series Integrated Services Routers
OL-32185-02
Chapter 6 Install and Upgrade Internal Modules and FRUs
Locate Internal and External Slots
Locate Internal and External Slots for Modules on Cisco 4351 ISR

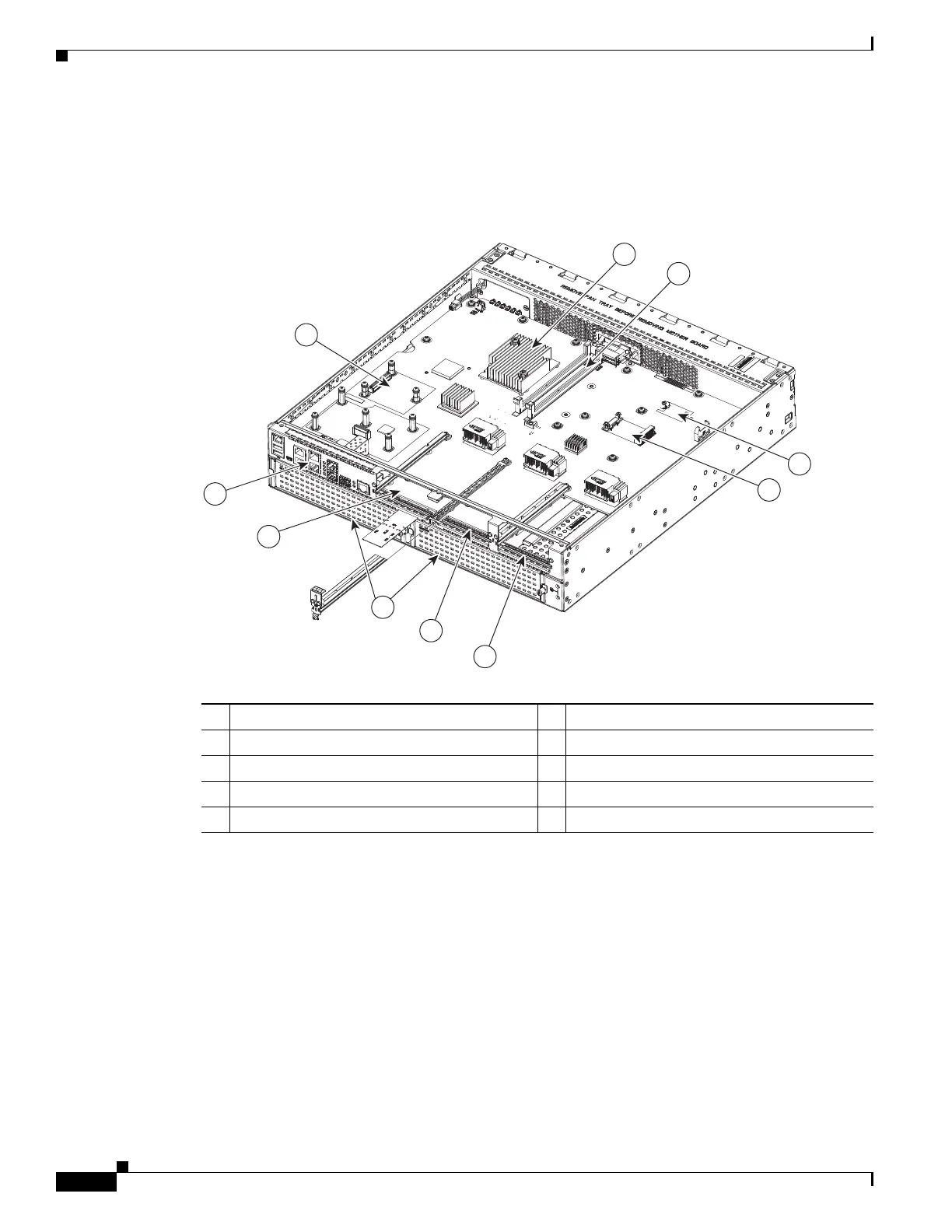

Figure 6-3 shows an internal view of Cisco 4351 ISR chassis with all the parts and module location.
Figure 6-3 Module Locations in Cisco 4351 ISR chassis
391829
7
5
8
6
9
10
1
2
3
4
1 CPU 2 DIMMs
3 Flash memory card connector 4 SSD mSATA connector
5 NIM slot 3 6 NIM slot 2
7 SM-X slots 8 NIM slot 1
9 RJ-45 GE ports 10 ISC slot

Cisco 4321 ISR Specifications

General

Form Factor	Rack-mountable
Flash Memory	4 GB
Operating Temperature	0°C to 40°C
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Console Port	RJ-45
Auxiliary Port	1x RJ-45
Memory	4 GB
Expansion Slots	1x SM
Storage Temperature	-20°C to 65°C
Humidity	10 - 85% (non-condensing)
Features	VPN support, Firewall, QoS
Remote Management Protocol	SNMP, CLI
Network/Transport Protocol	IPv6
Maximum Throughput	50 Mbps
