Hardware Installation Guide for the Cisco 4000 Series Integrated Services Router
OL-32185-02
Chapter 1 Overview of Cisco 4000 Series ISRs
Chassis Views
Cisco 4451 ISR Chassis
Note Cisco 4451 ISR routers support these slot types:
- Network Interface Modules (NIMs)
- Service modules (SM-X, like SM-X-1T3/E3)
- E-Series Server Modules
Figure 1-1 on page 1-7—Bezel view with two PSUs
Figure 1-2 on page 1-8—Back panel slots and ports
Figure 1-3 on page 1-9—Bezel side LEDs

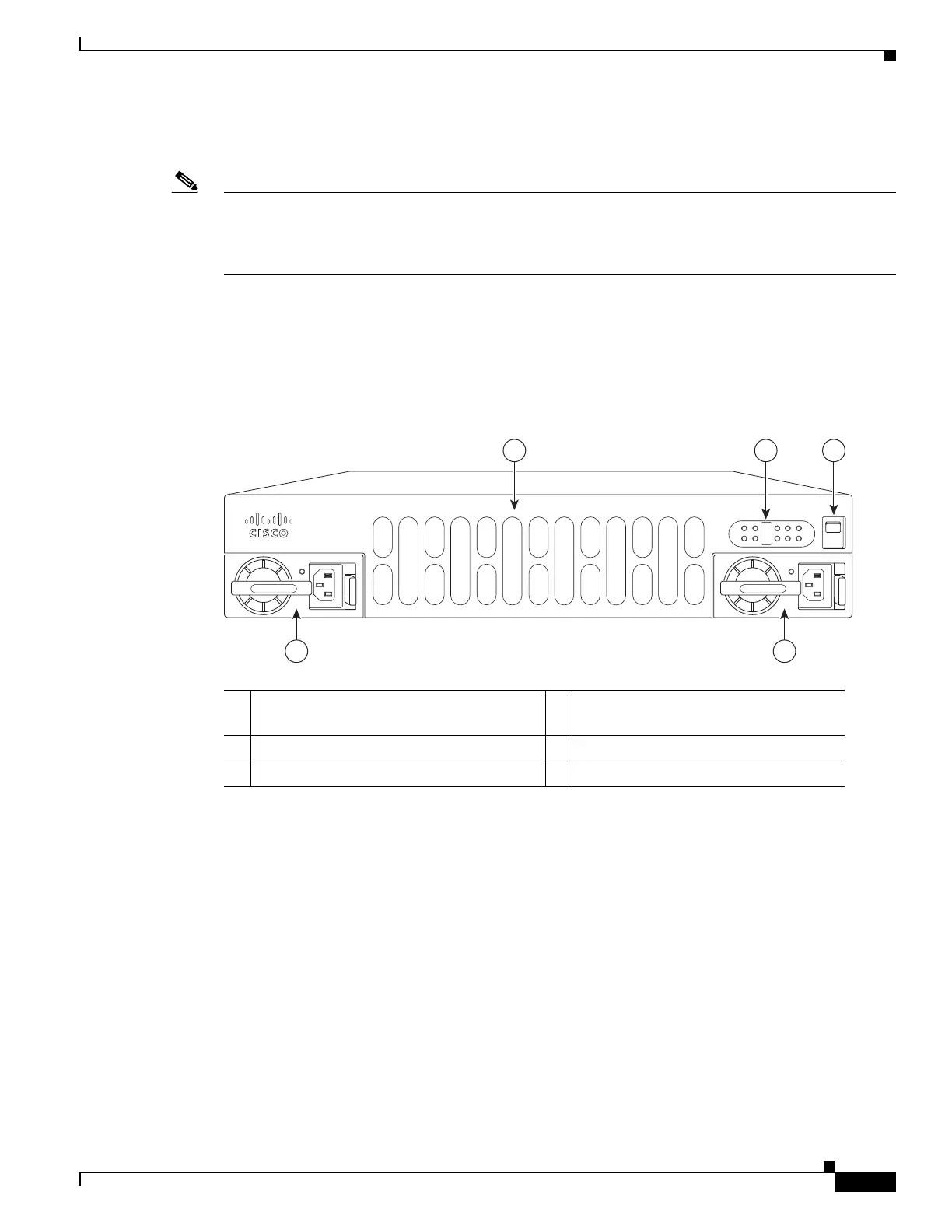

Figure 1-1 Bezel Side of Cisco 4451 ISR with Two PSUs
1 Router fan tray (hidden) behind removable
bezel
2 LEDs
3 Router power On/Off switch 4 AC power supply unit (PSU0)
5 AC power supply unit (PSU1)
Cisco 4400 Series
285695
PSU1 PSU2
POE1 POE2
FLASH TEMP PWR
VM FAN STAT
INT
POE
BOOST
1 2 3
54

Cisco 4321 ISR Specifications

General

Form Factor	Rack-mountable
Flash Memory	4 GB
Operating Temperature	0°C to 40°C
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Console Port	RJ-45
Auxiliary Port	1x RJ-45
Memory	4 GB
Expansion Slots	1x SM
Storage Temperature	-20°C to 65°C
Humidity	10 - 85% (non-condensing)
Features	VPN support, Firewall, QoS
Remote Management Protocol	SNMP, CLI
Network/Transport Protocol	IPv6
Maximum Throughput	50 Mbps
