Hardware Installation Guide for Cisco 4000 Series Integrated Services Routers
OL-32185-02
Chapter 6 Install and Upgrade Internal Modules and FRUs
Overview of the SSD Carrier Card NIM (NIM-SSD)

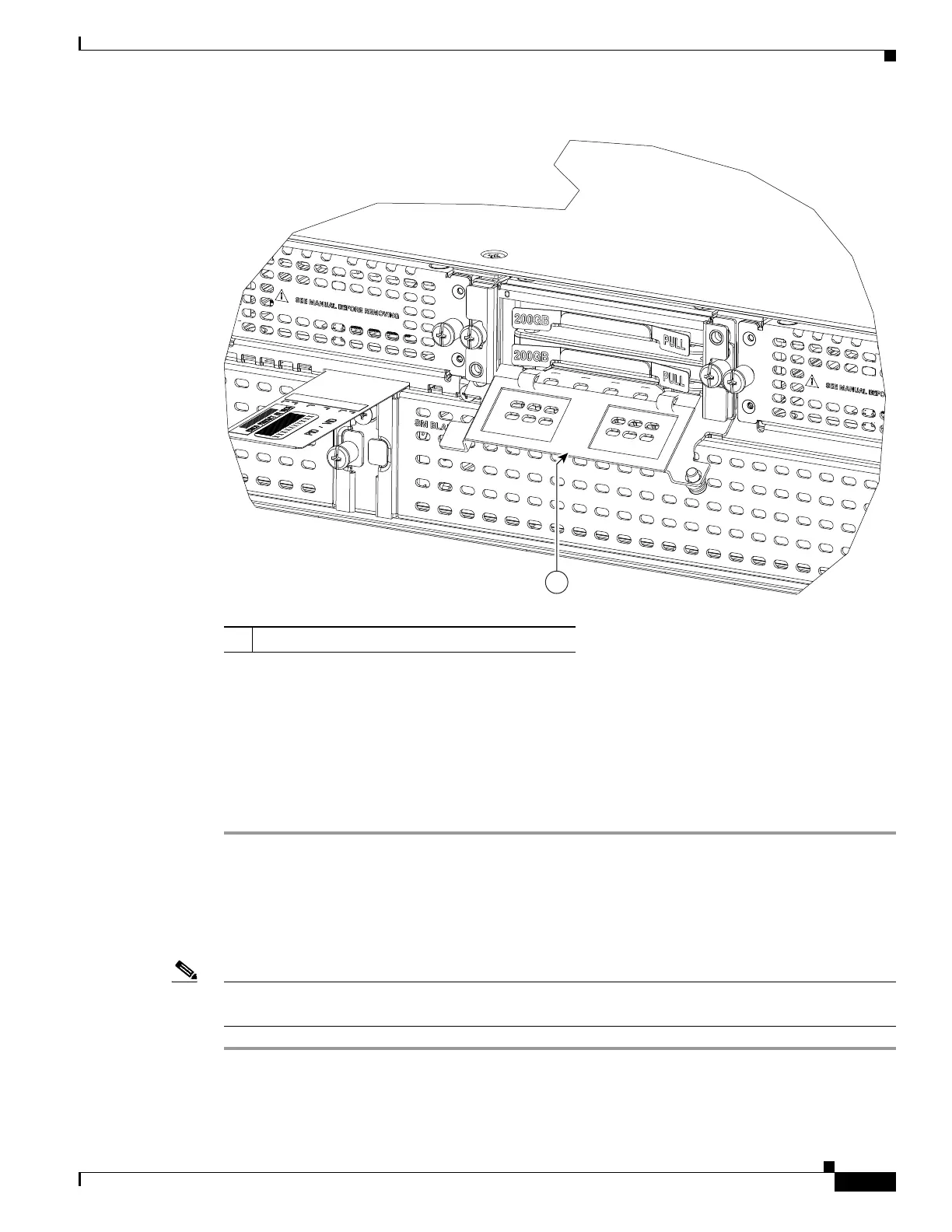

Figure 6-11 Opening the SSD Slot Cover
Step 3 Insert an SSD in the lower slot first.
Step 4 Insert the SSD connector end first with the connector side down and serial number facing up
(Figure 6-8).
Step 5 A second SSD may be inserted in the upper slot as shown in Figure 6-9.
Step 6 Rotate the SSD card slot cover up and place it over the SSDs.
Step 7 Tighten the captive fasteners on the SSD card slot cover.
Remove SSD Drives from the NIM-SSD
To remove the SSD cards from the NIM carrier:
Note Prior to removing the NIM-SSD card, power off the device using the hw-module subslot slot / subslot
stop command in EXEC mode.
Step 1 On the NIM-SSD, loosen the captive screws retaining the NIM-SSD slot cover.
Step 2 Rotate the SSD card slot cover down, exposing the slots that hold the SSDs.
347343
1
1 Carrier card slot cover

Cisco 4451 ISR Specifications

General

Form Factor	Rack-mountable
WAN Ports	4
Maximum Throughput	2 Gbps
Total onboard GE ports	4
NIM slots	2
ISM slots	1
Product Series	Cisco 4000 Series Integrated Services Routers
Operating System	Cisco IOS XE
Operating Temperature	32 to 104°F (0 to 40°C)
Memory	4 GB default, expandable to 16 GB
Flash Memory	8 GB
Model	4451 ISR
Network Interfaces	4 x Gigabit Ethernet
Storage Temperature	-4 to 149°F (-20 to 65°C)
Humidity	5 to 95% non-condensing
