Hardware Installation Guide for the Cisco 4000 Series Integrated Services Router
OL-32185-02
Chapter 1 Overview of Cisco 4000 Series ISRs
Chassis Views

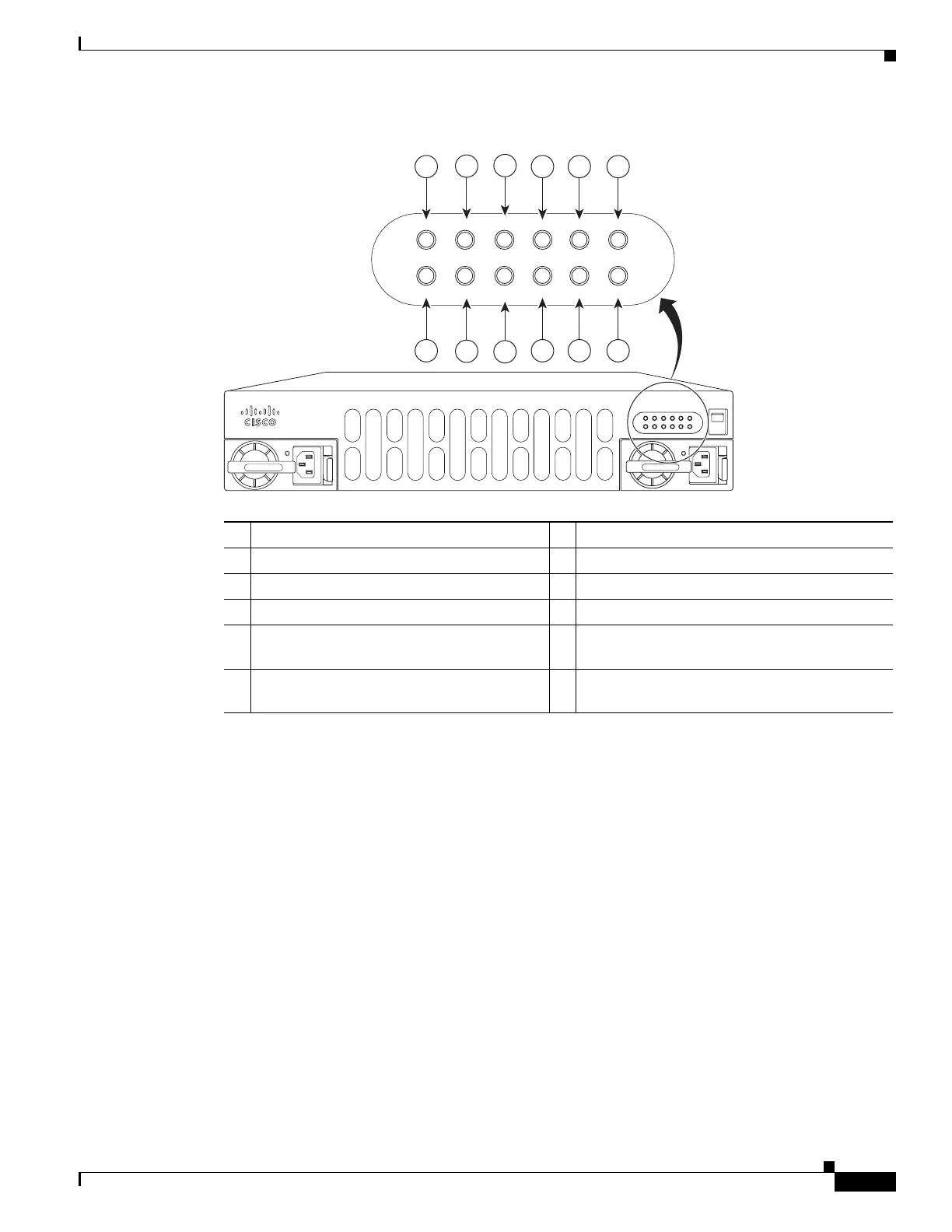

Figure 1-3 Bezel Side LEDS of the Cisco 4451 ISR Model
1 PSU0: Power supply unit 1 2 PSU1: Power supply unit 2
3 GE POE: Internal PoE daughter card status 4 FLASH: Compact flash status
5 TEMP: Temperature status 6 PWR: Power
7 STAT: System status 8 FAN: Fan status
9 ISC: Integrated Services Card status 1
0
POE BOOST: Power over Ethernet boost mode
11 POE 1: Power over Ethernet 1status 1
2
POE 0: Power over Ethernet 0 status
PSU0 PSU1 FLASH TEMP PWR
ISC
POE1
POE0
FAN
STAT
GE
POE
BOOST
285696
Cisco 4400 Series
PSU1 PSU2
POE1 POE2
FLASH TEMP PWR
VM FAN STAT
INT
POE
BOOST
PSU0 PSU1 FLASH TEMP PWR
ISC
POE1
POE0
FAN
STAT
GE
POE
BOOST
1
2
3
4 5 6
12
11
10
9 8
7

Cisco 4451 ISR Specifications

General

Form Factor	Rack-mountable
WAN Ports	4
Maximum Throughput	2 Gbps
Total onboard GE ports	4
NIM slots	2
ISM slots	1
Product Series	Cisco 4000 Series Integrated Services Routers
Operating System	Cisco IOS XE
Operating Temperature	32 to 104°F (0 to 40°C)
Memory	4 GB default, expandable to 16 GB
Flash Memory	8 GB
Model	4451 ISR
Network Interfaces	4 x Gigabit Ethernet
Storage Temperature	-4 to 149°F (-20 to 65°C)
Humidity	5 to 95% non-condensing
