Figure 7: Inserting a DIMM
6. Replace the chassis cover.
These are the steps to remove a DIMM:
1. Remove the chassis cover.
2. Locate the DIMM module on the device. Refer to the Chassis - Internal View section to identify and locate
the DIMM module.
3. Pull the latches away from the DIMM at both ends to lift the DIMM slightly. Pull the DIMM out of the
socket.

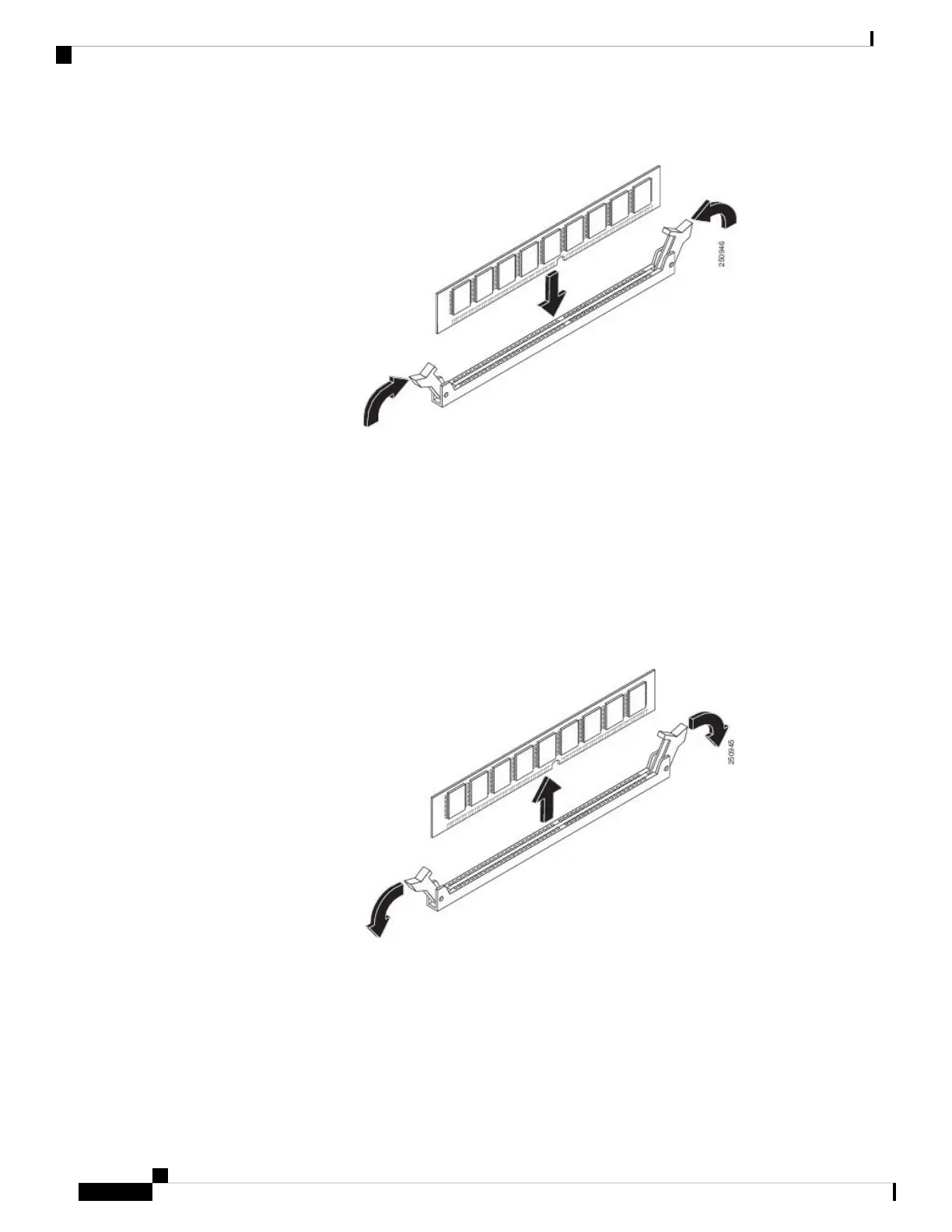

Figure 8: Removing a DIMM
4. Place the DIMM in an antistatic bag to protect it from ESD damage.
5. Replace the chassis cover.
Installing and Upgrading FRUs
6
Installing and Upgrading FRUs
Installing and Removing a DIMM
