Front-Panel Description

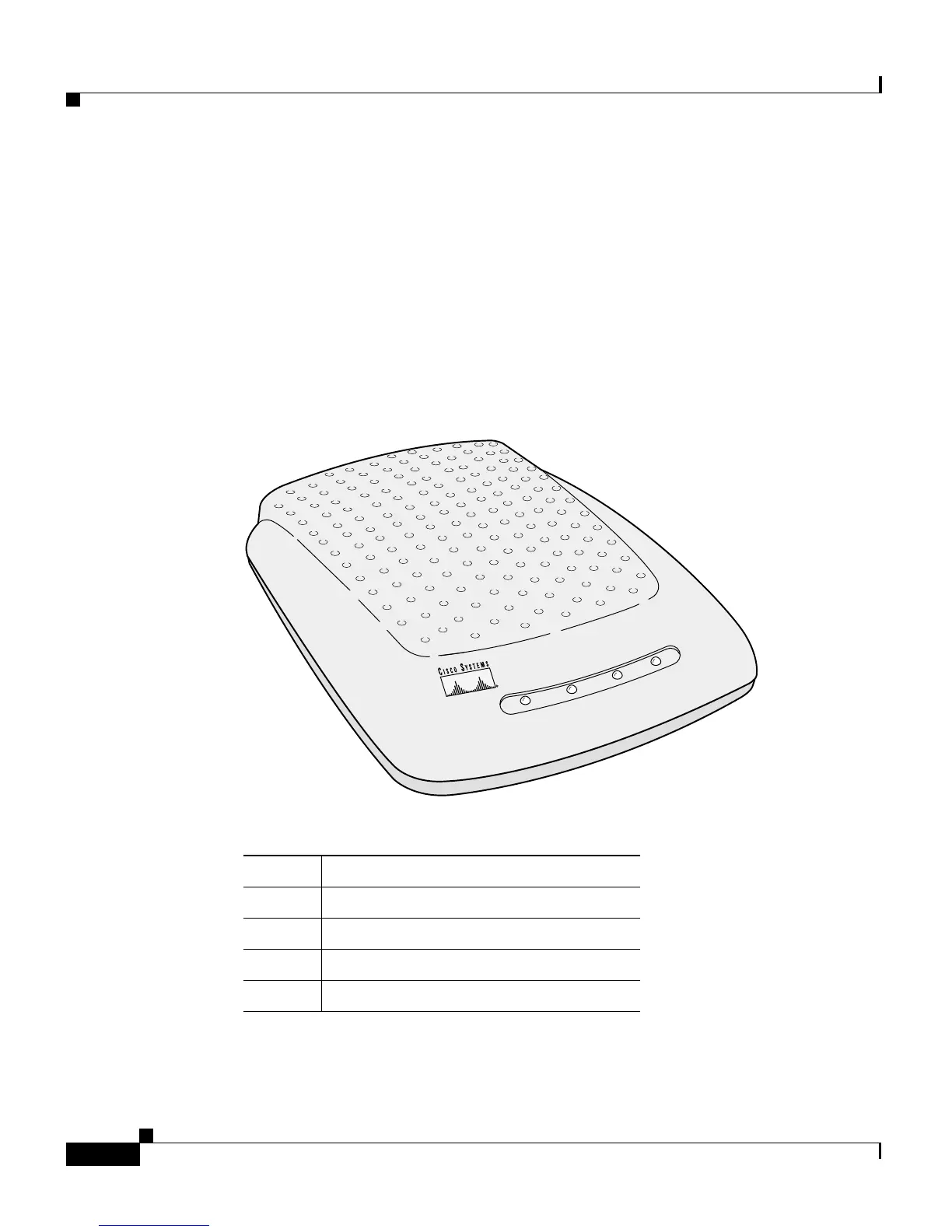

Figure 1-2 shows the front-panel of the CPE. Table 1-1 lists the front-panel LEDs
and their meanings.
Figure 1-2 Front-Panel of the CPE
Table 1-1 CPE Front Panel LEDs
LED Function
READY
LRElinktobaseswitchOK
ACT
Ethernet activity
ETH
Ethernet link OK
POWER
Power indicator
Cisco 575 LRE
ACT
READY
POWER
ETH
