Cisco 575 LRE CPE - WALL Port

Appendix B Connector and Cable Specifications
Connector Specifications
B-2
Cisco 575 LRE CPE Hardware Installation Guide
78-11469-01

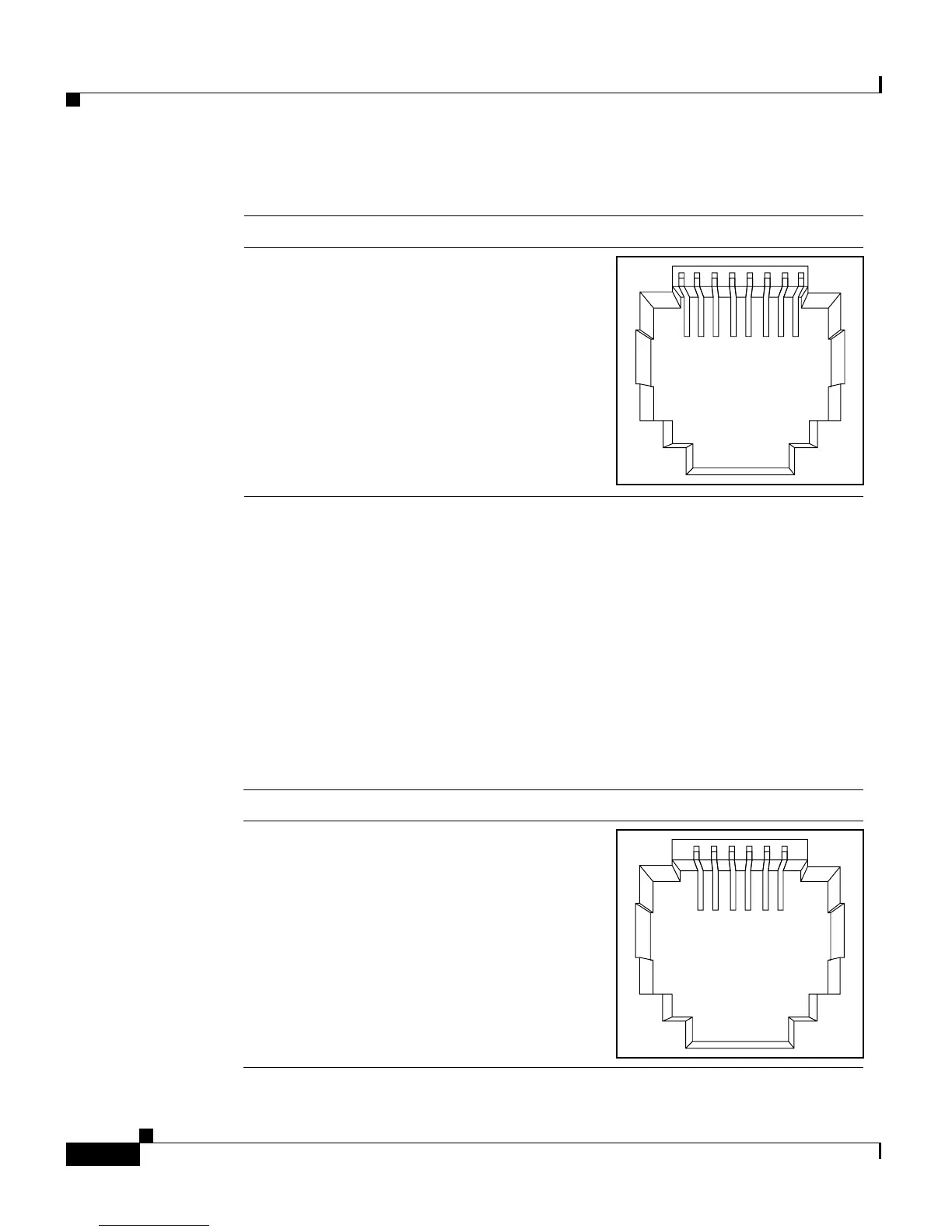

Figure B-2 RJ-45 Connector Pinouts
When connecting the ENET port to a PC or laptop, you must use a
straight-through cable wired for 10BASE-T or 100BASE-T. Figure B-5 shows the
straight-through cable schematics.
WALL Port
The WALL port uses an RJ-11 telephone connector to connect to the LRE signal.
See Figure B-3 for the connector pinouts.
Figure B-3 RJ-11 WALL Port Connector Pinouts
54968
231 45678Pin Label
1
2
3
4
5
6
7
8
RD+
RD-
TD+
NC
NC
TD-
NC
NC
123456
54516
Pin Label
1
2
3
4
5
6
Pass-through 1
Pass-through 2
LRE tip
LRE ring
Pass-through 5
Pass-through 6
