Cisco 700 series Quick Start Guide

2
78-10157-01
Verify the PC Setup
Before you begin, verify that each computer that will be connected to the computer has a network
interface card (NIC) installed and TCP/IP loaded.

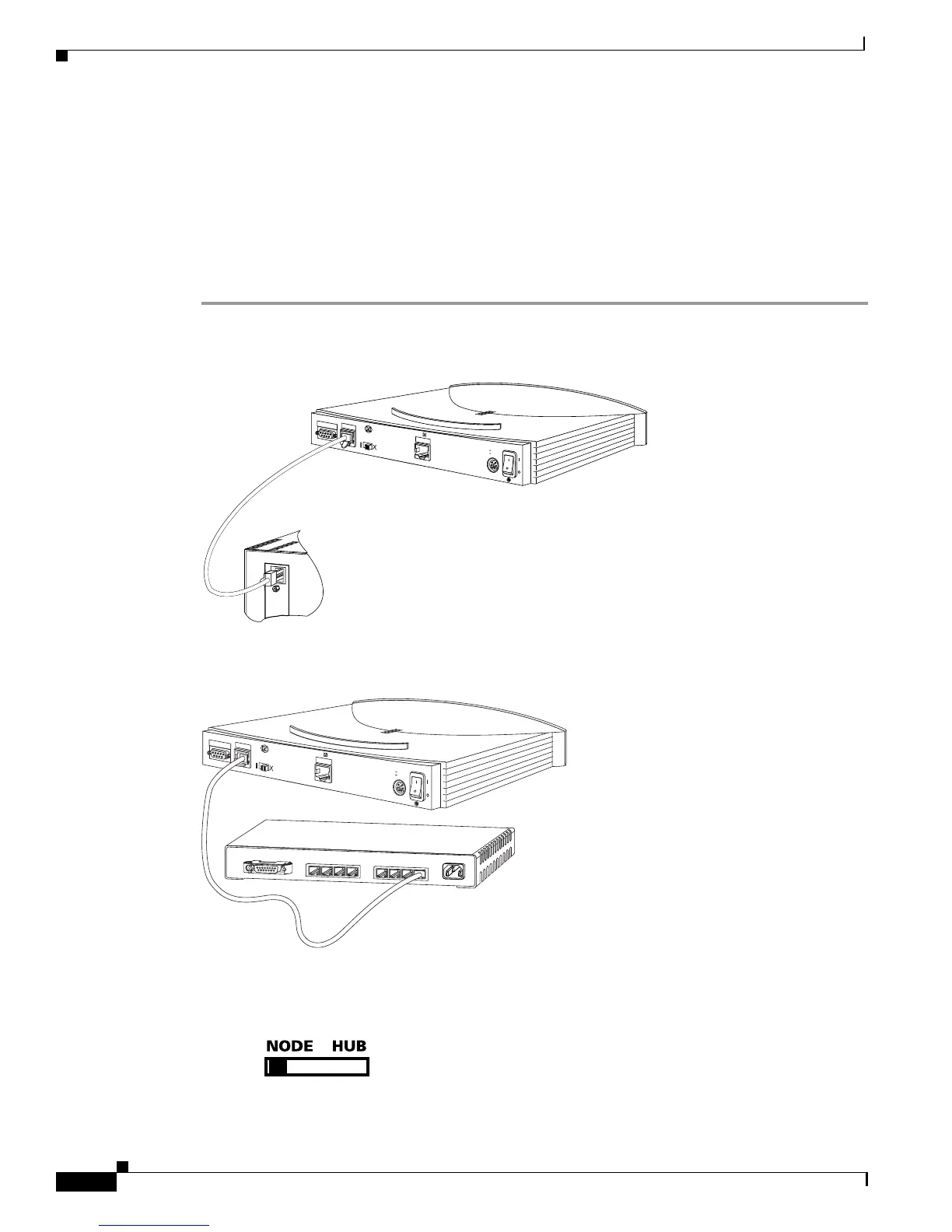

Connect a 760 Series Router to a PC or Hub
Step 1 If you are connecting the router to a computer, connect the yellow Ethernet cable from the yellow
Ethernet port on the rear panel of the router to the Ethernet port on the network interface card on the
computer.
If you are connecting the router to a hub, connect the yellow Ethernet cable from the yellow Ethernet
port on the rear panel of the router to an Ethernet port on the hub.
Step 2 If you are connecting the router to a computer, to a hub, set the node-hub switch to the “NODE”
position and connect the computers to the hub as described in the documentation provided with your
hub.
CONFIG
+5V ---1.5A +/-5%
-30V--- 0.2A +/-25%
S
0
ISDN S/T
CISCO 776
10BASET
NODE
HUB
30046
CONFIG
+5V ---1.5A +/-5%
-30V--- 0.2A +/-25%
S
0
ISDN S/T
CISCO 776
10BASET
NODE
HUB
30047

Cisco 700 series Specifications

General

Wireless	No
Compression	No
WAN Ports	1
Weight	0.48 kg
Power Supply	External
Category	Network Router
