Cisco 7916 Phone Guide

9
Connect the Support Bar to the Cisco Unified
IP Phone
Refer to Figure 3 and the steps that follow.

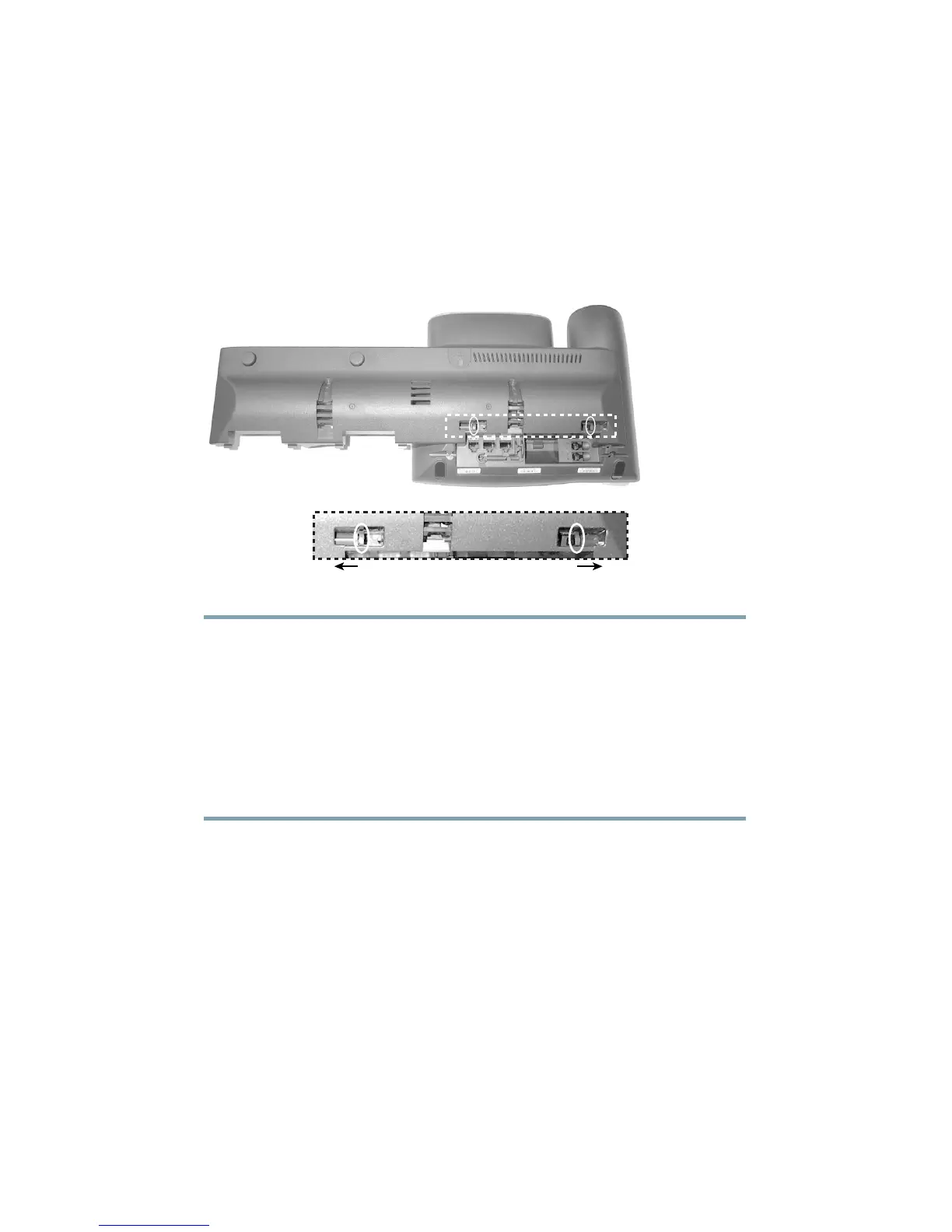

Figure 3 Connecting the Support Bar
140969
140969
Step 1 Position the support bar on the back of the
Cisco
Unified IP Phone so that it fits flush with the
phone.
Step 2 Locate the two connector pins.
Step 3 Use a flat head screwdriver to carefully push each of the
connector pins so that the support bar is firmly fastened
to the Cisco
Unified IP Phone.
Connect the Expansion Module 7916 to the
Support Bar
Refer to Figure 4 and the steps that follow.
