Steps Description

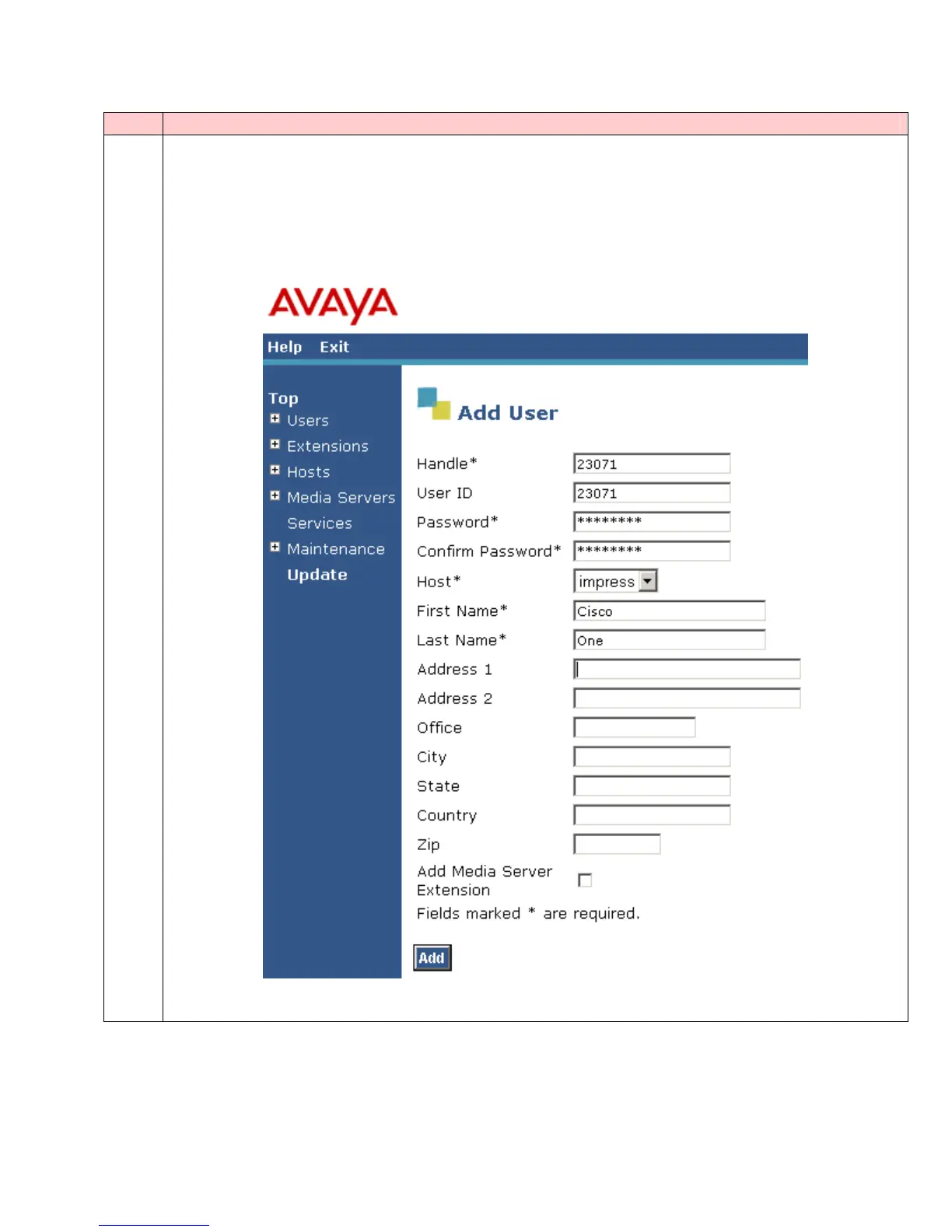

3. The Add User page will be displayed. Fill in the required fields (indicated by *). In the screen
below, the user corresponding to a Cisco 7960 SIP telephone is being added. Enter the extension
number in the Handle and User ID fields. The Host field should be set to the name of the
Converged Communications Server Home or Home/Edge server to which the user’s phone will
register. In this configuration, there is only one Home/Edge Converged Communications Server,
so the default value is shown (“impress”).
Click on Add.

Cisco 7940 Specifications

General

Lines	2
Protocol Support	SIP, SCCP
Audio Codec Support	G.711, G.729a
Ethernet Ports	2 x 10/100 Ethernet ports
Power Options	PoE or external power supply
Dimensions	8 H x 10.5 W x 6 D (inches)
