Cisco Integrated Services Router Hardware Installation Guide
Chapter 1 Product Overview
Cisco 860, 880, 890 Series

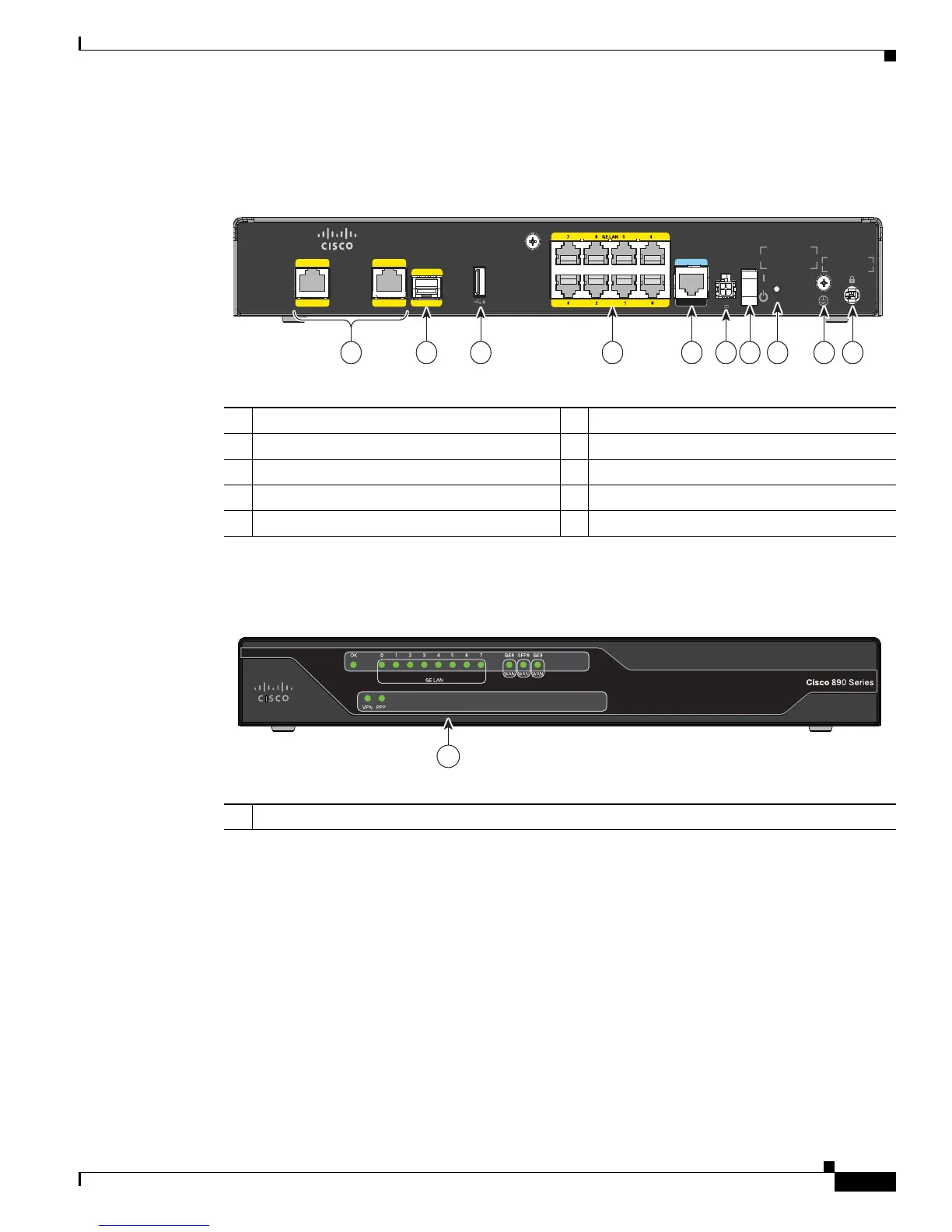

Figure 1-59 shows the back panel of the Cisco 892FSP Router.
Figure 1-59 Back Panel of the Cisco 892FSP Router
Figure 1-60 shows the front panel of the Cisco 892FSP Router.
Figure 1-60 Front Panel of the Cisco 892FSP Router
9
GE W A N
8
GE W A N
SFP
8
12VD C 2.5A
CONSOLE
AUX
RESE T
Cisco 892FSP
284781
2 3 4 5 6 8 9 1071
1 GE WAN interface 6 Power connector
2 SFP port 7 On/Off switch
3 USB port 8 Reset button
4 8-port Gigabit Ethernet switch 9 Earth ground connection
5 Console/Auxiliary port 10 Kensington security slot
284782
1
1 LEDs
