Cisco Integrated Services Router Hardware Installation Guide
Chapter 1 Product Overview
Cisco 860, 880, 890 Series

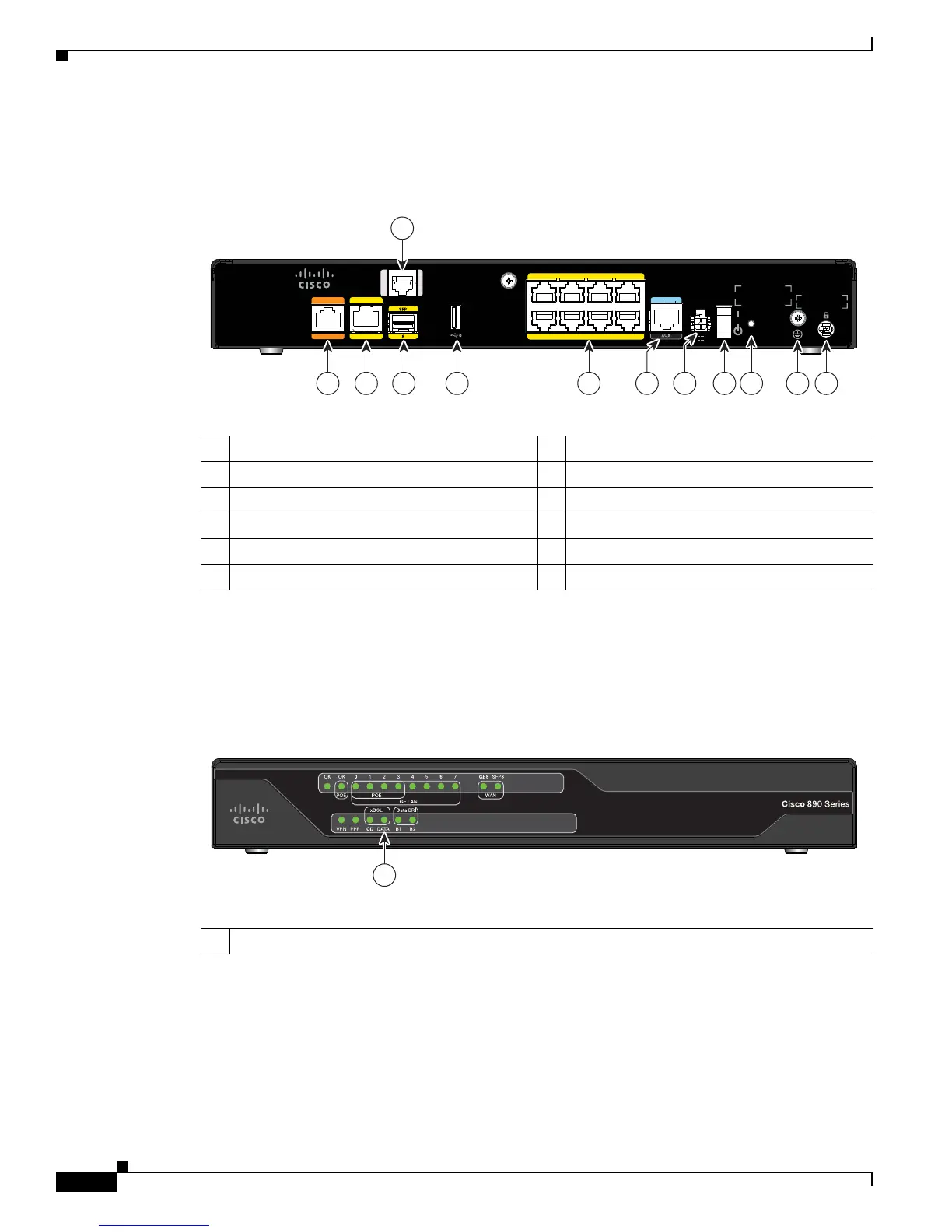

Figure 1-61 shows the back panel of the Cisco 896VA Router.
Figure 1-61 Back Panel of the Cisco 896VA Router
Figure 1-62 shows the front panel of the Cisco 896VA and the Cisco 897VA routers.
Figure 1-62 Front Panel of the Cisco 896VA and Cisco 897VA Routers
7 6 GELAN 5 4
3 2 POE 1 0
0
ISDN
8
GE WAN
54VDC 1.2A
12VDC 2.5A
VDSL/ADSL
overISDN
CONSOLE
RESET
Cisco 896VA
12
1 2 3 4 5 8 9 10 11
6 7
344766
1 ISDN 7 Power connector
2 GE WAN interface 8 On/Off switch
3 SFP port 9 Reset button
4 USB port 10 Earth ground connection
5 8-port Gigabit Ethernet switch
1
11 Kensington security slot
6 Console/Auxiliary port 12 VDSL / ADSL over ISDN
1. Ports 0 through 3 can be configured as POE, which is an optional feature for this model. If this feature is not configured with
the factory order, you must order and install it to enable the PoE function.
1 LEDs
