Cisco 860VAE Series User Manual

1-13
Cisco Integrated Services Router Hardware Installation Guide
Chapter 1 Product Overview
Cisco 810 Series

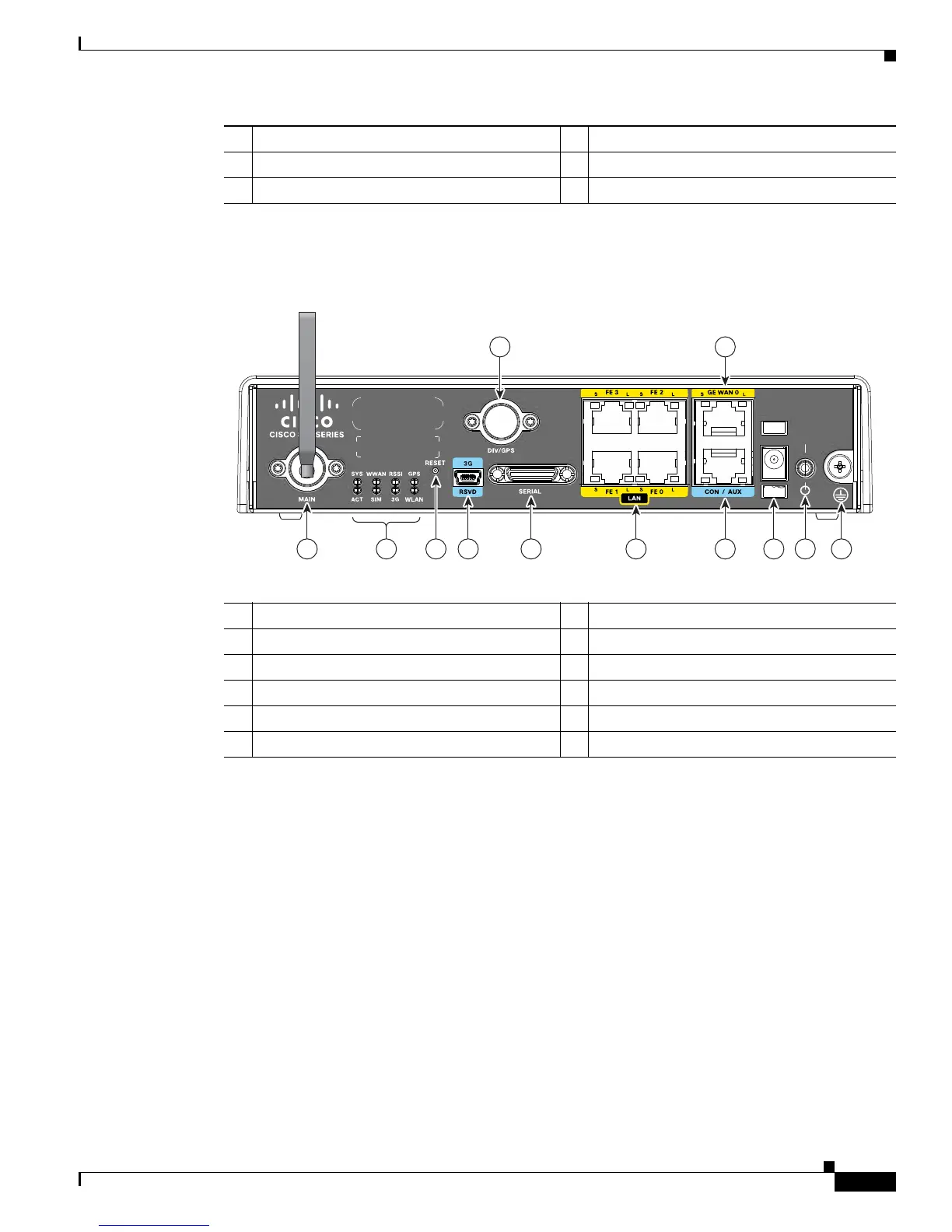

Figure 1-8 shows the front panel details of the Cisco 819HGW ISR.
Figure 1-8 Cisco 819HGW ISR Front Panel
4 3G mini-USB diagnostic port 10 5 VDC molex power input
5 Diversity/GPS antenna 11 Power switch
6 12-in-1 serial port 12 Ground
344077
21 43 6 7 9 10 11 12
5 8
1 3G main antenna 7 FE ports
2 LEDs 8 GE WAN port
3 Reset button 9 Console/Aux port
4 3G mini-USB diagnostic port 10 5 VDC barrel-type power input
5 Diversity/GPS antenna 11 Power switch
6 12-in-1 serial port 12 Ground

Cisco 860VAE Series Specifications
