Chapter 1 Product Overview
Cisco 810 Series

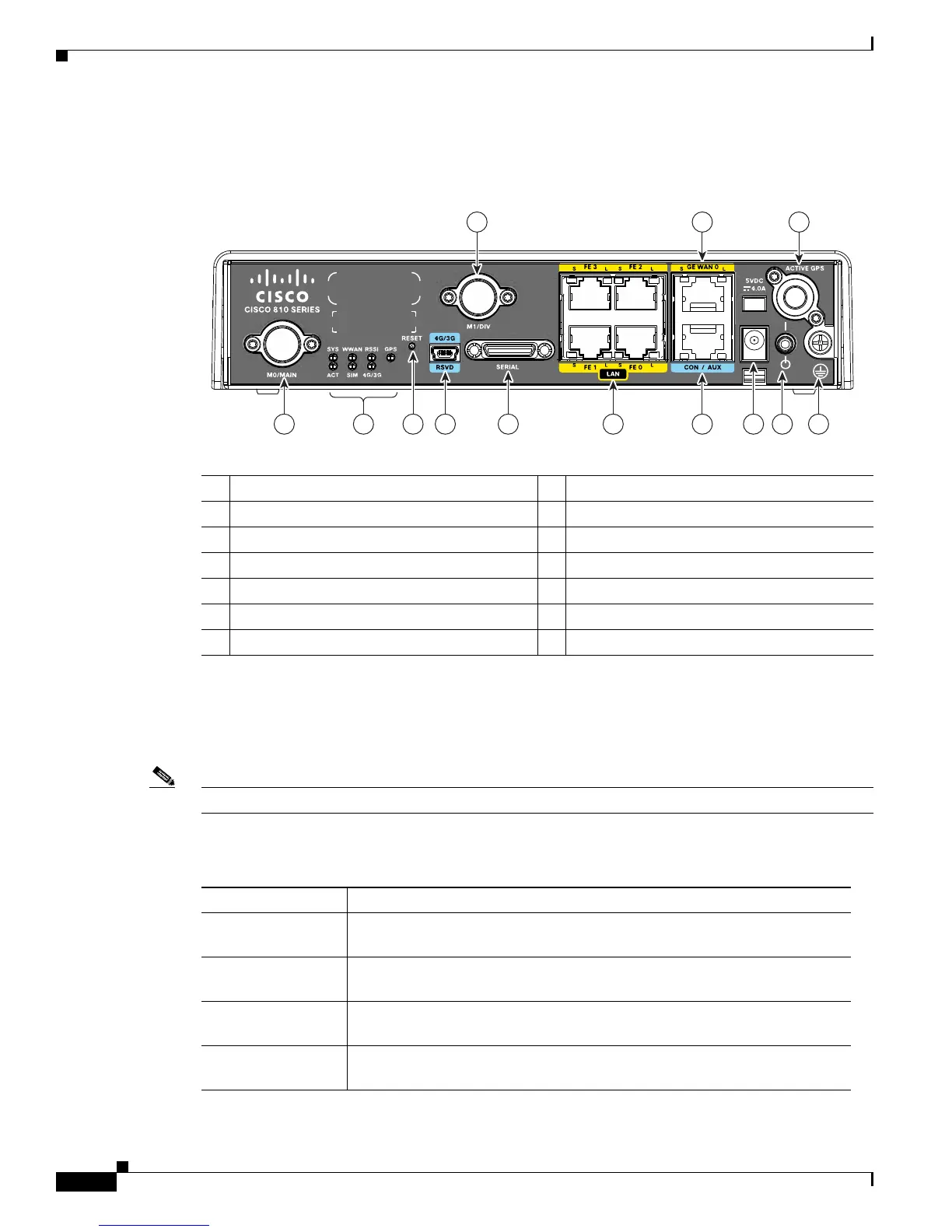

Figure 1-9 shows the front panel details of the Cisco 819 4G LTE ISR.
Figure 1-9 Cisco 819 4G LTE ISR Front Panel
SKU Information
Table 1-4 lists the different 3G SKUs available for the Cisco 819HG and Cisco 819G ISRs. All SKUs
support external antenna.
Note WLAN is not supported.
285447
1 43 6 7 9 10 11 13
5 128
2
1 4G antenna connector—M0/MAIN 8 GE WAN port
2 LEDs 9 Console/Aux port
3 Reset button 10 Power input
4 4G/3G port 11 Power switch
5 4G antenna connector—M1/DIV 12 Active GPS antenna connector
6 Serial port 13 Ground
7 FE ports
Table 1-4 Supported 3G SKUs for Cisco 819HG and Cisco 819G ISRs
SKU ID Description
C819HG+7-K9 Compact Hardened 3G IOS Router with Global HSPA + Release 7 based on
MC8705
C819HG-U-K9 Compact Hardened 3G IOS Router with GLOBAL HSPA Release 6 based on
MC8795V
C819HG-V-K9 Compact Hardened 3G IOS Router with Verizon EVDO Rev A based on
MC5728V
C819HG-S-K9 Compact Hardened 3G IOS Router with Sprint EVDO Rev A based on
MC5728V
