2-32
Cisco Integrated Services Router Hardware Installation Guide
Chapter 2 Installing the Router
Installing the Cisco 810 ISR
Installing the Router Using the Configurable Low Profile DIN Mount
If space is limited between the DIN rail and the enclosure cover, the Configurable Low Profile DIN
Mount can be utilized to mount the router flat against the DIN rail. It can also be configured in three
different ways to allow router cabling to exit from the bottom, right or left.

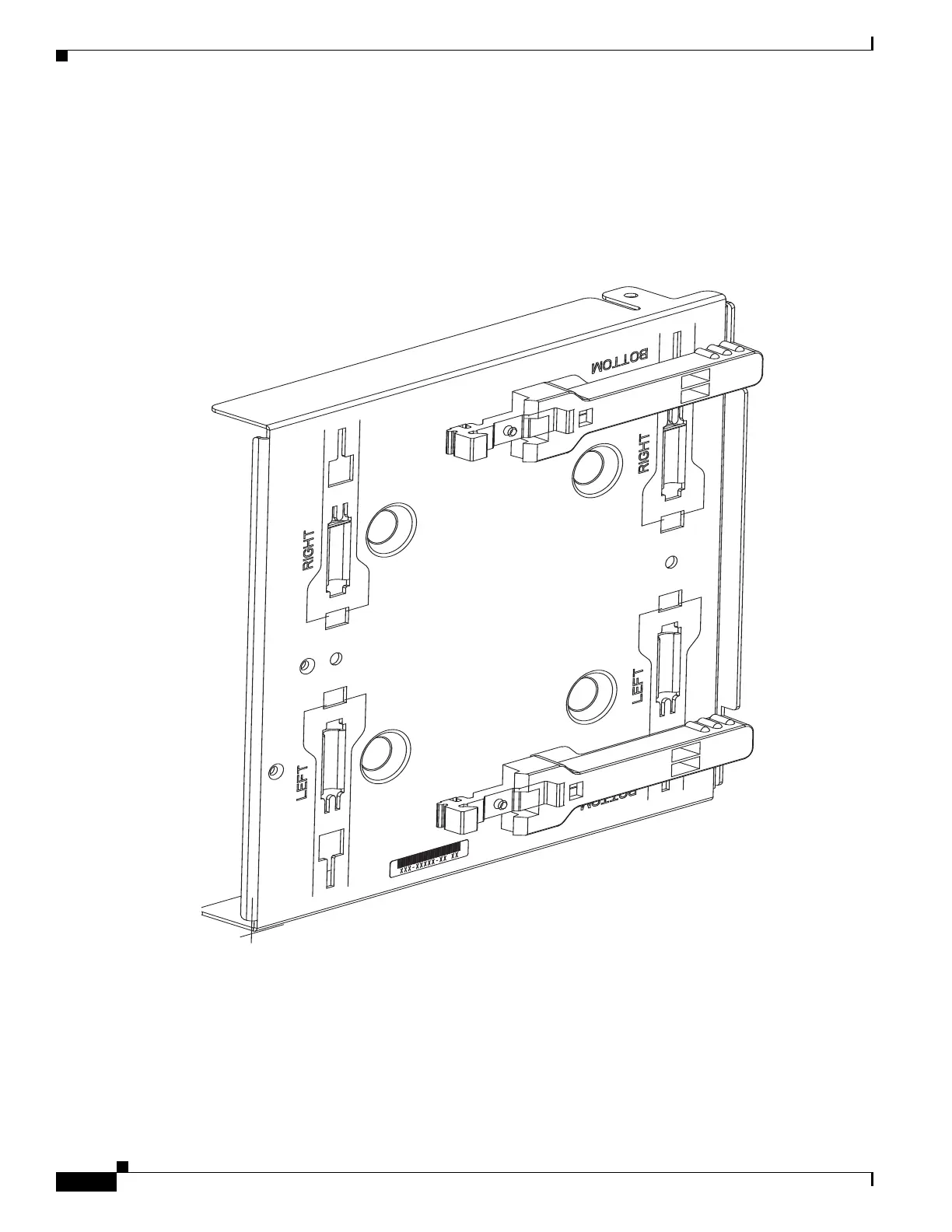

Figure 2-30 Configurable Low Profile DIN Mount standard configuration
391198

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Cisco 867VAE-K9 and is the answer not in the manual?

Cisco 867VAE-K9 Specifications

General IconGeneral
Device TypeRouter
USB Ports1 x USB 2.0
DRAM256 MB
Flash Memory256 MB
Operating Temperature32 °F to 104 °F (0 °C to 40 °C)
LAN Interfaces4 x 10/100 Ethernet
Routing ProtocolsBGP, OSPF, EIGRP, RIP
Security FeaturesFirewall, VPN
Operating Humidity10% to 85% non-condensing
Power SupplyExternal power adapter
Remote Management ProtocolSNMP, Telnet, SSH, HTTP, HTTPS
FeaturesQoS, VLAN, IPv6 support
WAN InterfacesVDSL2/ADSL2+
